Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS650 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 100w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Various Nozzles Spray Coater,Battery Electrodes Spray Coater,Ultrasonic Film Spray Coater |
||
Ultrasonic Film Spray Coater For Battery Electrodes With Various Nozzles
Description:
Ultrasonic Film Spray Coater for Battery Electrodes with Various Nozzles is a device that uses ultrasonic technology to achieve micrometer level coating thickness. During the spraying process, the droplet size and distribution are precisely controlled by the ultrasonic nozzle, allowing very small droplets and particles to evaporate quickly, resulting in particles with high specific surface area and forming a uniformly distributed thin film coating.
Ultrasonic Film Spray Coater for Battery Electrodes with Various Nozzles is widely used for precise coating of materials such as coatings, inks, adhesives, etc. Its high efficiency, environmental protection, and high precision make it an indispensable spraying solution in modern manufacturing industry.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

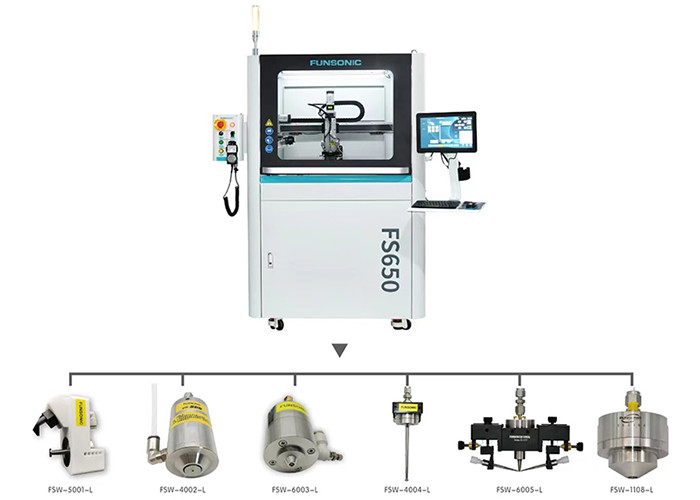

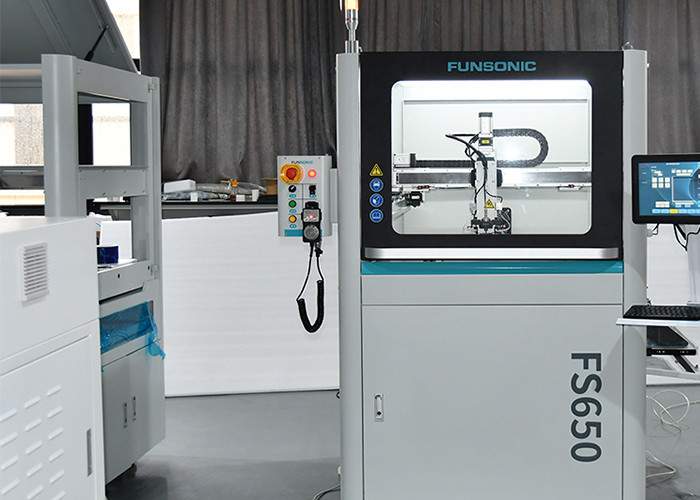

Benchtop Ultrasonic Spray Coating Machine FS650 |
| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W | 1-15W | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | 2-100mm | 2-100mm | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |

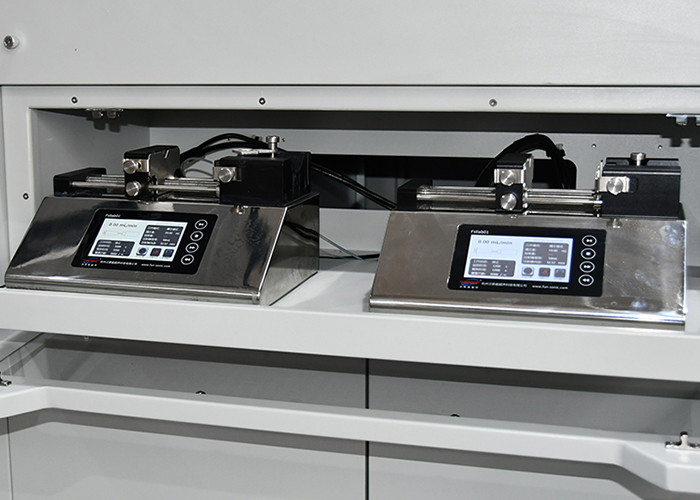

| Liquid Supply Method | Precision injection pump | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
The influencing factors of ultrasonic spraying:
1. High precision coating
Ultrasonic nozzles can accurately control the spraying amount and position of coatings
Ensure uniform coating of key components such as electrodes, membranes, etc
2. Fine atomized particles
Under the action of ultrasound, the coating is atomized into tiny particles at the micrometer level
Improve the density and adhesion of the coating, and reduce material loss
3. Low temperature coating
Adopting ultrasonic spraying technology at low temperature
Avoid coating damage and material performance degradation caused by high temperatures
4. Efficient production
Ultrasonic spraying speed is fast, greatly improving production efficiency
Reducing manual operations is beneficial for achieving automated production
5. Environmental protection and energy conservation
No need to use auxiliary power such as compressed air
Low noise, low energy consumption, in line with green manufacturing requirements
6. Suitable for various materials
Can be used to coat key components such as catalyst ink and ion membranes
Meet the production needs of different fuel cell technology routes
Overall, the precision spraying process of ultrasonic fuel cells has significant advantages in improving the performance and production efficiency of fuel cells, and is an important technical support for promoting the industrialization process of fuel cells
