Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS650Y |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | 100Khz Ultrasonic Spraying,Ultrasonic Spraying 100Khz,Anionic Proton Exchange Membrane Ultrasonic Spraying |
||
Anionic Proton Exchange Membrane Ultrasonic Spraying 100Khz
Description:

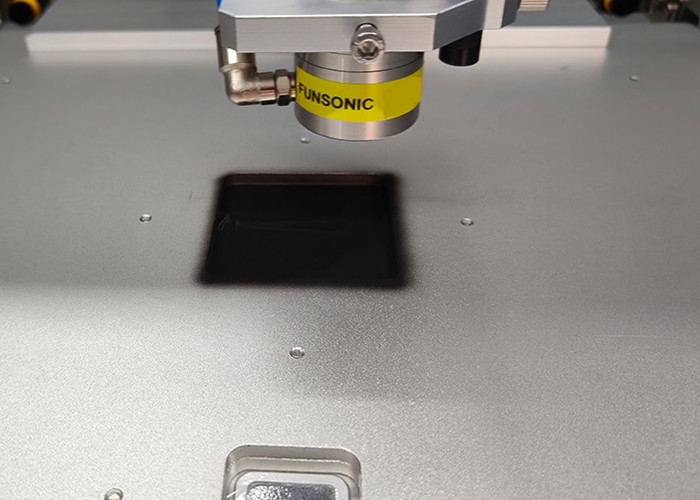

The principle of anionic membrane ultrasonic spraying technology is to use the vibration energy of ultrasound to evenly spray the coating on the surface of the workpiece in the form of small droplets. The vibration energy of ultrasound is converted into high-frequency vibration through a transducer, causing the coating to be atomized into small droplets under the action of ultrasound. These droplets are high-speed sprayed onto the surface of the workpiece under the action of the ultrasound atomization nozzle. Form a uniform coating on the surface of the workpiece.
Anionic membrane ultrasonic spraying technology is widely used in various fields, such as automotive manufacturing, shipbuilding, home appliance manufacturing, building decoration, etc. In the field of automobile manufacturing, this technology can be used for anti-corrosion and rust prevention treatment of automobile bodies and components, as well as exterior decoration; In the field of shipbuilding, this technology can be used for corrosion prevention and decoration in areas such as ship hulls and cabins; In the field of home appliance manufacturing, this technology can be used for the appearance decoration and protection of household appliances such as refrigerators and washing machines; In the field of architectural decoration, this technology can be used for the decoration and protection of materials such as glass curtain walls and marble.
Parameters:
| Product Type |
Automatic Flipping Ultrasonic Spray Coating Machine FS650Y |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Material of the contact solution part | SUS304, Titanium, PTFE |

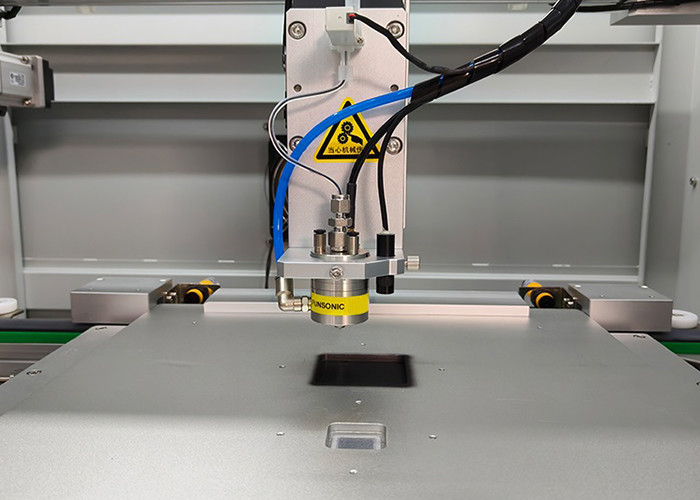

| Exercise Mode | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Horizontal automatic conveying mechanism+Automatic flipping machine |
| Control Mode | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Conveying Speed | 1-100mm/s |
Features :
1. Uniform coating: The anionic film ultrasonic spraying technology can evenly spray the coating on the surface of the workpiece, forming a layer of uniform coating, avoiding the phenomenon of stripes, spots, etc. caused by manual brushing or spraying.
2. Strong adhesion: Due to the use of ultrasonic vibration energy in anionic film ultrasonic spraying technology, the adhesion between the coating and the surface of the workpiece is tighter, and the adhesion is stronger, which can improve the durability and corrosion resistance of the coating.
3. High painting efficiency: The anionic membrane ultrasonic spraying technology adopts an efficient atomization device and automatic control system, which can achieve continuous operation, improve painting efficiency, and reduce manual operation time and labor costs.
4. Low surface requirements for workpieces: Anionic film ultrasonic spraying technology is suitable for workpieces of various materials, such as metal, glass, ceramics, etc. For workpieces with uneven surfaces or minor defects, a uniform coating can also be obtained through this technology.
5. Environmental protection and energy conservation: The anionic membrane ultrasonic spraying technology adopts low volatility coatings and closed operation methods, reducing the pollution of coatings to the environment and the harm to human health. Meanwhile, this technology can save paint usage, reduce energy consumption and production costs.
Anionic Proton Exchange Membrane Ultrasonic Spraying 100Khz
