Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS680 |
| Minimum Order Quantity: | 1 UNIT |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Intelligent Ultrasonic Precision Spraying Machine | Frequency: | 20-200Khz (Normally Use 60/100/110/120Khz) |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-50ml/min |
| Effective Spraying Width: | 600mm Or Expandable | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | hydrophobic windshield ultrasonic precision coating,oil repellent ultrasonic precision coating |
||
Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating
Description:
In the automotive manufacturing industry, automotive glass is an important component of vehicles, and its performance and quality are highly valued by car manufacturers and consumers. Ultrasonic spraying technology can effectively improve the performance of automotive glass, including high transparency, low reflection, wear resistance, energy conservation, environmental protection, and efficient production. Mainly used in windshields, side windows, and rearview mirrors, it enhances driving visibility, durability, and interior comfort, leading a new revolution in the automotive industry.
Parameters:

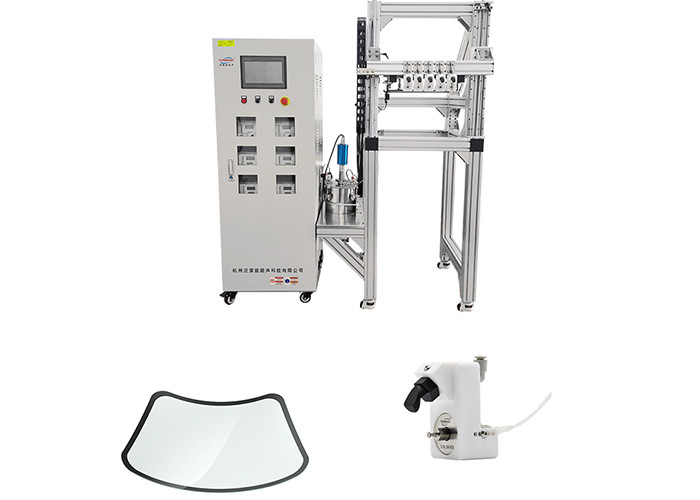

| Product Type | Ultrasonic Large-area Production Line Precision Coating FS680 |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Max Spraying Width | 600mm or Expandable |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | Fixed nozzle, substrate movement, Z-axis manual adjustment |
| Control Mode | Industrial control all-in-one WIN10 (64 bit)+physical buttons |
| Control Content | Ultrasonic spraying, liquid supply, ultrasonic dispersion and other systems |

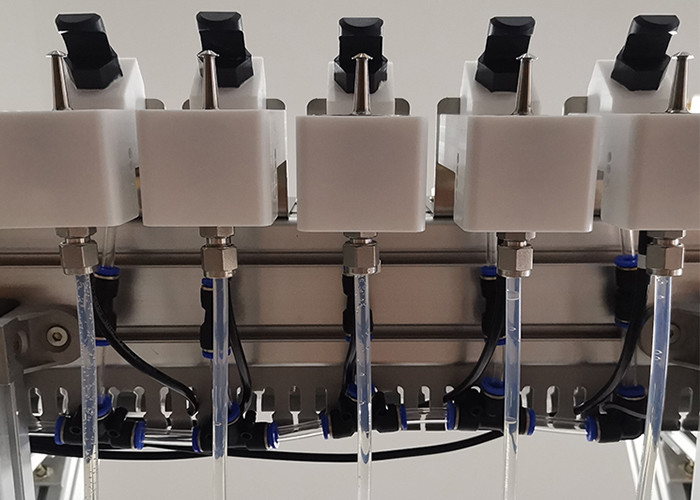

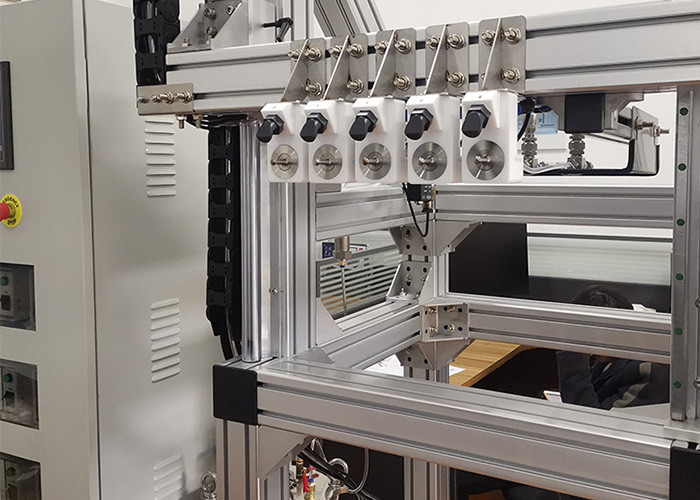

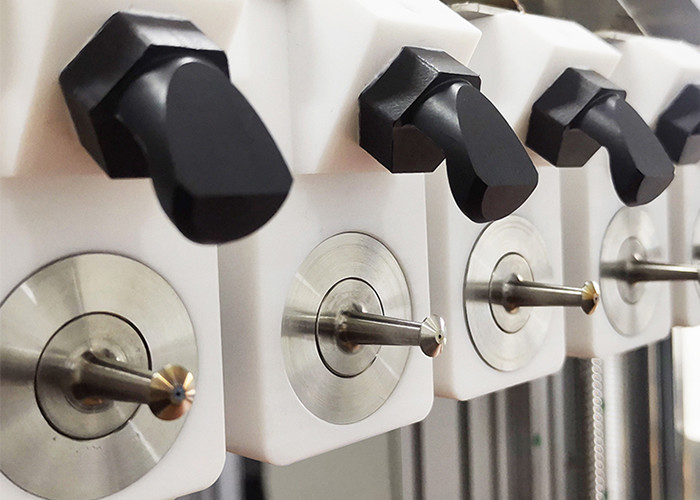

| Ultrasonic Nozzle | Standard configuration: 5 sets of FUNSONIC ultrasonic nozzle systems in parallel series (customized quantity) |
| Application | Suitable for 24-hour uninterrupted production in combination with production lines |
Advantages :
1. High transparency and low reflectivity: The ultrasonic spraying system can evenly spray coatings with high transparency and low reflectivity, effectively reducing light reflection and scattering, and improving the clarity of the driving field of view. It plays an important role in driving at night and under adverse weather conditions.
2. High wear resistance: Automotive glass often encounters various external environments such as wind, sand, rain, bird droppings, etc. Ultrasonic spraying technology can form a dense wear-resistant coating on the surface of glass, significantly improving its scratch resistance and durability, and extending its service life.
3. Energy saving and environmental protection: No additional heating or pressure equipment is required during the ultrasonic spraying process, reducing energy consumption. At the same time, this technology does not produce harmful gases or waste, meets environmental requirements, and helps achieve green production.
4. Improve production efficiency: Ultrasonic spraying technology can achieve a fast and continuous coating process, greatly improving production efficiency. This not only shortens the production cycle, but also reduces production costs, bringing greater economic benefits to automobile manufacturers.
Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating
