Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |

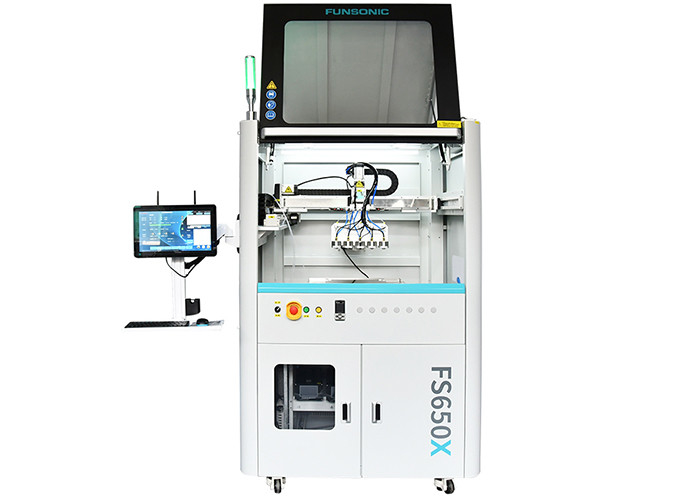

| Model Number: | FS650X |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 100w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤50cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Automotive Manufacturing Coatings Ultrasonic Atomization Coating,Automotive Manufacturing Ultrasonic Atomization Coating,Automotive Manufacturing Coatings |
||
Ultrasonic Atomization Coating For Automotive Manufacturing Coatings
Description:
Ultrasonic Atomization Coating for Automotive Manufacturing Coatings is very suitable for the manufacturing of coatings in the automotive industry, and is suitable for applications such as protective hard coatings and functional coating films in automotive manufacturing.
One of the main advantages of Ultrasonic Atomization Coating for Automotive Manufacturing Coatings is the fragmentation of agglomerated particles when the suspension moves downward along the nozzle body. During the whole spray process, the liquid will be subject to continuous ultrasonic vibration, so that the suspension can be deposited more effectively and evenly. And because it is a closed spraying process, there is no need to worry about outdoor drying of the flux/adhesive mixture during the process.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

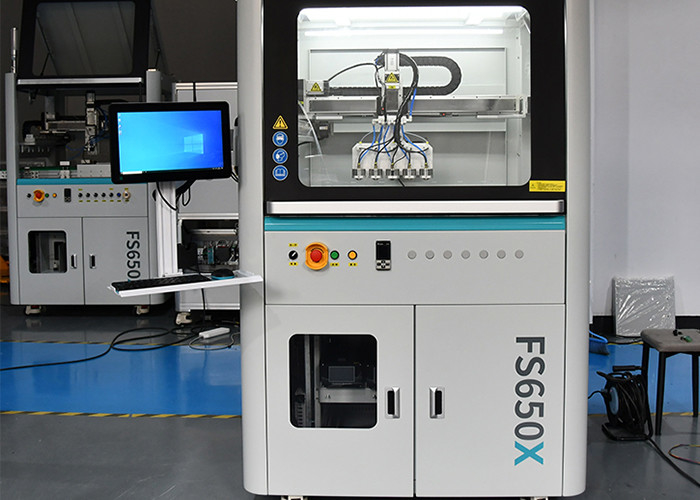

Benchtop Ultrasonic Spray Coating Machine FS650 |
| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W | 1-15W | 1-15W |

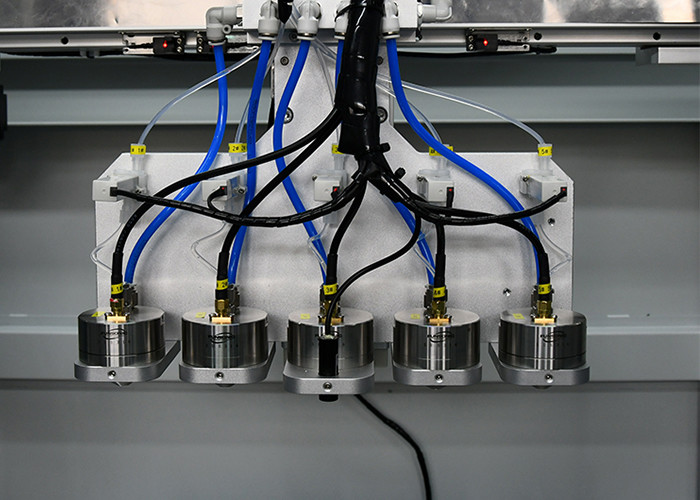

| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | 2-100mm | 2-100mm | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz | 220V±10%/50-60Hz |

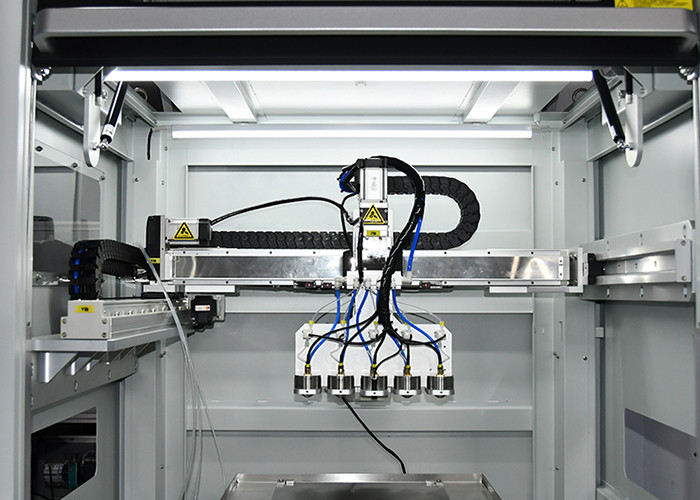

| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
| Liquid Supply Method | Precision injection pump | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
Advantages :
1. High quality coating
Uniformity: Ultrasonic spraying can provide a uniform coating, avoiding common color differences and unevenness in traditional spraying methods.
Careful control: capable of achieving micrometer level coating thickness control, meeting the strict requirements of high-end automotive interiors for coating quality.
2. Material adaptability
Multiple materials: Suitable for various interior materials, including plastic, leather, and fabric, and can be combined with automotive interior design.
Environmentally friendly coatings: Water based coatings and low volatile organic compound (VOC) coatings can be used, which meet environmental requirements.
3. Improve durability
Wear resistance: Ultrasonic coating can enhance the wear resistance of interior surfaces and extend their service life.
Anti pollution: Specific coatings can provide excellent anti pollution performance, keeping the interior clean and beautiful.
4. Reduce noise
Acoustic performance: Some coatings can effectively reduce the resonance of interior materials, improve the noise level inside the car, and enhance ride comfort.
5. Design flexibility
Diversified effects: Ultrasonic spraying can achieve various surface effects, such as matte, glossy, textured, etc., increasing the diversity of interior design.
Complex shapes: capable of evenly spraying on interior components with complex shapes, enhancing overall aesthetics.
6. Production efficiency
Efficient spraying: Ultrasonic spraying has a high degree of automation, which can improve production efficiency and shorten production cycles.
Reduce material waste: Due to precise spraying, material waste is significantly reduced, which helps to lower production costs.
Ultrasonic Atomization Coating For Automotive Manufacturing Coatings
