Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-6005-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.01-1ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Medical Balloon, Stent, Fine Wire Spraying |
| Highlight: | Specialized Focused Ultrasonic High-Frequency Nozzle,60Khz Line Ultrasonic Nozzle Atomization,Nozzles For Balloon Catheter Spraying |
||

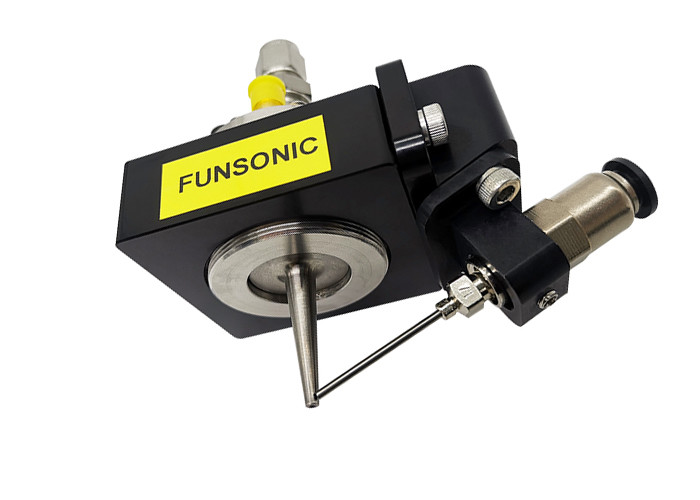

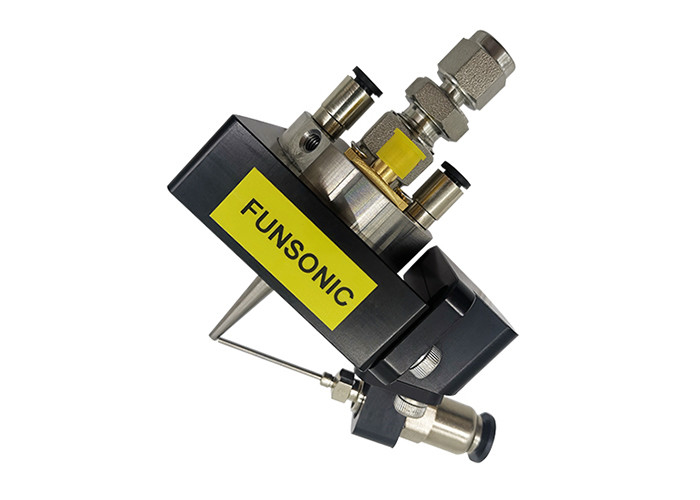

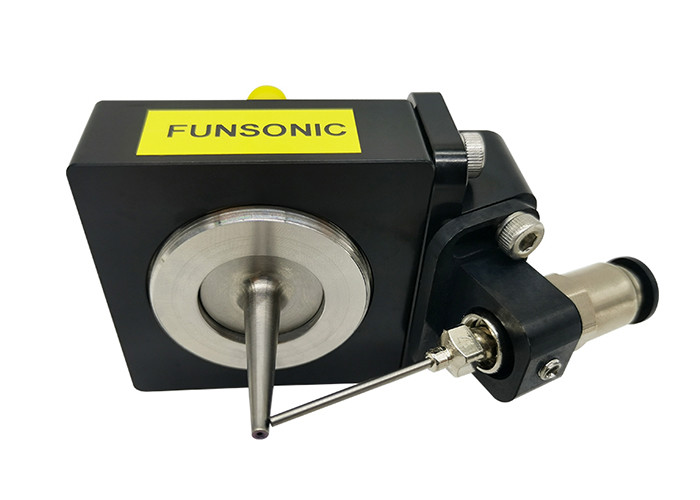

Specialized Focused Ultrasonic High-Frequency Nozzles For Balloon Catheter Spraying
Description:
Specialized Focused Ultrasonic High-Frequency Nozzle are mainly used for spraying balloon catheters. The atomizing nozzle is made of military grade TC4 titanium alloy and has good acoustic characteristics. The liquid supply mode of the nozzle is different from other nozzles in design. The liquid is introduced to the atomizing surface through the externally installed conduit, and the gas enters from the nozzle hole. The air flow attracts the spray to form an extremely narrow spray beam. The flow rate is generally about 20-100 μ l/min, and the spray diameter is between 1-2 mm. The median droplet diameter produced is very small. The significant feature of this technology is that the liquid feed is external, and before the liquid is atomized, the liquid is completely isolated from the nozzle vibration. This means that in different spray cycles, spray has higher stability and reproducibility.
According to the atomization requirements of different solvents, FUNSONIC can provide ultrasonic atomization nozzles with different frequencies such as 60Khz, 100kHz, 120kHz, etc. Meanwhile, by adding an inlet pipe, it is possible to spray two, three, or even four or more solutions simultaneously. If you have any questions, feel free to call FUNSONIC at any time to inquire about product details.
Parameters:
| Model | FSW-6005-L |
| Name | 60Khz Line Ultrasonic Nozzle Atomization |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 0.5-2 |
| Spray flow(ml/min) | 0.01-1 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.02 |
| Application | Suitable for Medical balloon, stent, fine wire spraying |
Advantages:
1. Medical devices: Surface treatment of vascular stents, catheters, and other implants to improve the compatibility and antithrombotic properties of biomaterials; Coatings for dental and surgical instruments.
2. Electronic products: Used as protective coatings for circuit boards, wires, and connectors to improve insulation and moisture resistance.
3. Automotive industry: Coating engine components, fuel systems, and other critical components to improve corrosion resistance and wear resistance.
4. Aerospace: Apply protective coatings on lightweight and high-performance materials.
5. Home appliance manufacturing: Used for coating the surface of home appliances to enhance aesthetics and durability.
6. Textiles: Applied on functional textiles to increase waterproof, anti fouling and other characteristics.
7. Coatings and paints industry: used for spraying high-performance coatings to improve coating quality.
