| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-6004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Vacuum Blood Collection Tube Spraying, Syringe Silicone Oil Spraying |
| Highlight: | deep BCT spraying nozzle,silica slurry ultrasonic long nozzle,60Khz Probe Ultrasonic Nozzle Atomization |
||

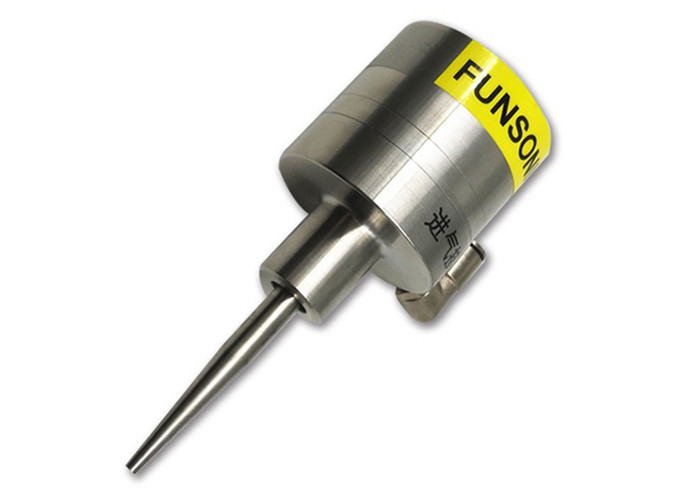

Silicon Dioxide Slurry Ultrasonic Long Nozzle Deep BCT Spraying
Description:

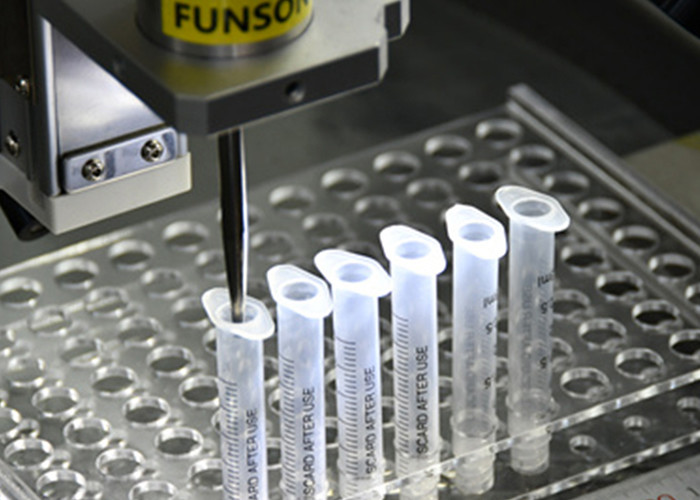

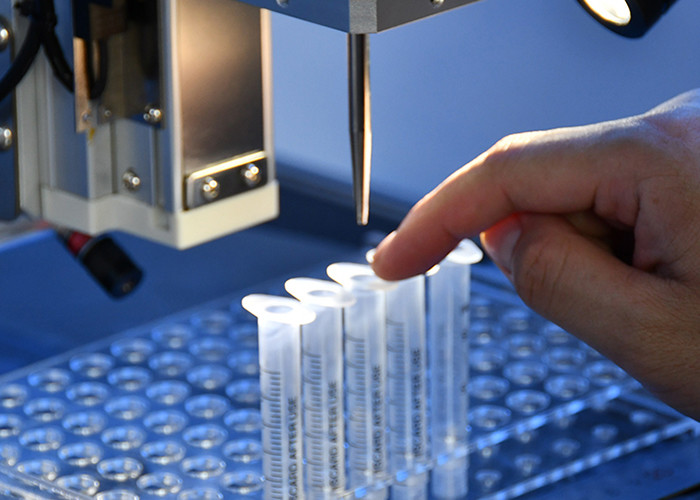

There are various nozzle configurations for deep BCT spraying of silica slurry ultrasonic long nozzle, which can be customized according to the diameter and length of BCT or syringe barrel. A common application is to spray a silica coating to accelerate coagulation, and the silica slurry is sprayed onto the pipe wall through an ultrasonic nozzle to form a uniform thin film of silica particles.
Silicon dioxide slurry ultrasonic long nozzle deep BCT spraying can decompose any silicon dioxide agglomerates through the high-frequency vibration of ultrasonic waves on the nozzle, ensuring that the coating on the pipe wall can be evenly distributed. At the same time, according to the requirements of the coating area, local spraying can be carried out to more accurately control the coating position.
Parameters:
| Model | FSW-6004-L |
| Name | 60Khz Probe Ultrasonic Nozzle Atomization |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying |

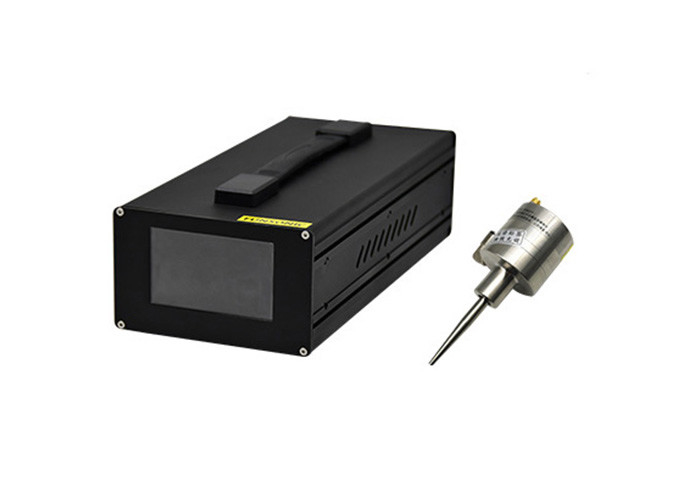

General Configuration :
1. Viscosity and solid content: Typically, viscosity is ≤ 30cps, and the suspension requires a solid content of no more than 20-30%
2. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1uL/min
3. Dry film thickness: 20nm-100um (related to the substrate of the solution)
4. Input voltage: 220V ± 10%, 50-60Hz
5. Solution conversion rate: ≥ 95%, utilization rate is several times that of traditional two fluid pressure nozzles
6. Atomized particle size: The average value is 15-45 μ m, mainly depending on the nozzle frequency. The higher the frequency, the smaller the particles
7. Nozzle frequency: can be equipped with multiple nozzle systems ranging from 30-200KHz
Silicon Dioxide Slurry Ultrasonic Long Nozzle Deep BCT Spraying
