| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.3-5ml | Liquid Viscosity: | <30cps |
| Particle Size: | <5μm | Application: | In Test Tube Spray Injector Silicone Oil Spray |
| Highlight: | Ultrasonic Spray Nozzles With Power Controller,Power Controller Ultrasonic Spray Nozzles,40Khz Ultrasonic Spray Nozzles |
||

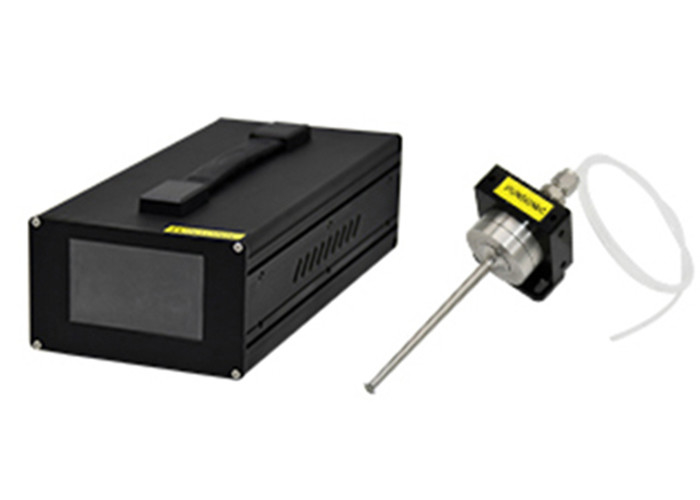

Ultrasonic Spray Nozzles With Power Controller
Description:

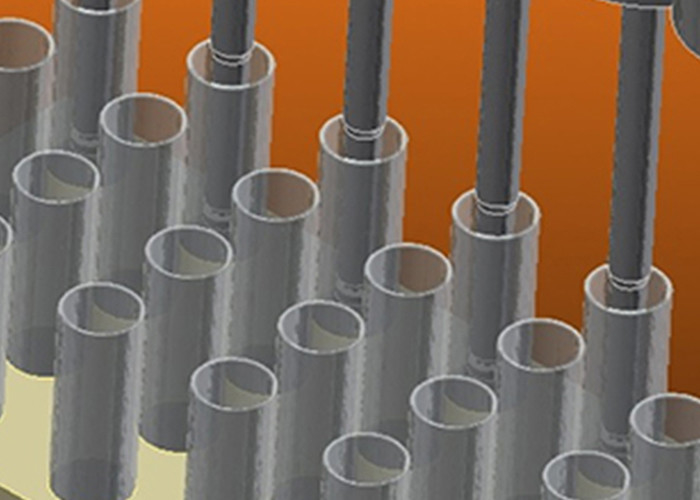

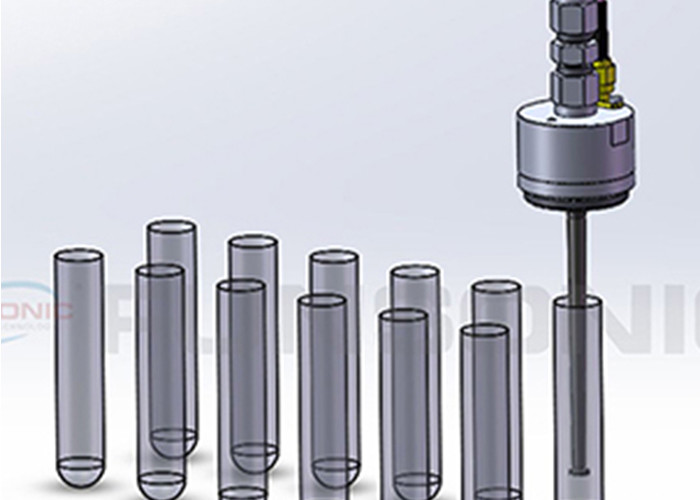

In medical blood collection tubes and injection walls, it is necessary to add and apply activators and anticoagulants, including heparin, EDTA, silica, and acidic citrate glucose, to avoid blood clotting and facilitate later detection experiments. So, how can these drugs be evenly applied to the inner wall of the blood collection tube? The ultrasonic probe type atomizing nozzle plays an indispensable role in it.

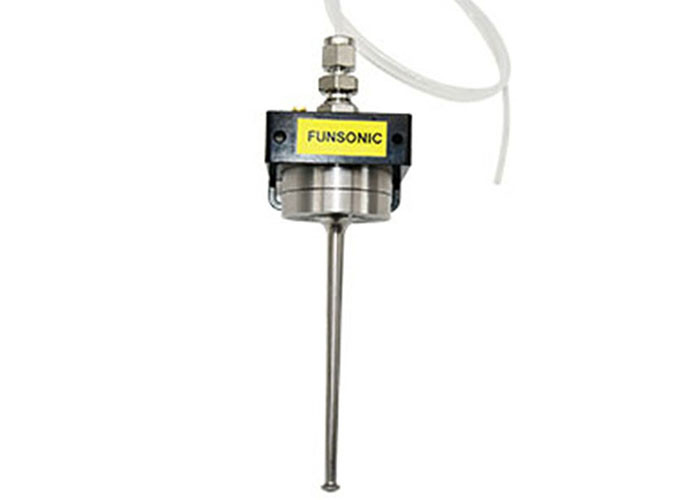

The ultrasonic probe type atomizing nozzle is designed and manufactured with a frequency of 40K and an airflow channel to atomize liquid particles with a diameter of about 28 microns and a spraying width of 1-3mm, which can meet various spraying requirements such as area, thickness, and smoothness. FUNSONIC can design unique exterior structures according to different application environments of customers.
Parameters:
| Model | FSW-4004-L |
| Name | Ultrasonic Probe Type Nozzle 40Khz |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 3-15 |
| Spray flow(ml/min) | 0.3-5 |
| Spray height(mm) | 1-100 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <15 |
| Diversion pressure (Mpa) | N |
| Application | In Test Tube Spray Injector Silicone Oil Spray |
Advantages :
1. Unique ultrasonic atomization technology, precise control of droplet size.
2. Uniform dispersion of any solid contained in a liquid.
3. The coating height on the pipe wall is uniform.
4. Manipulate the ultrasonic atomizer to accurately enter and exit the inner diameter of the pipe.
5. Fully automatic control of electronic devices.
6. Self cleaning ultrasonic nozzles require almost no maintenance.
7. Able to control the coating area of specific areas on the pipe wall.
Ultrasonic Spray Nozzles With Power Controller
