Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-1003-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 100Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <10μm | Application: | Suitable For Brackets, Balloon Conduits, Wires, Flux For Selective Welding Applications, Etc. |
| Highlight: | Flange Atomizing Nozzle,100K Ultrasonic Atomizing Nozzle,Customized Ultrasonic Atomizing Nozzle |
||

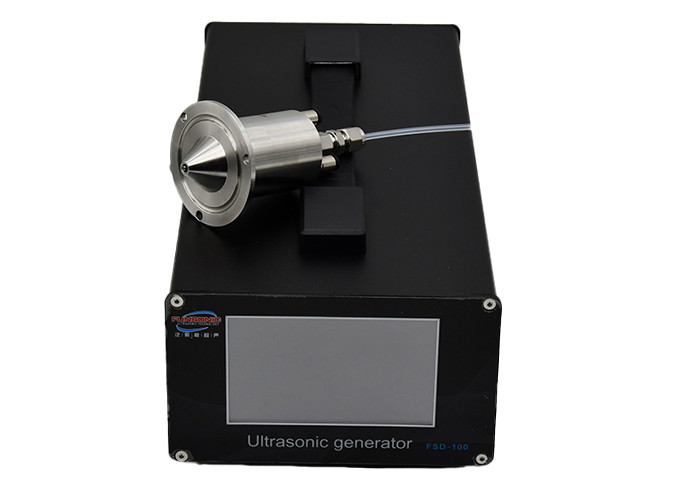

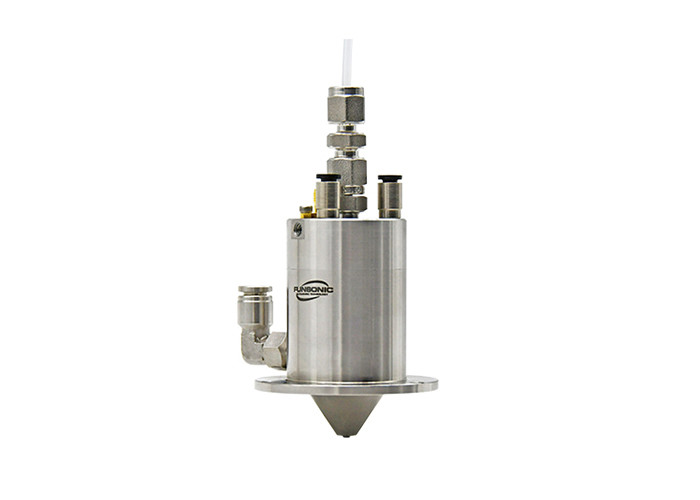

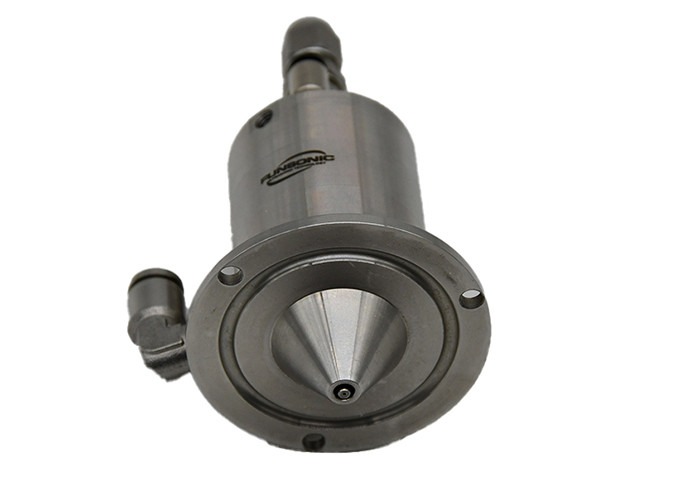

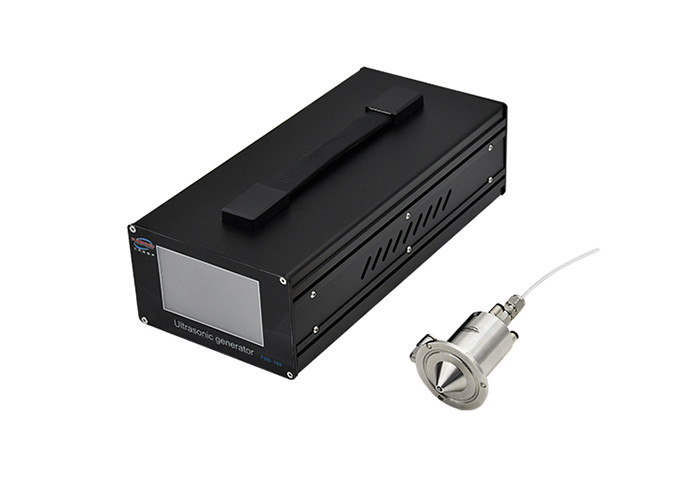

Customized 100K Ultrasonic Gathering Type With Flange Atomizing Nozzle
Description:
Customized 100K Ultrasonic Gathering Type with Flange Atomizing Nozzle is a device that uses ultrasonic technology to convert liquid into tiny droplets. By incorporating ultrasonic vibrators into the nozzle, high-frequency sound waves are generated when current passes through, which act on the surface of the liquid to form tiny droplets. The generated droplets are sprayed out through the nozzle and atomized into small particles with a diameter of 15-40 microns, forming a uniform atomization effect.
Parameters:
| Model | FSW-1003-L |
| Name | 100Khz Gathering Ultrasonic Nozzle Atomization |
| Frequency | 100Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 2-20 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-30 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for Brackets, balloon conduits, wires, flux for selective welding applications, etc. |
Maintain :
1. Regular cleaning
Cleaning frequency: Regularly clean the nozzle according to usage frequency to avoid liquid residue causing blockage or performance degradation.
Cleaning agent selection: Use mild cleaning agents and avoid highly corrosive chemicals.
2. Check the vibrator
Regular inspection: Regularly check the status of the ultrasonic vibrator to ensure its normal operation.
Prevent overheating: Ensure that the vibrator operates within the appropriate temperature range to avoid damage caused by overheating.
3. Replace the nozzle
Wear inspection: Regularly check the wear of the nozzle. If severe wear is found, it should be replaced in a timely manner.
Use appropriate nozzles: Ensure to use nozzles that match the characteristics of the liquid.
4. Avoid dry burning
Liquid supply: Ensure that the nozzle always has sufficient liquid supply to avoid dry burning, which may cause equipment damage.
5. Prevent liquid contamination
Liquid quality: Use high-quality liquid to avoid impurities entering the nozzle and affecting performance.
Filtering system: Install a filter in the liquid feed pipeline to prevent particulate matter from entering the nozzle.
6. Regularly check the power supply
Power stability: Ensure power stability and avoid damage to equipment caused by voltage fluctuations.
Cable inspection: Regularly check cable connections to ensure they are not loose or damaged.
7. Storage precautions
Dry storage: When not in use, store in a dry and ventilated place to avoid damp environments that may affect performance.
Avoid direct sunlight: Avoid direct sunlight exposure to prevent material aging.
8. Operator training
Training operation: Ensure that operators receive appropriate training and understand the correct usage and maintenance methods.
Customized 100K Ultrasonic Gathering Type With Flange Atomizing Nozzle
