Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620h |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz For Optional |
|---|---|---|---|
| Max Power: | 50w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | High Temperature Perovskite Glass Spraying Machine,Ultrasonic Perovskite Glass Spraying Machine,High Temperature Ultrasonic Spray Pyrolysis Equipment |
||

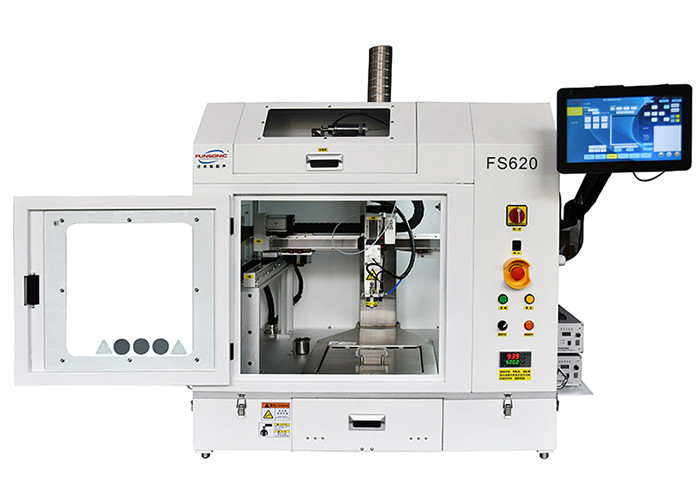

Ultrasonic High-Temperature Pyrolysis Perovskite Glass Spraying Machine
Description:
The ultrasonic high-temperature ITO glass spraying machine is an advanced equipment designed specifically for spraying perovskite materials under high temperature conditions to prepare high-performance coatings. This technology combines ultrasonic spraying and pyrolysis processes. Through ultrasonic technology, different frequencies of ultrasonic nozzles are selected to determine particle size, ensuring the uniformity and precision of spraying, optimizing and improving coating performance.
Ultrasonic high-temperature ITO glass spraying operation steps: Firstly, dissolve the material in a solvent to prepare a perovskite solution; Then place the ITO glass into the ultrasonic spraying equipment; Next, spray the solution onto the ITO glass; Finally, perform drying and solidification treatment. Experiments have shown that perovskite coatings prepared using ultrasonic spraying technology have high optical transparency and conductivity.
Parameters:
| Product Type |
High Temperature Ultrasonic Precision Coating Machine desktop Type |

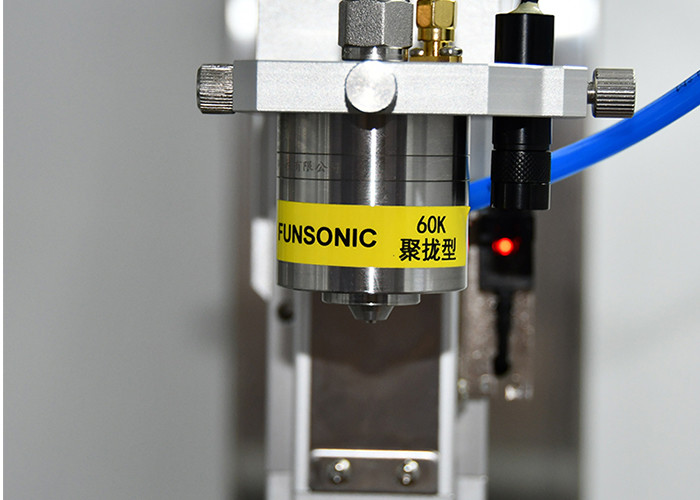

| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |

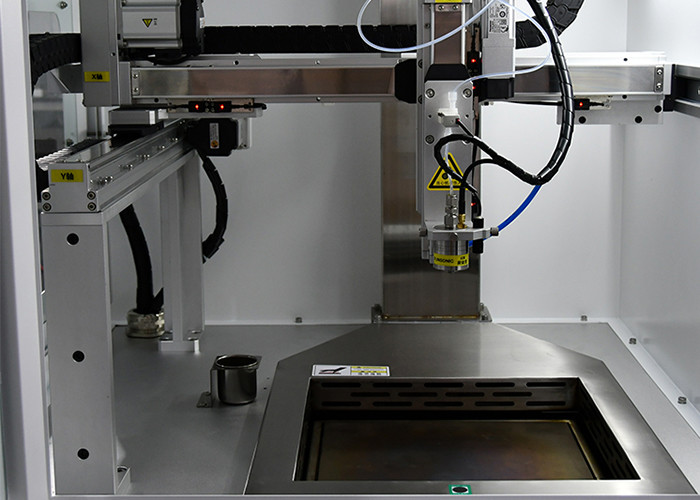

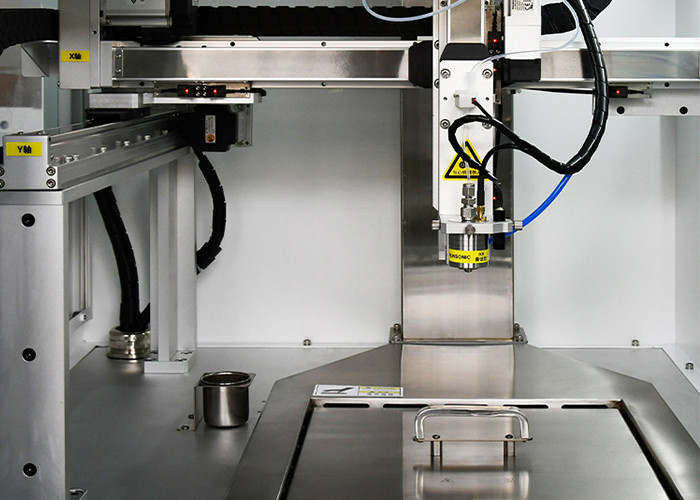

| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Case:
1. Perovskite solar cells
By optimizing the spraying parameters, the energy conversion efficiency of the battery has been successfully improved, reaching over 20%. The uniformity and stability of the film have been significantly improved, extending the service life of the battery.
2. Optical glass coating
Using an ultrasonic sprayer to spray perovskite coatings on optical components to enhance their transparency and wear resistance. The equipment controls the thickness and uniformity of the coating in high temperature environments, increasing light transmittance by 15% while enhancing scratch resistance and reducing maintenance costs.
3. Catalyst synthesis
By adjusting the spraying and pyrolysis conditions, the structure of the catalyst was optimized, the catalytic activity was improved, and the reaction efficiency was increased by 30%. The catalyst maintained stability at high temperatures and extended its service life.
4. Electronic device packaging
High tech companies use this spraying machine to spray a perovskite protective layer on the surface of electronic devices to prevent oxidation and corrosion. The uniformity and adhesion of the protective layer are greatly improved, enhancing the environmental resistance of electronic devices. The overall reliability and lifespan of the product have significantly improved.
Ultrasonic High-Temperature Pyrolysis Perovskite Glass Spraying Machine
