Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620V |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-100mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | 200khz Ultrasonic Spray Coating Machine,20khz Ultrasonic Spray Coating Machine,15W Ultrasonic Sealing Spraying Coating Machine |
||

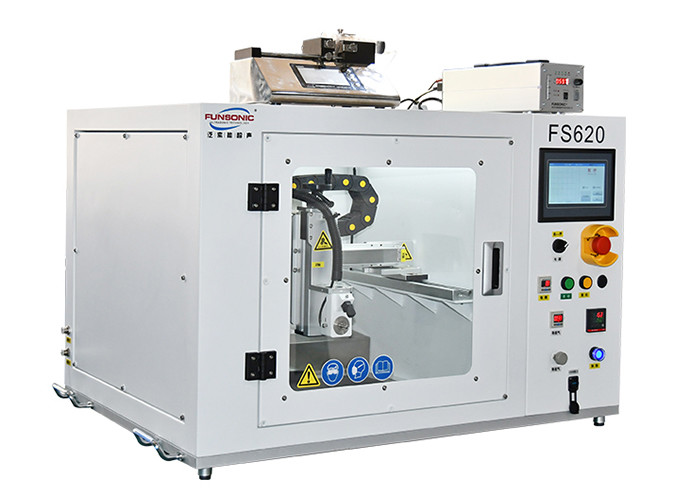

Ultrasonic Sealing Spraying Coating Machine
Description:

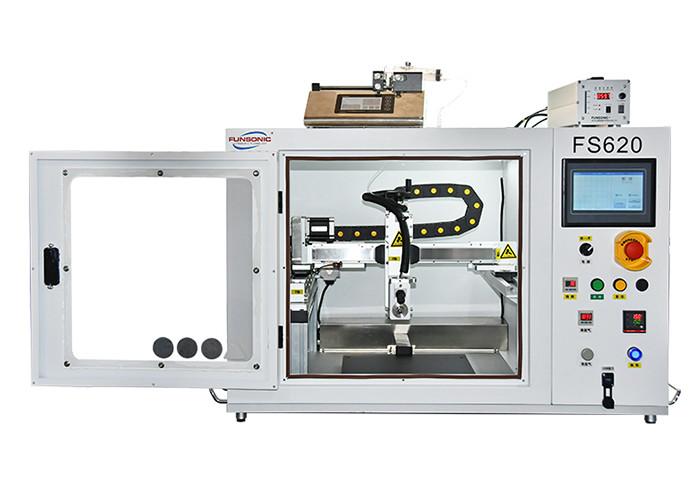

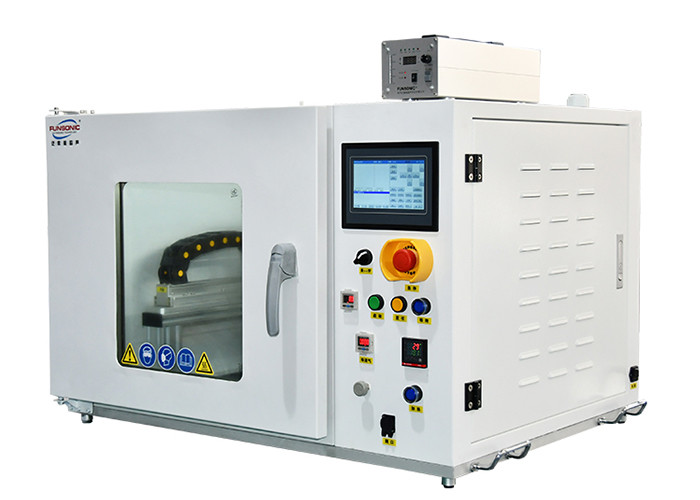

Sealed ultrasonic spraying machine is a device specifically designed for high-precision spraying, combining ultrasonic technology and sealing process. The sealing ultrasonic spraying machine adopts a sealing structure and selects thick sealing rings according to customer specified requirements, with good sealing effect, high temperature resistance and oxidation resistance. At the same time, reinforced hinges are used to effectively stabilize the box door. The double-layer tempered glass door improves the sealing performance and also increases the vacuum degree of the operating space.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V |

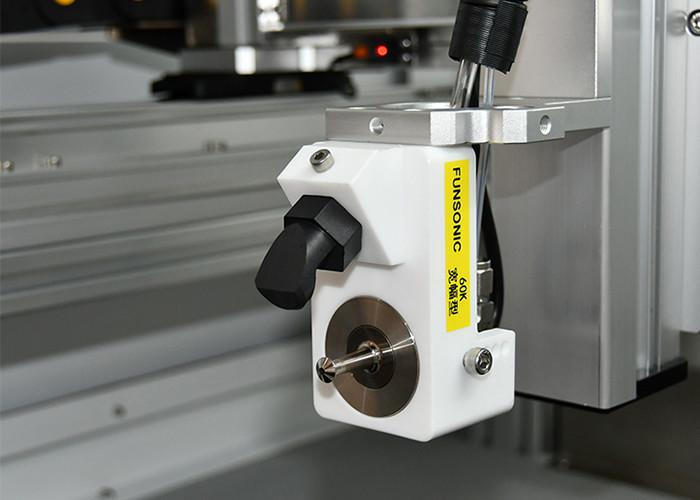

| Spray Nozzle Operating Frequency | 20-200Khz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.5-10ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-40μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Development Prospects :
1. Technological progress
High efficiency: The continuous advancement of ultrasonic technology will improve the accuracy and efficiency of spraying, meeting the needs of high-speed production lines.
Intelligence: With the promotion of intelligent manufacturing, ultrasonic spraying machines will increasingly integrate intelligent control systems to achieve automation and remote monitoring.
2. Environmental requirements
Reducing pollution: Ultrasonic spraying can effectively reduce the emission of volatile organic compounds (VOCs), comply with environmental regulations, and adapt to the trend of sustainable development.
Energy saving: This technology has low energy consumption during the spraying process, which helps to reduce production costs.
3. Expansion of application areas
Multi industry applicability: In addition to the automotive, electronics, and medical fields, ultrasonic precision spraying machines can also be widely used in multiple industries such as aerospace, military, construction, and consumer goods.
New material development: With the development of new coatings and adhesives, ultrasonic spraying technology will be able to adapt to more material and application needs.
4. Market demand growth
High quality product demand: With the increasing demand of consumers for product quality and performance, the application of precision spraying technology in high-end product manufacturing will continue to increase.
Customization demand: The trend towards personalization and small batch production has driven the demand for high-precision spraying equipment
Ultrasonic Sealing Spraying Coating Machine
