Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Precise Ultrasonic Spray Coating System,50-60Hz Ultrasonic Spray Coating System,220V Ultrasonic Spray Coating System |
||
Ultrasonic Spray Coating System
Description:

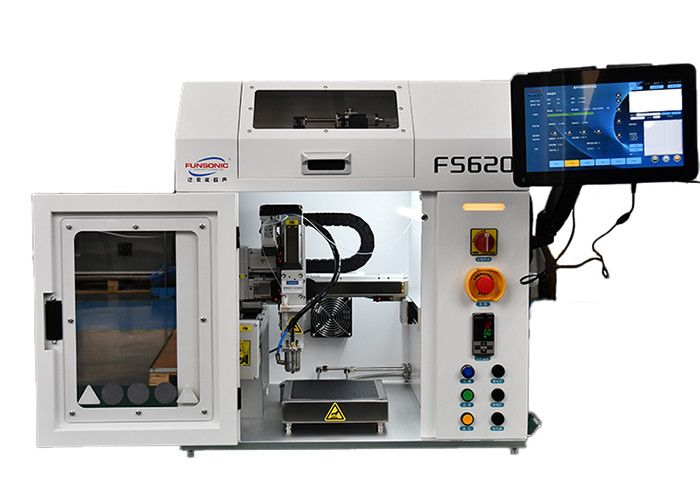

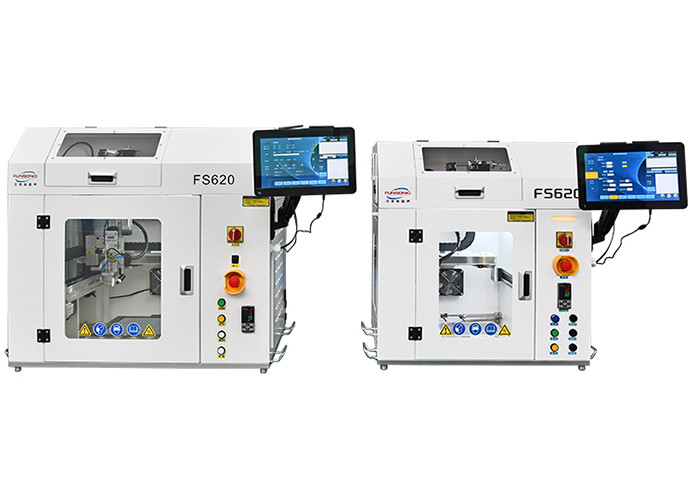

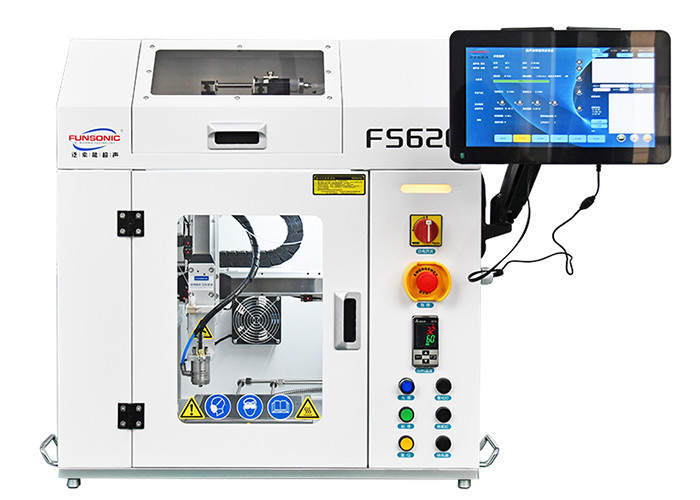

Ultrasonic spraying machine FS620 mini version is mainly a customized miniaturized equipment according to the size requirements of the customer's laboratory. The length of the FS620 mini version ultrasonic spraying machine has been shortened by 200mm compared to the conventional model, and the overall layout is more compact. At the same time, red, orange, and green three color display lights have been added, providing more convenient operation for laboratory research and development.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |
| Spray Nozzle Operating Frequency | 20-200Khz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.5-10ml/min |
| Effective Spraying Width | 2-20mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-40μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Coating Type :
1. Water based coatings
Strong environmental friendliness and low content of volatile organic compounds (VOCs).
Suitable for surface treatment of electronic components and furniture.
2. Solvent based coatings
Contains organic solvents, suitable for coatings that require high wear resistance and corrosion resistance.
Commonly used for painting automotive and industrial equipment.
3. Powder coating
Solvent free, environmentally friendly, suitable for metal surface treatment.
Usually needs to be used in combination with thermosetting.
4. UV curable coatings
Cured by UV irradiation, suitable for rapid production.
Commonly used for coating plastic and metal surfaces.
5. High viscosity coatings
Including certain adhesives and bonding agents, ultrasonic spraying can effectively reduce their viscosity and improve coating uniformity.
6. Special functional coatings
Such as conductive coatings, waterproof coatings, etc., suitable for specific industry needs.
Ultrasonic Spray Coating System
