Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | 95% Uniformity Ultrasonic Spray Coater,1-15W Ultrasonic Spray Coater,Uniform Coating Ultrasonic Spray Coater |
||

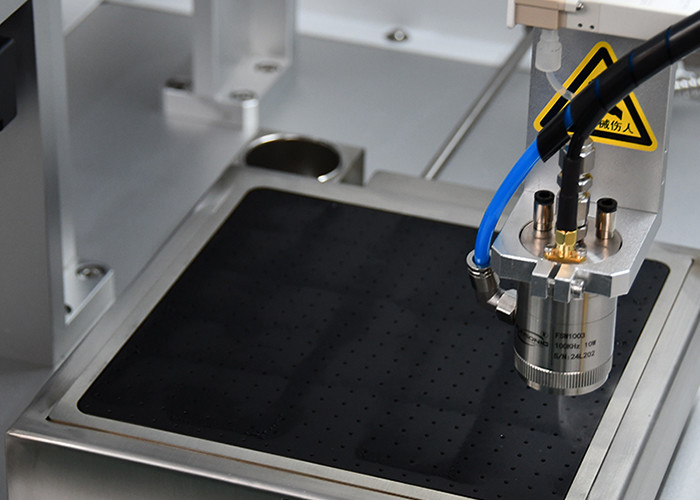

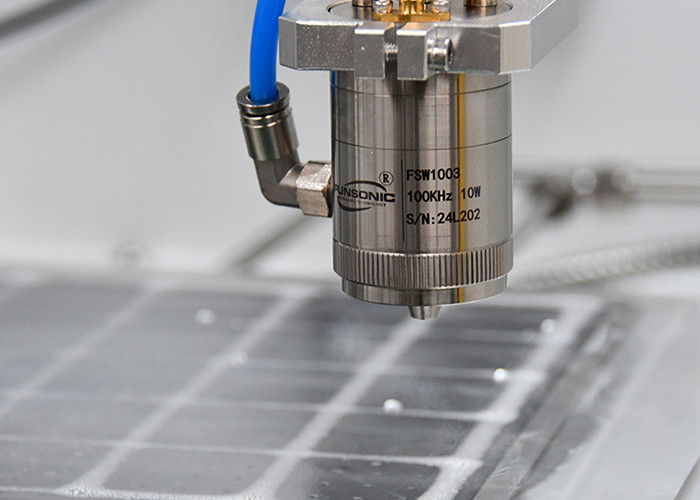

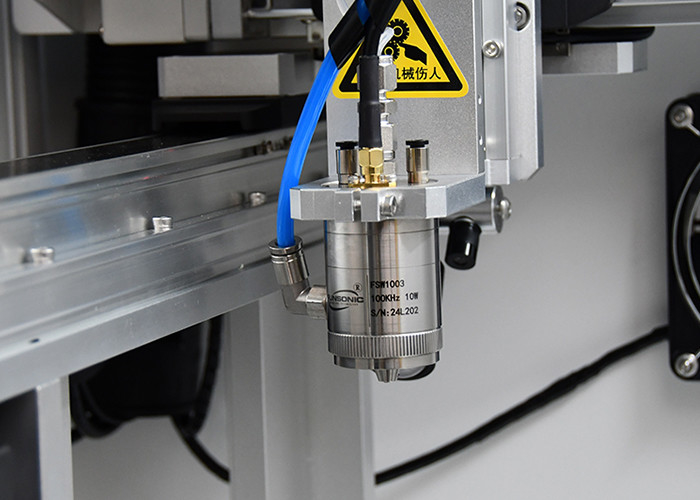

Ultrasonic Spray Coater Equipment
Description:
Ultrasonic spraying equipment is a professional device that uses ultrasonic technology for spraying. It generates small atomized particles through high-frequency vibration of ultrasonic waves (generally above 40Khz), which is suitable for low viscosity coatings and achieves finer spraying. It is widely used in fields such as painting, coating, and surface treatment.
Parameters:

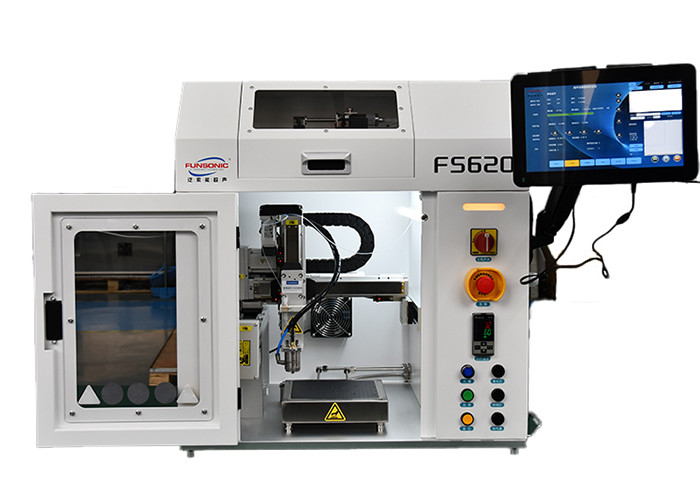

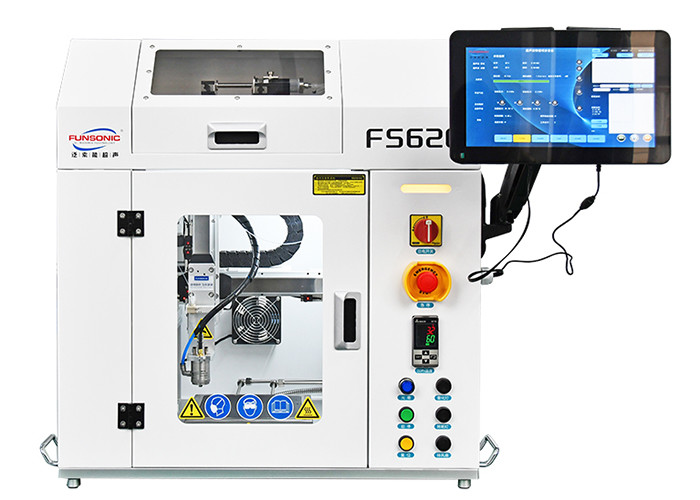

| Product Type | Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |
| Spray Nozzle Operating Frequency | 20-200Khz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.5-10ml/min |
| Effective Spraying Width | 2-20mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-40μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Application :
1. Coating of electronic components
Application: Coating photosensitive materials or protective coatings on circuit boards and electronic components.
Reason: High frequency spraying can ensure uniform coating, enhance adhesion and durability, suitable for delicate electronic products.
2. Manufacturing of photovoltaic cells
Application: Spraying photosensitive materials and anti reflective coatings.
Reason: High frequency equipment can generate small particles, ensuring uniform coverage of photosensitive materials and improving photoelectric conversion efficiency.
3. Coating for medical devices
Application: Coating biocompatible coatings on implants and medical devices.
Reason: High frequency spraying provides precise coating thickness, ensuring biocompatibility and stability.
4. Automotive industry
Application: Protective coating for coating interior parts or fine components.
Reason: High frequency spraying can achieve uniform and fine coating, enhancing appearance and durability.
5. Optical coating
Application: Apply anti reflective or scratch resistant coatings on lenses and optical components.
Reason: High frequency spraying can meet the requirements of high-precision coatings and ensure optical performance.
6. Furniture industry
Application: Spray protective coating on the surface of delicate furniture.
Reason: High frequency equipment can provide uniform coating, enhancing the appearance and durability of furniture.
7. Thin film solar cells
Application: Spraying conductive and photosensitive films.
Reason: High frequency spraying can ensure film uniformity and improve battery performance.
