| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200Khz |
|---|---|---|---|
| Max Power: | 1-15w | Automized Particle Size Range: | 15-45μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <8μm | Application: | Suitable For Qualitative Experiments |
| Highlight: | Electroactive Ultrasonic Coating,Uniformly Dispersed Functional Nanoparticles Ultrasonic Coating |
||
Electroactive Ultrasonic Coating With Uniformly Dispersed Functional Nanoparticles
Description:

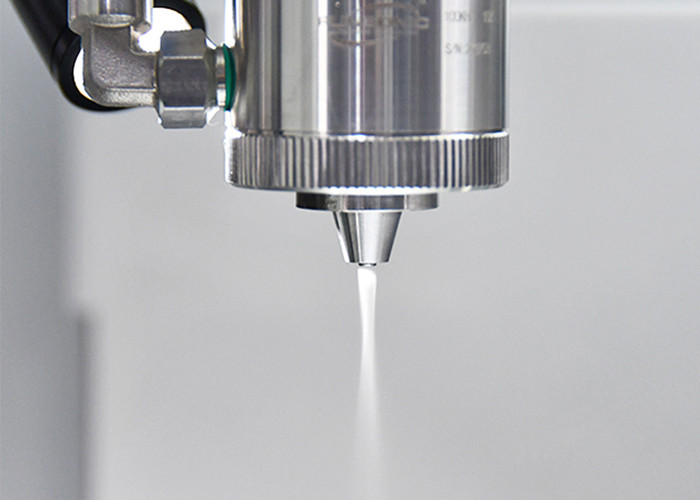

Ultrasonic nozzles are particularly suitable for spraying suspensions with electroactive particles, dispersing them evenly in the suspension to produce excellent electrical performance. The uniform dispersion of particles leads to a larger active surface area, resulting in better electrical performance with thinner layers.
The uniform dispersion of functional nanoparticles in electroactive ultrasonic coating is a unique, environmentally friendly, low-speed spraying technology that can form micrometer thickness, very uniform protective and functional films, with no clogging and minimal overspray.
Parameters:

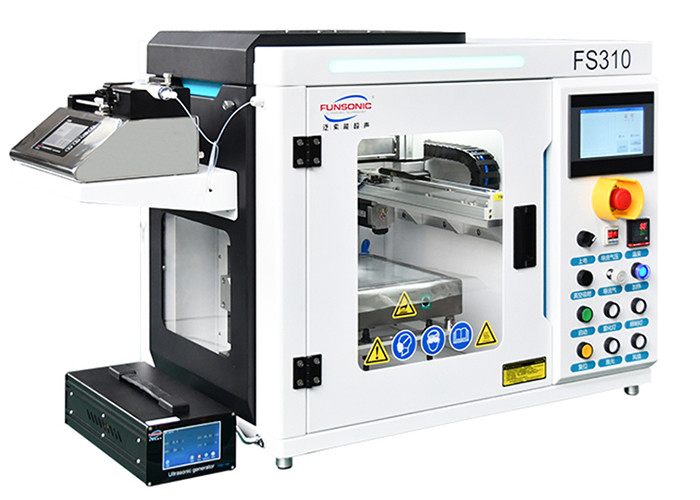

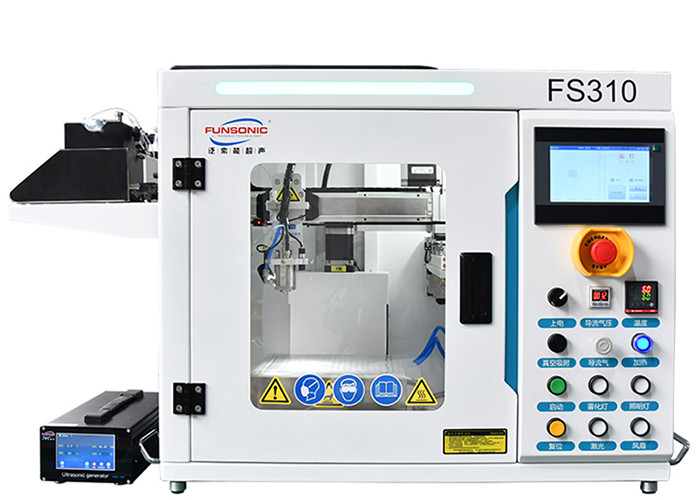

| Product Type | Ultrasonic Precision Spray Coating Machine Laboratory desktop Type |
| Spray Nozzle Operating Frequency | 20-200KHz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment |
| Control Mode | Micro computer card, 7-inch touch screen+buttons |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A |
Application :
1. Intelligent materials:
In smart materials, electroactive coatings can be used for sensors, actuators, and adaptive structures.
2. Medical devices:
Used for biosensors and drug release systems to improve their responsiveness and functionality.
3. Electronic devices:
In flexible electronics and wearable devices, electroactive coatings can enhance device interactivity and performance.
