Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4003-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 1-15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <10μm | Application: | Larger Solid Particles And Higher Solid Content Slurries |
| Highlight: | 40Khz ultrasonic spray coating machine,Ultrasonic Wave Soldering Flux Coating,40Khz ultrasonic spray coater |
||

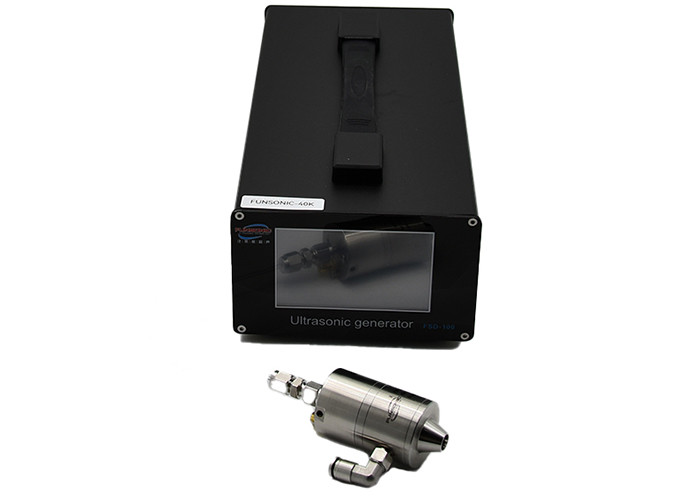

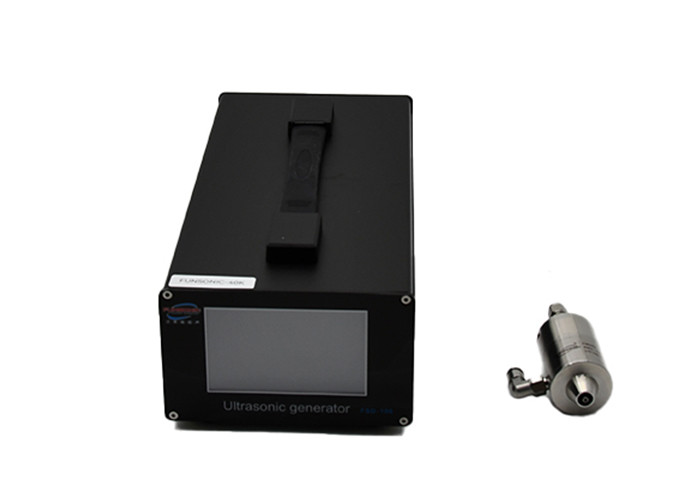

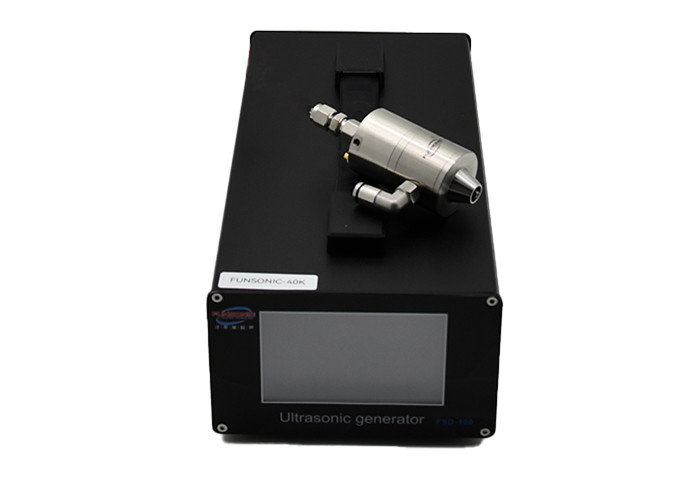

40Khz Ultrasonic OEM Wave Soldering Flux Coating
Description:
40Khz ultrasonic OEM wave soldering flux coating is an ultrasonic technology that uses ultrasonic vibration to spray liquid onto the target surface. In the application of soldering flux, 40Khz ultrasonic OEM wave soldering flux coating can place liquid flux into the nozzle, generate high-frequency vibration through ultrasonic vibrator, and evenly spray the flux on the soldering area. Due to the high-frequency vibration of ultrasound, the atomized droplets are small and uniform in size. During the spraying process, the droplets move at a higher speed, allowing the flux to better cover the target surface.
I have to go into detail about soldering flux here, which plays an indispensable role in electronic assembly and is mainly a mixture of rosin and other chemicals. Its main task is to provide assistance during the welding process to ensure smooth welding. During welding, flux can remove oxides from the surface of the solder and the base material being welded, maintain the cleanliness of the metal surface, prevent surface oxidation during welding, reduce the surface tension of the solder, and improve welding performance. Flux has three forms: solid, liquid, and gas. Its main functions include "assisting heat conduction", "removing oxides", "reducing the surface tension of the welded material", "removing oil stains on the surface of the welded material, increasing the welding area", and "preventing re oxidation". The application of ultrasonic spraying system in the flux industry is becoming increasingly widespread.
Parameters:
| Model | FSW-4003-L |

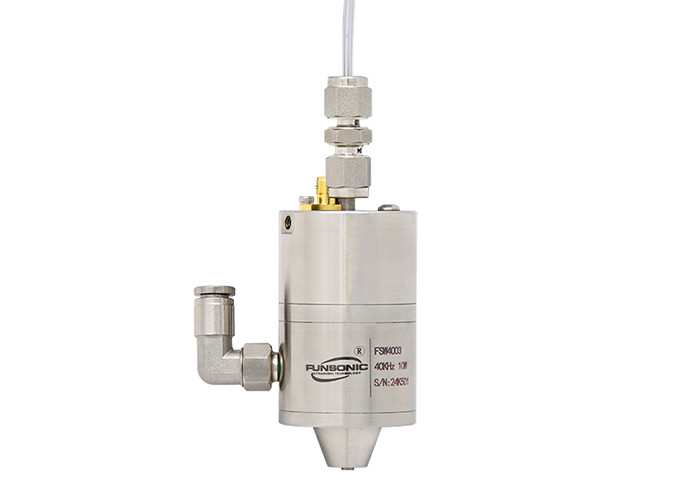

| Name | 40Khz Gathering ultrasonic nozzle |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 2-20 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-30 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Maximum solid content (%) | 15% |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for Brackets, balloon conduits, wires, flux for selective welding application, etc |
Applications :
1. Coating of electronic components:
In the electronic manufacturing process, ultrasonic spraying can accurately apply solder flux to the surface of circuit boards and electronic components, ensuring the quality of soldering.
2. Solder joint protection:
Spraying flux can effectively prevent oxidation and contamination of solder joints, and improve the reliability of the welding process.
3. Precision coating:
For applications that require high precision and uniform coating, ultrasonic spraying can achieve small and uniform flux spraying, ensuring that each solder joint is fully protected.
40Khz Ultrasonic OEM Wave Soldering Flux Coating
