| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS2000-8 |
| Minimum Order Quantity: | 1 UNIT |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Intelligent Ultrasonic Precision Spraying Machine | Frequency: | 20-200Khz (Normally Use 60/100/110/120Khz) |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-50ml/min |
| Effective Spraying Width: | 2-100mm | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | flame retardant ultrasonic coating technology,high performance ultrasonic coating technology,textile ultrasonic coating technology |
||

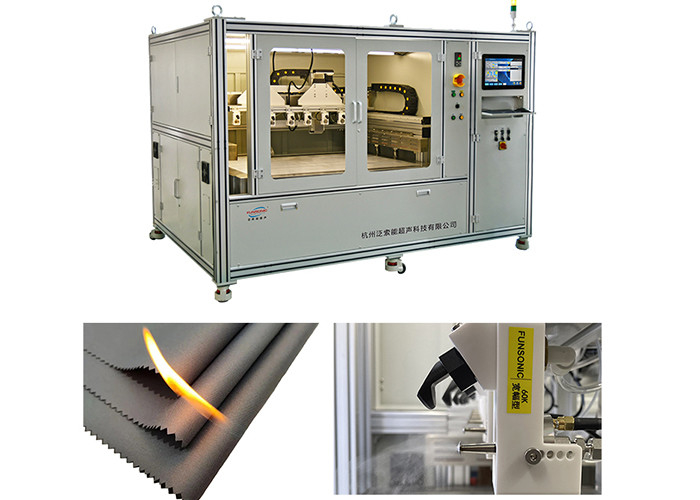

High Performance Textile Flame Retardant Ultrasonic Coating Technology
Description:
High performance textile flame retardant ultrasonic coating technology is mainly applied in the field of textiles and can be used for functional coating processes of coatings and high-performance textiles. High performance textile flame retardant ultrasonic coating technology is suitable for various fabrics, such as cotton, linen, synthetic fibers and other fabrics. By using ultrasonic spraying technology, functional coatings such as waterproof, breathable, antibacterial, and flame-retardant are formed on the surface of fabrics.
Compared with traditional immersion or immersion rolling processes, high-performance textile flame retardant ultrasonic coating technology precisely controls the deposition of coatings, forms uniform nano films, and significantly reduces the use of water, chemicals, and energy, with high environmental performance.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine Type FS2000-8 |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
Application :
1. Firefighting suit: a clothing worn by professional firefighters to enhance safety.
2. Industrial workwear: Suitable for workers in high-risk environments, providing additional protection.
3. Household items: such as curtains and sofa fabrics, to increase fire safety.
High Performance Textile Flame Retardant Ultrasonic Coating Technology
