Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | touch screen ultrasonic coating sprayer,touch screen ultrasonic spray coating machine,head up display ultrasonic coating sprayer |
||

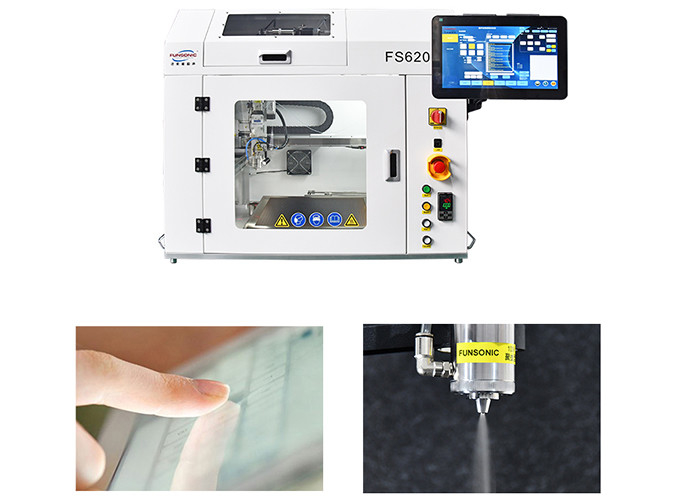

Touch Screen Head Up Display Ultrasonic Coating Sprayer
Description:
Touch Screen Head Up Display Ultrasonic Coating Sprayeris a device used to apply ultrasonic coatings on the surface of displays, aiming to enhance their performance and durability. Touch Screen Head Up Display Ultrasonic Coating Sprayer uses ultrasonic technology to evenly spray the coating on the surface of the touch screen, forming a protective film that enhances the wear resistance of the touch screen while reducing scratches and damage. The display screen coated with ultrasonic waves can reduce the reflection of sunlight and other light sources, improve the display effect, enhance readability, and meet the needs of contemporary users for high-quality and durable products.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

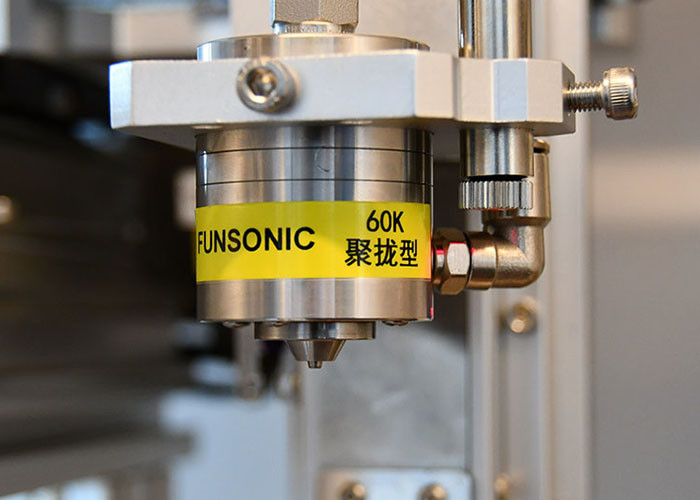

| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm | 2-100mm |
| Spray Uniformity | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A | 100W |
Application :
1. Polyurethane coating: wear-resistant, flexible, with good adhesion and chemical resistance. Widely used for anti scratch and protective coatings.
2. Acrylic coating: high transparency, good glossiness, strong UV resistance and weather resistance. Suitable for surfaces that require high transparency and aesthetics.
3. Silicone coating: resistant to high and low temperatures, with good waterproof and oil resistance. Suitable for high demand environmental conditions, such as automobiles and industrial equipment.
4. Fluorine coating: With extremely low surface energy, it has excellent anti fouling and anti-corrosion properties. Used for high-end touch screens, providing long-term protection.
5. Water based coatings: environmentally friendly, low VOC, suitable for applications with high environmental requirements. More and more are being used in consumer electronics products that comply with modern environmental standards.
6. Nano coating: extremely thin in thickness, with self-cleaning and waterproof properties. Used for high-tech products, providing additional protection.
7. Ceramic coating: extremely high hardness and wear resistance, excellent scratch resistance. Suitable for products that require extremely high durability.
Touch Screen Head Up Display Ultrasonic Coating Sprayer
