Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Silicone Rubber Gasket Ultrasonic Coating,PTEF Gasket Ultrasonic Coating,Polytetrafluoroethylene Gasket Ultrasonic Coating |
||

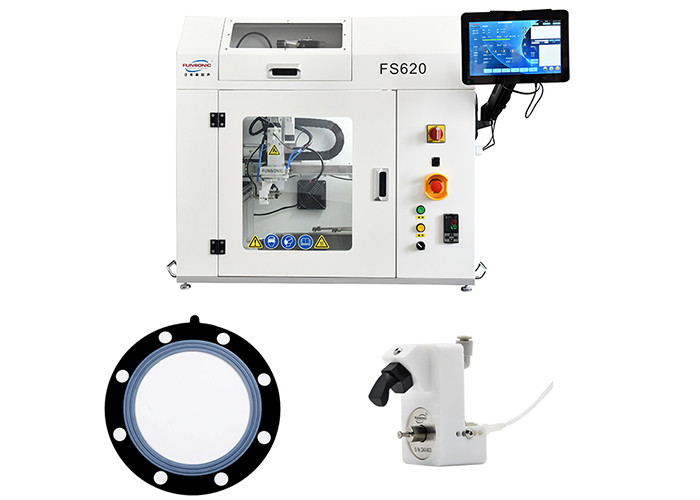

Ultrasonic Coating Of Polytetrafluoroethylene PTEF Silicone Rubber Gasket
Description:
Ultrasonic coating of polytetrafluoroethylene (PTFE) silicone rubber gasket is an advanced surface treatment method aimed at improving the performance and durability of the gasket. Polytetrafluoroethylene (PTFE) silicone rubber gaskets have good elasticity, high temperature resistance, and weather resistance. After uniform coating with ultrasonic technology, each gasket can be fully protected, which not only enhances the wear resistance of the gasket, but also further reduces the friction coefficient and improves its performance in dynamic applications.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |

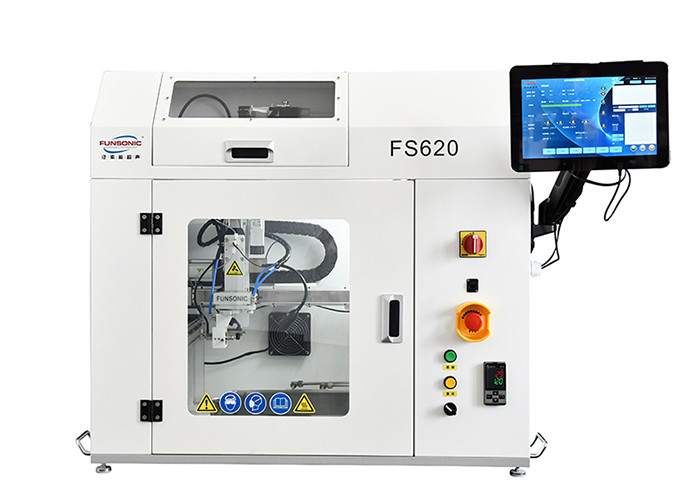

Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

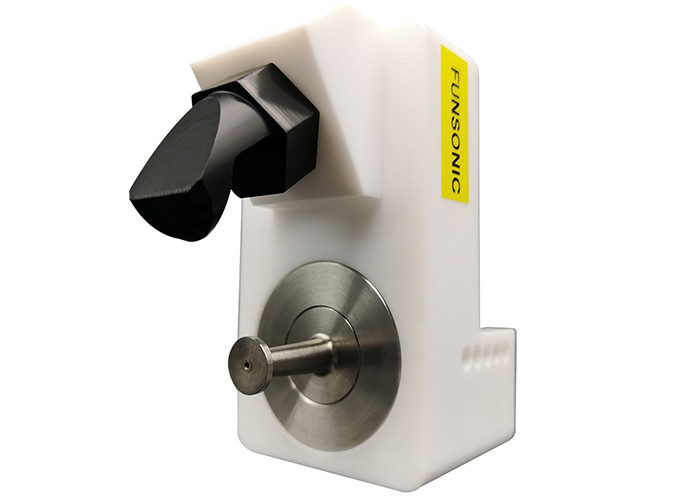

| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm | 2-100mm |
| Spray Uniformity | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |

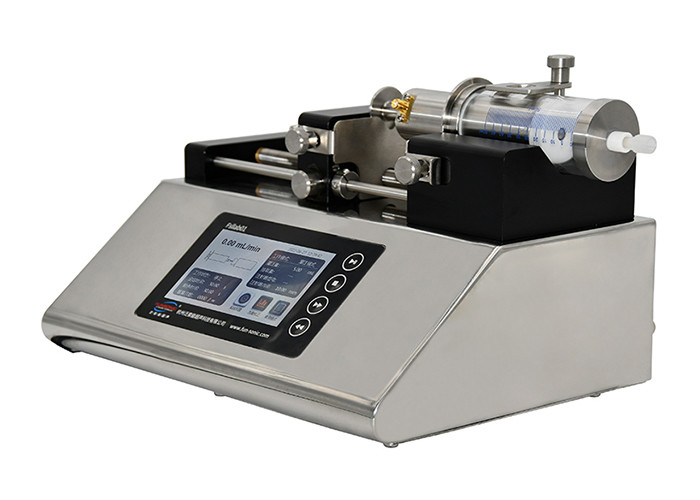

| Liquid Supply Method | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A | 100W |
Application :
1. Automotive industry: used for engine seals and hydraulic systems to enhance sealing performance.
2. Electronic devices: As insulation and sealing materials, they enhance the durability and reliability of the equipment.
3. Industrial equipment: Sealing materials used as key components in chemical and mechanical manufacturing.
Ultrasonic Coating Of Polytetrafluoroethylene PTEF Silicone Rubber Gasket
