Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS1006 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 120Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-2ml/min |
| Effective Spraying Width: | 1-5mm | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤10cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Ultrasonic Stent Coating,Protein Surface Polymer Ultrasonic Stent Coating,Protein Surface Polymer ultrasonic spray coater |
||

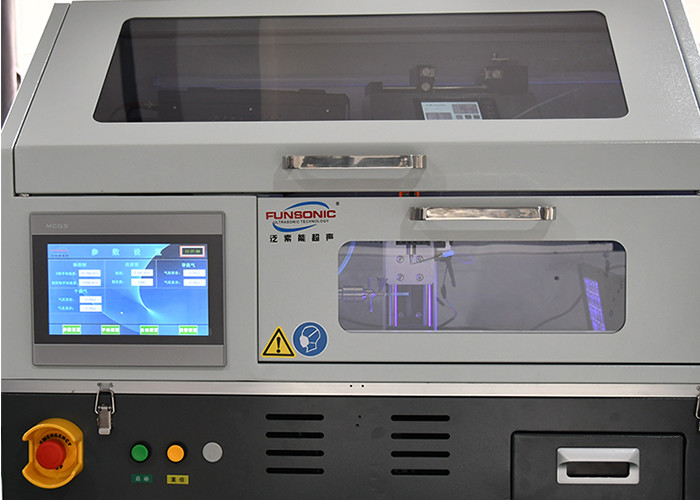

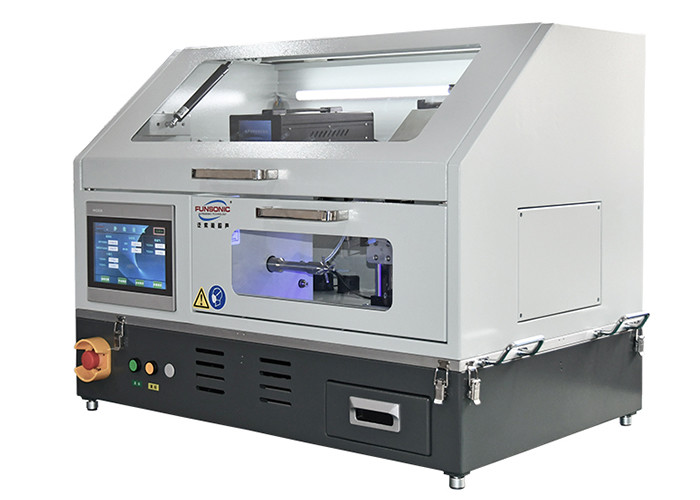

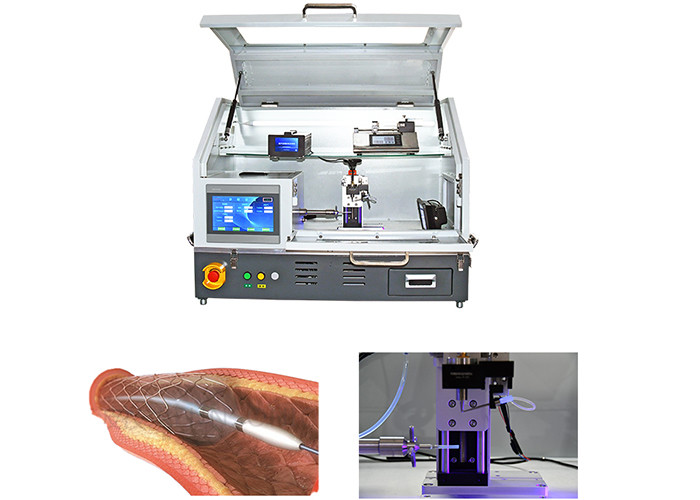

Protein Surface Polymer Ultrasonic Stent Coating
Description:
Ultrasonic spraying has high controllability and can provide very high transfer efficiency for precise thin films of solutions or suspensions such as biopolymers, proteins, EDTA, heparin, amino acids, enzymes, plasma, and preservatives. Therefore, the medical industry is one of the earliest fields in which ultrasonic spraying entered. In the field of biomedicine, ultrasonic spraying is mainly used in drug preparation and controlled release systems, drug delivery, medical device coatings, medical equipment coatings, bioprinting, etc. It can not only help improve drug controlled release effects, enhance the performance and functionality of medical devices, but also achieve high-quality coating preparation, and has broad application potential in the field of pharmaceutical biomedicine.
Protein surface polymer ultrasonic scaffold coating is a challenging spray application. Strict requirements have been put forward for the manufacturing processes used to produce them. Ultrasonic spraying is very suitable for this application because it utilizes piezoelectric ceramics to generate vibrations ranging from tens to hundreds of kilohertz, forming particles of tens or even hundreds of micrometers without the need for high-pressure air pressure. It can accurately and efficiently spray the bracket, and the production environment is easy to control without the introduction of pollutants.
Parameters:
| Product Type | Stent Ultrasonic Coating System FS1006 |
| Spray Nozzle Operating Frequency | 120KHz (Optional 100150Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-5mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤10cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-25μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | X-axis servo motor+rotating R-axis, action can be independently programmed |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
| Operation | Clamp at both ends, supporting the lifting and clamping of excess conduit coils |
Advantages :

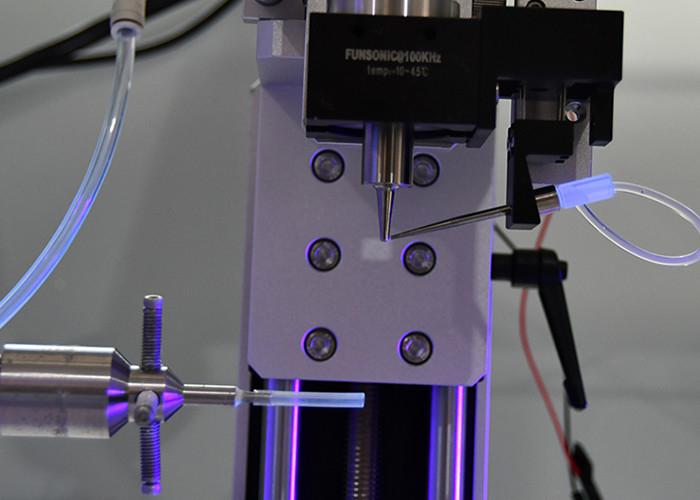

1. The ultrasonic stent consists of an ultrasonic nozzle, ultrasonic power supply, machine control system, injection pump and other liquid delivery systems, as well as product drying systems.
2. High precision and high uniformity drug coating
3. Suitable specifications for peripheral brackets: usually with a length not exceeding 280mm and a diameter not exceeding 60mm; If there are special requirements, customization is available
4. The conversion efficiency of drug coatings is 4-5 times higher than that of air pressure spraying;
5. Unique bracket fixture design: can quickly install and remove brackets;
6. XYZ three-axis servo motor nozzle motion system, servo motor bracket rotation system;
Protein Surface Polymer Ultrasonic Stent Coating
