| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60khz |
|---|---|---|---|
| Max Power: | 1-15W | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | ultrasonic coating for microelectronic semiconductors,microelectronic semiconductors ultrasonic spray coating machine |
||

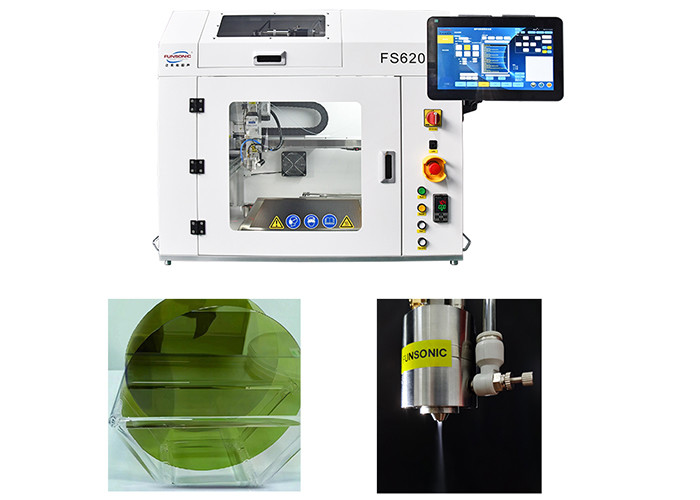

Ultrasonic Coating Of Silicon Carbide Seed Crystal Thin Film For Microelectronic Semiconductors
Description:

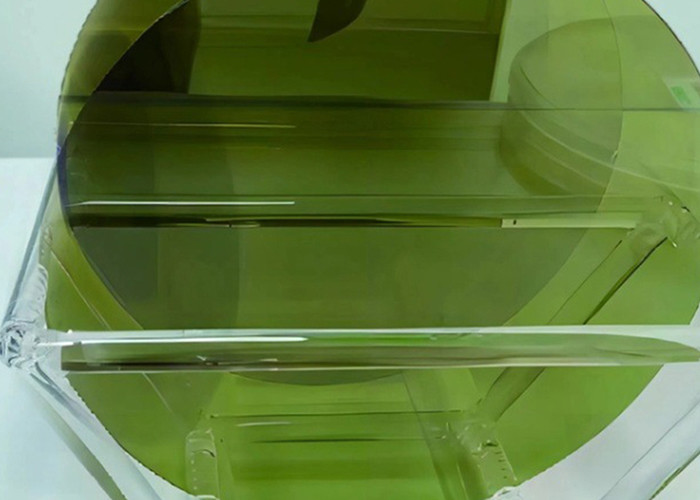

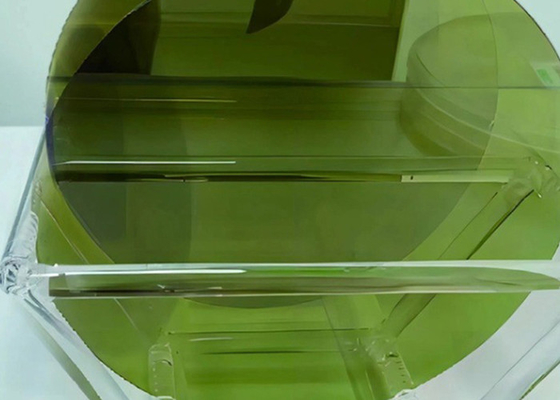

Micro electronic semiconductor silicon carbide seed crystal thin film ultrasonic coating is an emerging technology that combines the excellent characteristics of silicon carbide with the efficient coating method of ultrasonic spraying.
Due to its high hardness, high thermal conductivity, and excellent chemical stability, silicon carbide is suitable for high-temperature and high-power applications. Micro electronic semiconductor silicon carbide seed crystal thin film ultrasonic coating thin film coating can achieve efficient electrical and thermal conductivity, suitable for various electronic and optoelectronic devices.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

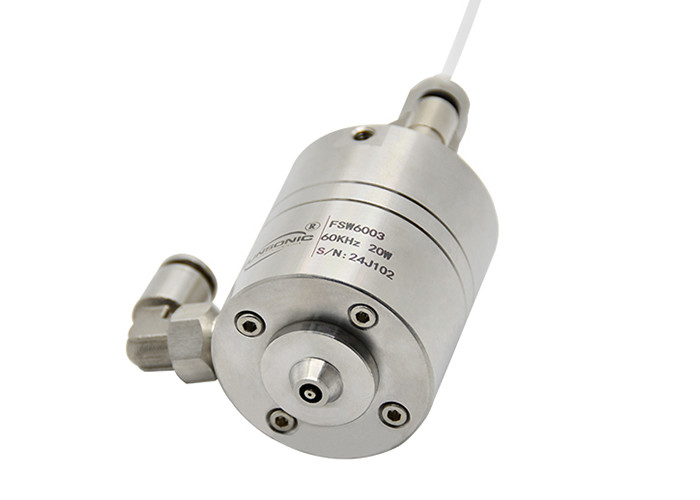

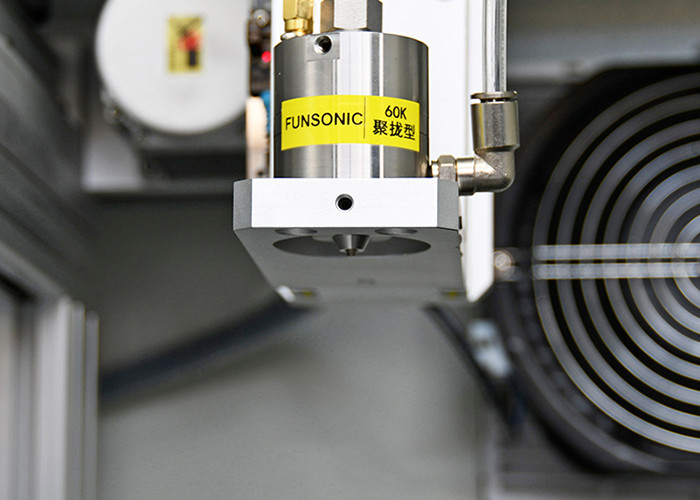

| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm | 2-100mm |
| Spray Uniformity | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz |

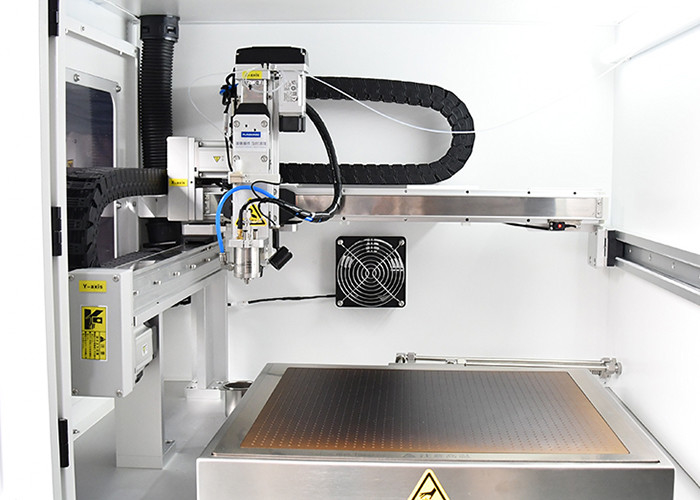

| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A | 100W |
Application :
1. Electronic devices: In power electronic devices, silicon carbide thin films can improve the efficiency and heat resistance of the devices.
2. Optoelectronic components: In photovoltaic and LED devices, silicon carbide thin films can enhance the photoelectric conversion efficiency.
3. Wear resistant coating: provides wear-resistant and corrosion-resistant protection on mechanical components.
