Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620h |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz For Optional |
|---|---|---|---|
| Max Power: | 50w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | high temperature ultrasonic spray coating machine,perovskite ultrasonic spray coating machine,automated ultrasonic spraying machine |
||

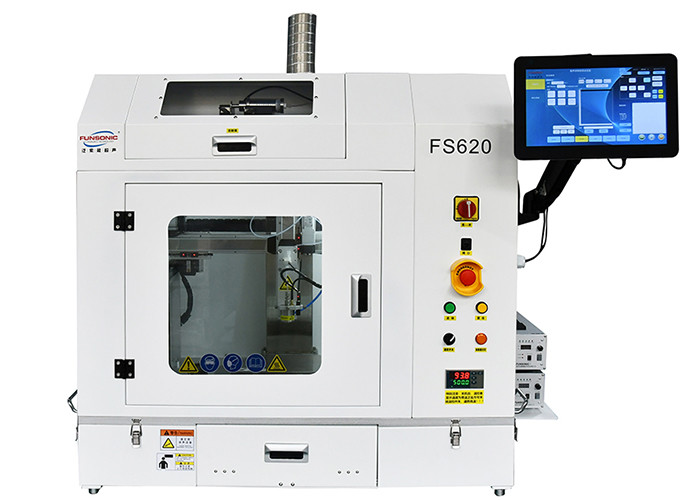

500 ℃ High Temperature Perovskite Material Automated Ultrasonic Spraying Machine
Description:

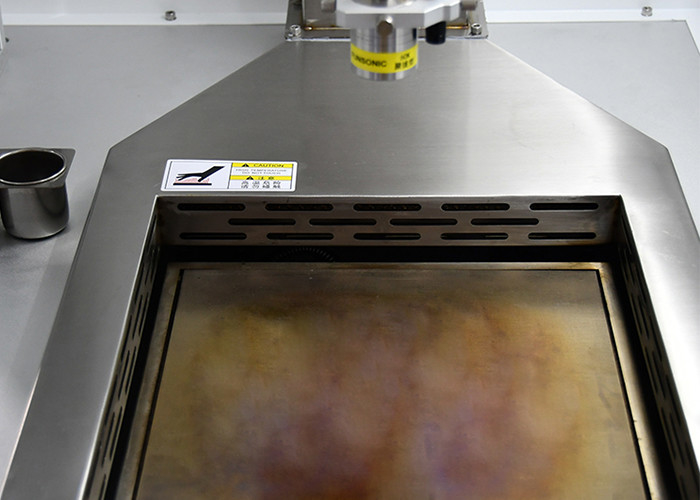

500 ℃ High Temperature Perovskite Material Automated Ultrasonic Spraying Machine adopts a high-precision heating platform with a temperature control accuracy of ±0.1℃, and can be set in multiple temperature sections. The heating temperature can reach 500℃.Ultrasonic spraying can accurately control the particle size and distribution of sprayed materials, improving the uniformity and quality of perovskite coatings. And under the action of high temperature, optimize the phase transition and crystal structure of perovskite materials, reduce possible defects during the coating process, and improve the performance of the material.
Ultrasonic high-temperature spraying equipment is of great significance in the coating application of perovskite materials, especially in the preparation process of photovoltaic materials and catalysts. Due to its excellent optoelectronic properties and thermal stability, perovskite materials have been widely used in solar cells, catalysts, and electronic devices.
Parameters:
| Product Type |
High Temperature Ultrasonic Precision Coating Machine desktop Type |

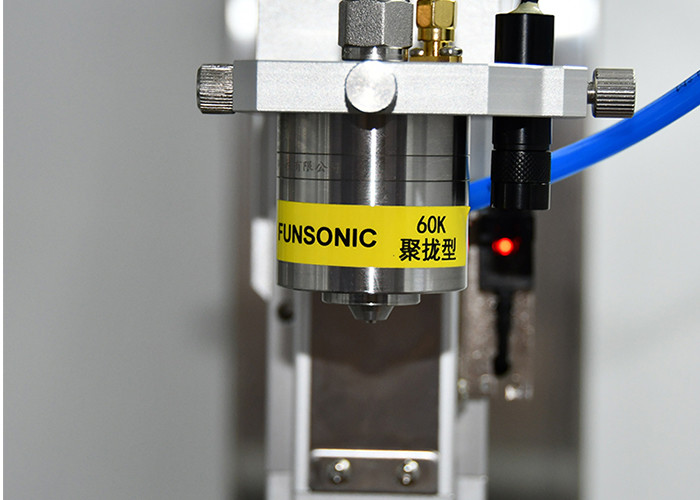

| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |

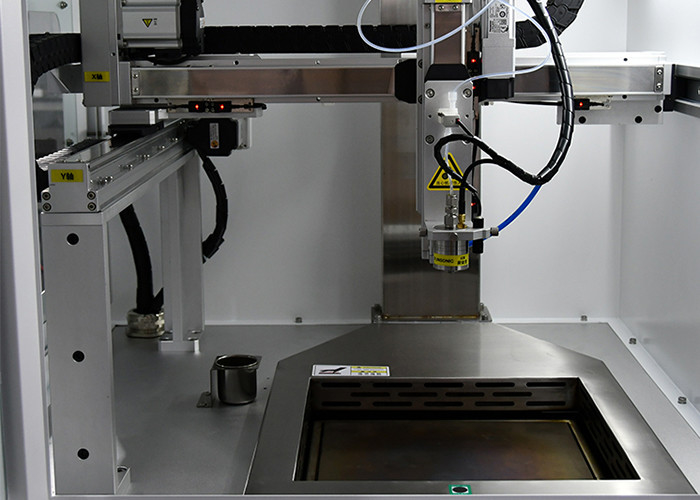

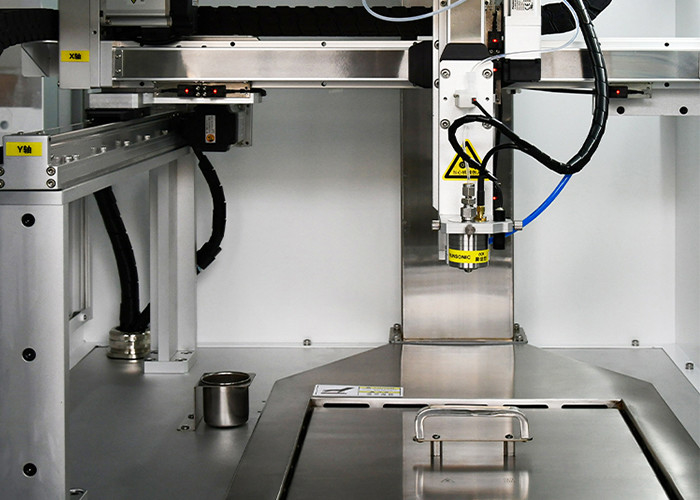

| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Advantage:
1. Efficient and stable synthesis of perovskite
The ultrasonic high-temperature spraying machine sprays perovskite material onto a glass substrate through high-temperature pyrolysis, forming a uniform and highly stable perovskite film. Ultrasonic high-temperature spraying machine can prepare more uniform and stable perovskite materials in a shorter period of time.
2. High quality perovskite thin films
The perovskite material sprayed by the ultrasonic high-temperature spraying machine has higher physical properties, including higher light absorption and photoelectric conversion efficiency. Because this method can withstand the influence of high temperature during the preparation process of perovskite materials, making their crystal structure more ordered, and perovskite films of the same thickness have better optical properties.
500 ℃ High Temperature Perovskite Material Automated Ultrasonic Spraying Machine
