| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS1005 |
| Minimum Order Quantity: | 1 UNIT |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Balloon Catheter Ultrasonic Precision Spraying Machine | Frequency: | 100Khz (120khz Or 150khz For Select) |
|---|---|---|---|
| Max Power: | 10w | Continuous Spraying Volume Max: | 0.01-l/min |
| Effective Spraying Width: | 1-5mm | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤10cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | High Uniformity Ultrasonic Spray Coating Equipment,100Khz Ultrasonic Spray Coating Equipment,Ultrasonic Atomization Spray Coating Equipment |
||
Ultrasonic Atomization Spray Coating Equipment 100Khz High Uniformity Drug Balloon Catheters Coated
Description:

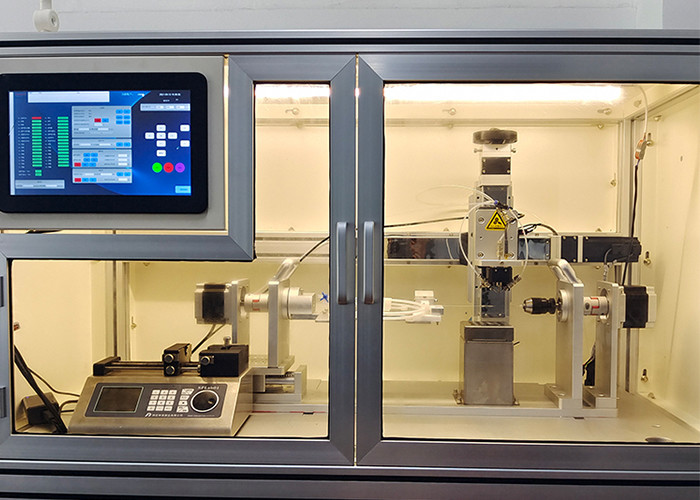

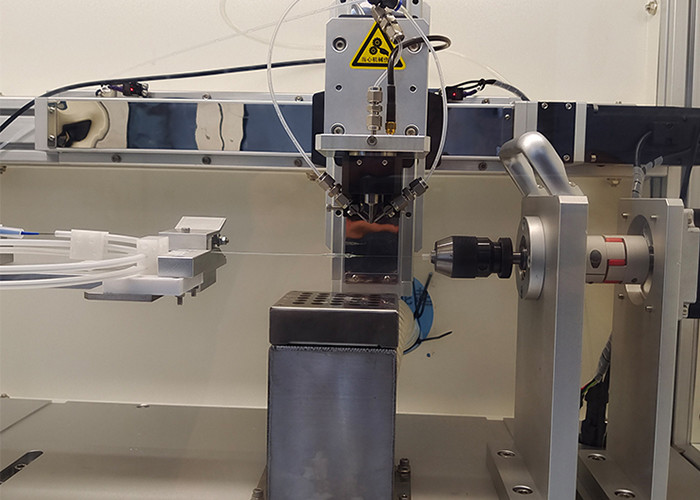

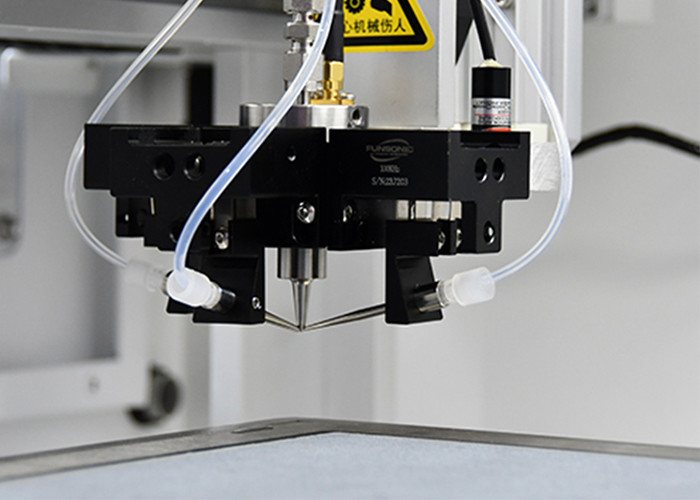

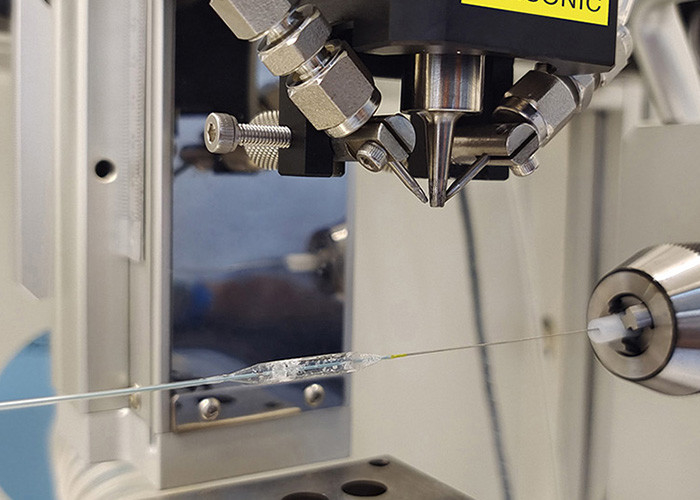

Ultrasonic drug balloon catheter coating system, an ultrasonic coating device especially for drug coating of drug balloon catheters. It is equipped with micro-fine ultrasonic nozzle or agglomerated ultrasonic nozzle to prepare drug coating on balloon catheters by ultrasonic spraying technology. It is characterized by precise control of drug application volume, uniform coating, and no pinhole orange peel defects. Equipped with special balloon catheter clamps and rotating mechanism, it can be used for drug coating of various drug balloon catheters such as coronary balloons and peripheral balloons, and is a widely used drug balloon precision coating equipment.
FUNSONIC can customize the solution to meet the customer's throughput requirements. The drug balloon catheter coating machine can be equipped with multiple nozzles and balloon fixture systems to allow for simultaneous multi-balloon coating.
Parameters:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ultrasonic Balloon Catheter Spraying Has The Following Advantages:
1. Uniformity: Ultrasonic vibration can evenly distribute the spray agent on the surface of the balloon catheter, avoiding uneven coating or spots.
2. Adhesion: The vibration effect of ultrasound can increase the contact force between the spray agent and the surface of the balloon catheter, improving the adhesion and durability of the coating.
3. Saving spray agents: Ultrasonic spraying can atomize spray agents into small particles, improve spraying efficiency, and reduce the amount of spray agents used.
Ultrasonic balloon catheter spraying technology has a wide range of applications in the medical field, which can be used for drug coatings, biomaterial coatings, and other aspects to improve the performance and therapeutic effect of balloon catheters.
