| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 20-200khz For Optional |
|---|---|---|---|
| Max Power: | 15w | Continuous Spraying Volume Max: | 0.01-2ml/min |
| Effective Spraying Width: | 1-m | Spray Uniformity: | <5% |
| Solution Viscosity: | ≤15ps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Ultrasonic Precision Coating Sprayer,Blood Anticoagulant Vollection Tube Sprayer,Precision Ultrasonic Spray Coating Machine |
||

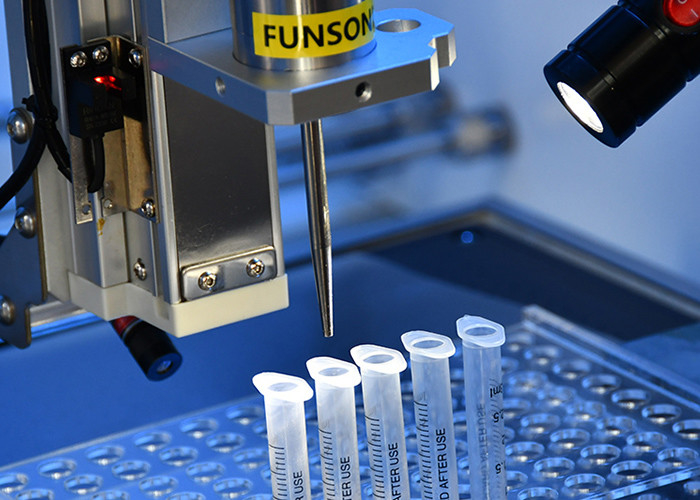

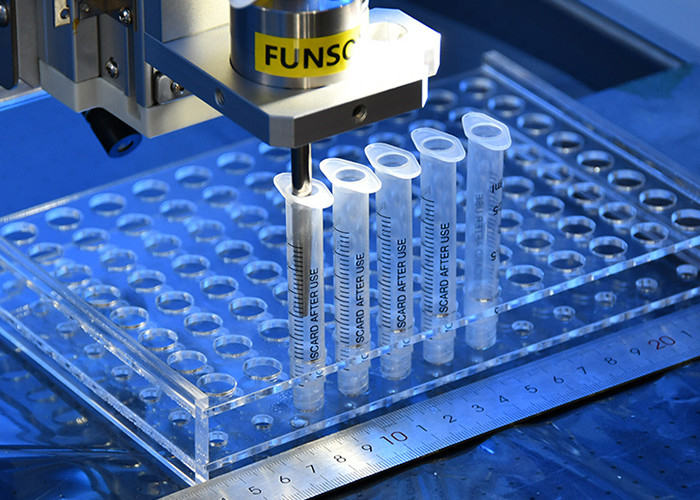

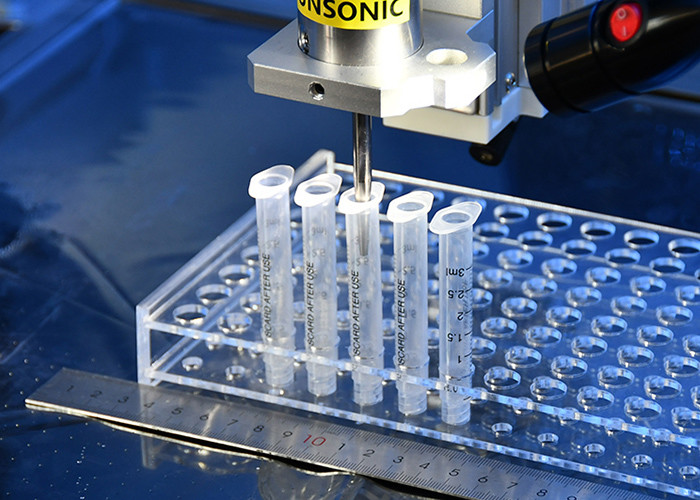

Ultrasonic Precision Coating Of Blood Anticoagulant Vollection Tube Sprayer
Description:
Ultrasonic Precision Coating of Blood Anticoagulant Vollection Tube has always been considered as the leading coating technology for blood collection tubes (BCT) and syringe tubes. The coating spraying of blood collection vessels enables customers to integrate the advantages of precision ultrasonic coatings into their production lines.
The ultrasonic blood collection and spraying system is specifically designed for the application of blood collection tube coatings, such as clot activators and anticoagulants. Ultrasonic technology provides excellent coating uniformity and repeatability. An example of the application of ordinary blood collection ultrasound spraying is to spray a silica coating to accelerate coagulation. Spray the silica slurry onto the pipe wall to form a uniform film of silica particles. Ultrasonic spray is beneficial in this particular application because ultrasonic vibration of the nozzle will destroy any silica aggregates, thus ensuring uniform coating on the pipe wall. In addition, different lengths of nozzles can also be configured, depending on the diameter and length of the pipe.
Ultrasonic Precision Coating of Blood Anticoagulant Vollection Tube uniformly applies coagulant activator and anticoagulant, including heparin, EDTA, silica, and acidic citrate glucose. Specially designed for easy integration into large-scale OEM production lines. Ultrasonic spraying technology provides excellent coating uniformity and repeatability, with precise fine-tuning to produce tighter droplet distribution and smaller droplets, achieving consistent and rapid drying of dispersions.
Parameters:
| Product Type |

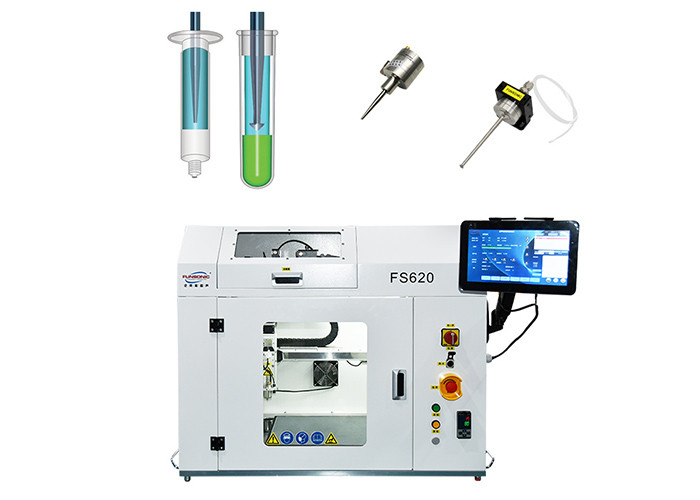

Intelligent Ultrasonic Precision Coating Machine desktop Type |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-m |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Solution Viscosity | ≤15cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.01MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Advantages Of Coating On Blood Collection Vessels And Syringe Needles :
1. Unique ultrasonic atomization technology can accurately control the droplet size.
2. The ultrasonic oscillation function can disperse solid polymers in the solution.
The position of the coating on the cylinder wall can be adjusted through a program for on-demand design.
4. Multiple groups of nozzles can be linked together, greatly improving production efficiency.
5. It can be fully automated through program control without human intervention, improving product quality.
6. Automatic cleaning, ultrasonic nozzles require almost no special maintenance.
7. Able to control the coating area to a specific area on the pipe wall.
