Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS150 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spray Coated Machine | Frequency: | 20-200Khz For Optional |
|---|---|---|---|
| Power: | 1-15w | Automized Particle Size Range: | 15-20μm |
| Spray Flow: | 0.01-50ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <8μm | Application: | Suitable For Qualitative Experiments |
| Highlight: | Laboratory ultrasonic spray coating machine,Simple ultrasonic spray coating machine,Precision ultrasonic spray coater |
||
Precision Laboratory Specific Ultrasonic Simple Spraying Coated Equipment
Description:
FUNSONIC is a manufacturing enterprise dedicated to providing ultrasonic precision spraying applications and complete equipment solutions, offering comprehensive ultrasonic spraying solutions and high-quality products to all customers. FUNSONIC mainly provides precision spraying equipment for various industries such as fuel cell spraying machines, thin film photovoltaic cell spraying machines, thin film solar coating spraying machines, perovskite solar cell spraying machines, solar cell spraying machines, graphene coating machines, silicon photovoltaic cell coating machines, glass coating coating machines, electronic circuit coating machines, etc.
The FUNSONIC ultrasonic precision spraying machine can be equipped with any FUNSONIC independently developed ultrasonic nozzle, and the 25Khz to 150kHz ultrasonic atomization nozzle can be selected according to the needs of different atomized particle sizes. At the same time, according to different solution and process requirements, FUNSONIC has designed and developed various spray nozzles with different spraying effects, such as wide width, scattering, gathering, long nozzle, etc.
FUNSONIC is deeply rooted in the ultrasonic application industry, integrating research and development, production, sales, and after-sales service, providing customers with solutions with rich industry experience.
Parameters:
| Product Type | Ultrasonic Precision Spraying Coated Machine Laboratory desktop Type FS150 |
| Spray Nozzle Operating Frequency | 20-200KHz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | X. Y-axis and Z-axis linear track motion module, performing up and down/front and back/left and right movements |
| Motion controller | Operating software system, parameter settings |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A |
Advances :
1. High precision: Ultrasonic spraying can achieve micrometer level coating thickness, suitable for applications that require high coating quality.
2. Uniformity: During the spraying process, ultrasonic waves can produce a uniform atomization effect, ensuring the uniform distribution of the coating.
3. Material saving: Due to precise spraying, there is less waste of materials, which reduces production costs.
4. Wide applicability: It can be used for various liquid materials, including water-based, oil-based, and high viscosity liquids.
5. Environmental Protection: Ultrasonic spraying reduces the use of organic solvents and meets environmental protection requirements.

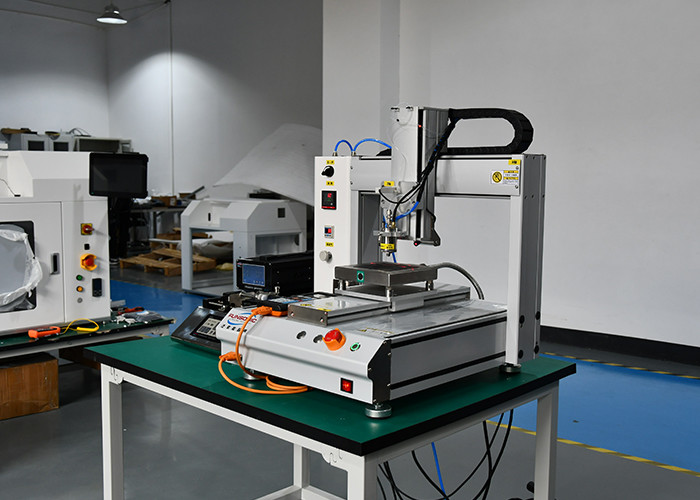

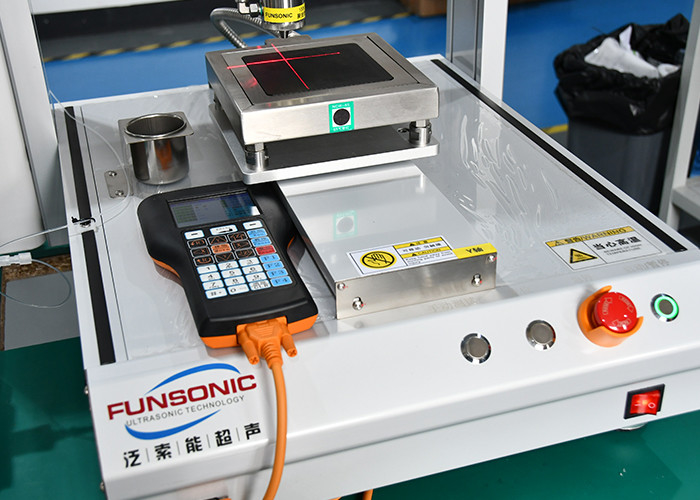

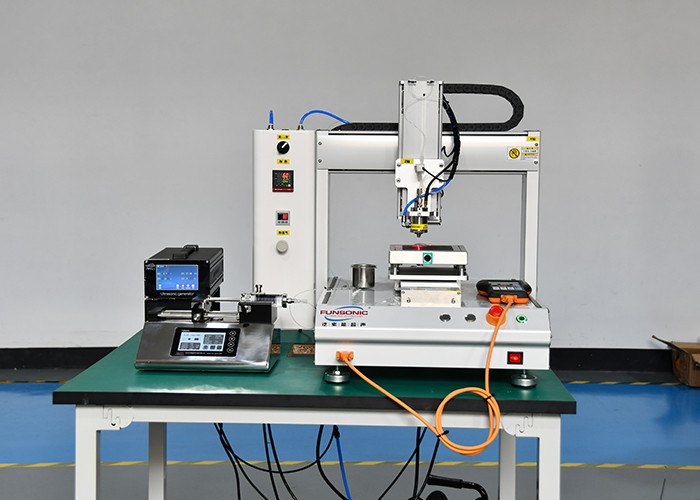

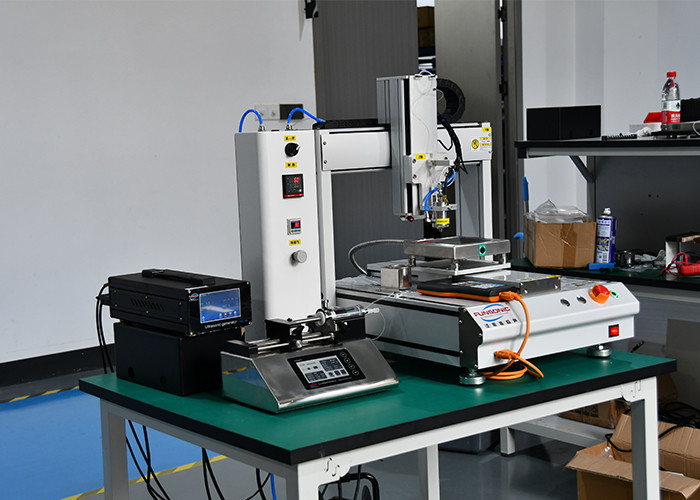

Precision Laboratory Specific Ultrasonic Simple Spraying Coated Equipment
