Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4004-X |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Vacuum Blood Collection Tube Spraying, Syringe Silicone Oil Spraying |
| Highlight: | Ultrasonic Coating Inner Pipelines Penetrator Nozzles,High Speed ultrasonic nozzle,Fully Automatic ultrasonic nozzle |
||

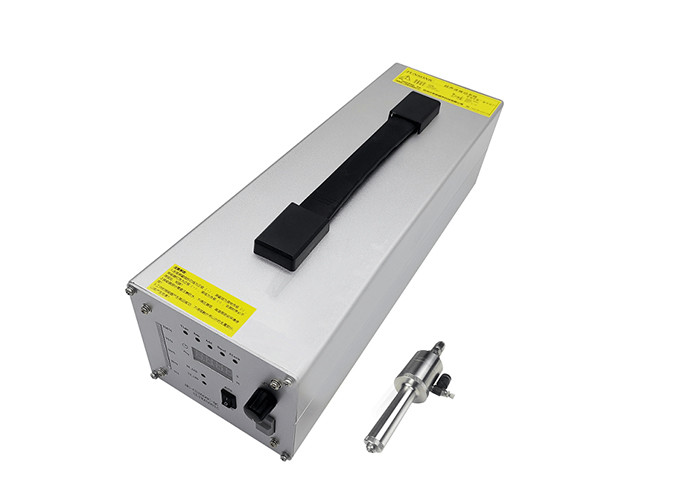

High Speed Fully Automatic Ultrasonic Coating Inner Pipelines Penetrator Nozzles
Description:
The ultrasonic probing atomization long nozzle nozzle is a device accessory that uses ultrasonic technology to atomize liquids, with a special design and function.

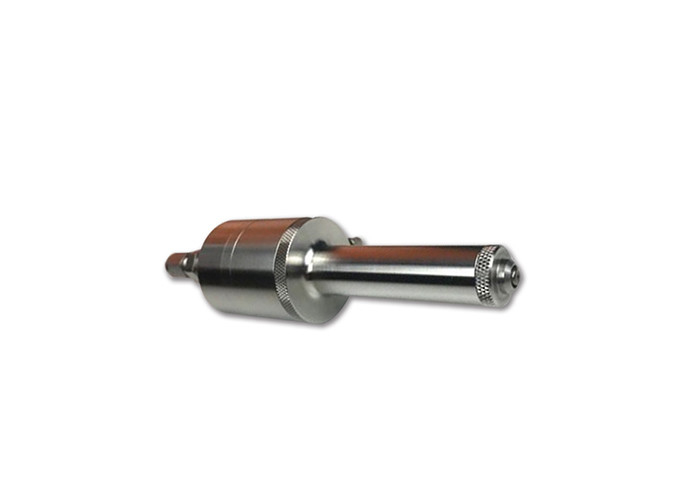

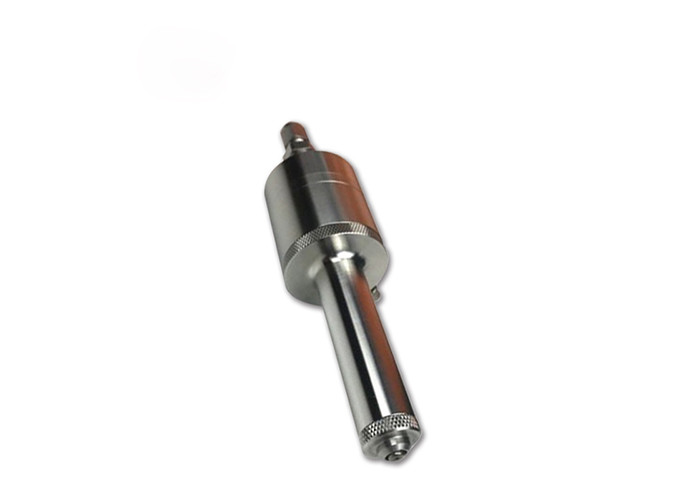

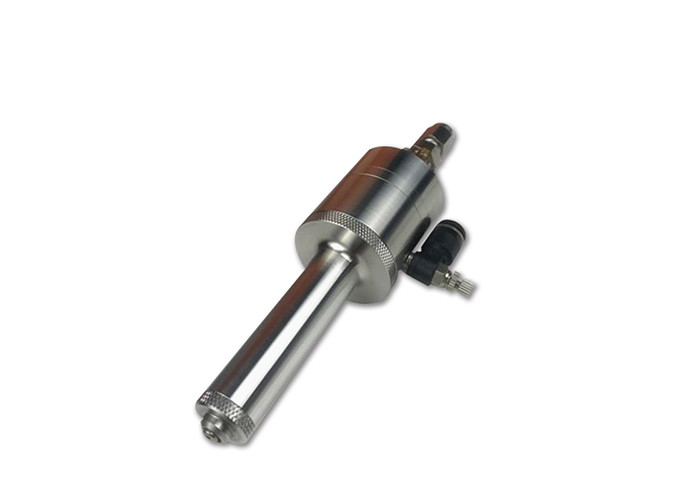

This type of nozzle is usually made of a slender metal tube, which is equipped with an ultrasonic transmitter and receiver inside the tube. The ultrasonic transmitter generates high-frequency sound waves and ultrasonic vibrations at the tip of the nozzle. When the liquid passes through the nozzle, ultrasonic vibration will disperse the liquid into small droplets, forming a mist like spray.
Ultrasonic probe atomizing long nozzle nozzles are often used in situations where small droplets need to be generated, such as spray cooling, moist air, spray coating, etc. Due to its slender design, it can easily enter narrow or difficult to reach areas and achieve a uniform atomization effect.
Parameters:
| Model | FSW-4004-X |
| Name | 40Khz Probe Ultrasonic Nozzle Atomization |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying |
Advantages of ultrasonic probing atomization spraying:
1. The ultrasonic tool head can penetrate narrow spaces and spray paint on pipelines
2. Specific positions inside the pipeline can be sprayed with a uniform micrometer thick coating
3. Ultrasonic atomization spraying can reduce downtime in critical production processes
4. Ultrasonic atomization spraying with ultra-low flow rate, capable of intermittent or continuous operation
5. Highly controllable spray volume, more reliable spray quality
6. Low energy consumption, high atomization efficiency, and relatively small restrictions on atomized liquids
7. It can reduce waste and air pollution caused by reverse spraying, and save costs
8. No pressure, no noise, no wear or blockage of moving parts
9. The atomizing nozzle is made of titanium alloy material, which has strong height and strong corrosion resistance
