Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-6004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Vacuum Blood Collection Tube Spraying, Syringe Silicone Oil Spraying |
| Highlight: | Vacuum Blood Collection Tube Coating Nozzles,60khz Ultrasonic Nozzles,ultrasonic nozzle 60khz |
||
Vacuum Blood Collection Tube Coating 60khz Ultrasonic Nozzles
Description:
The ultrasonic probing atomization nozzle system can manufacture different atomization particle sizes and spraying widths through different frequencies and airflow channel designs, adapting to different spraying requirements such as area, thickness, and smoothness, especially for special environmental applications such as narrow spaces.
Typical applications include vacuum blood collection tube spraying, syringe silicone oil spraying, etc. FUNSONIC provides a complete ultrasonic spraying solution for vacuum blood collection and spraying. The controllable ultrasonic nozzle can perform ultrasonic spraying with 5-10 parallel heads, and the distance between the two nozzles is only 25mm. It can be directly used in existing vacuum blood collection production lines. Combined with a dedicated precision metering pump, the anticoagulant is evenly sprayed into the inner wall of the vacuum blood collection vessel, with a production speed of up to 12000 tubes per hour.
Parameters:
| Model | FSW-6004-L |
| Name | 60Khz Probe Ultrasonic Nozzle Atomization |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying |
Features:
Narrow space exploration ultrasonic spraying

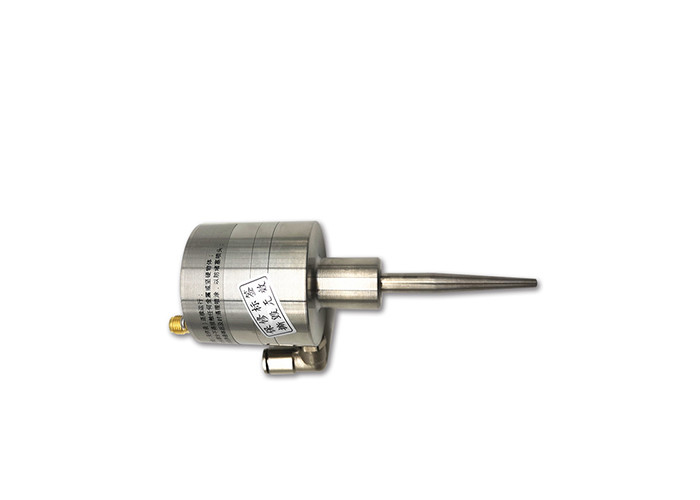

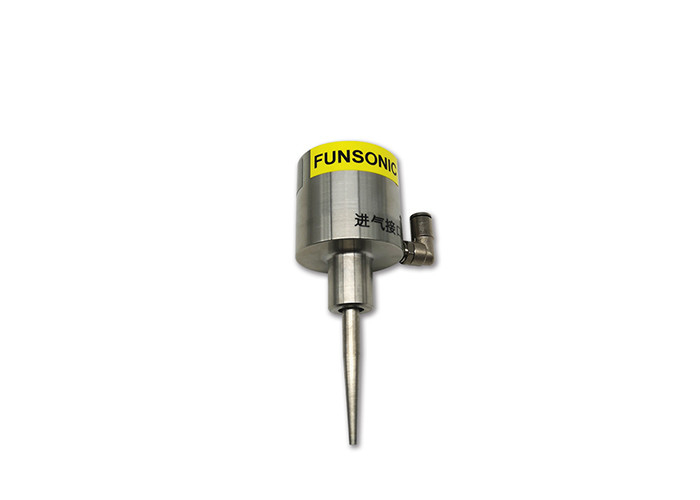

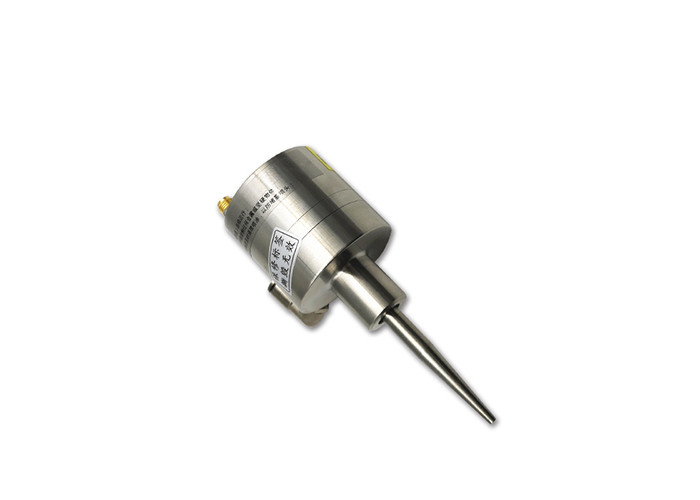

The ultrasonic probe type nozzle is an extended ultrasonic atomization nozzle that uses ultrasonic atomization nozzle technology. Through the design of the extended nozzle front end, the ultrasonic nozzle can be inserted into narrow spaces for spraying. It is mainly used to probe into the inner wall of pipelines for spraying applications.
The probe in nozzle is designed for easy integration into high-yield production lines, and its unique elongated design allows it to be used with multiple parallel test tube racks. The integration of probe in ultrasonic nozzle and intelligent ultrasonic generator technology provides superior coating uniformity and repeatability. The precise fine-tuning ability of the ultrasonic power supply can generate a tighter droplet distribution, finer droplets, and faster drying of dispersed substances.
The ultrasonic atomization spraying system is one of the choices for generating internal coatings on medical equipment such as blood collection tubes (BCTs) and syringe syringes. The ultrasonic blood collection spray system can evenly apply clot activators and anticoagulants, including materials such as silica and acidic citrate glucose, inside the blood collection vessel. The ultrasonic nozzle can also spray drugs onto the desired spraying area of the blood collection vessel or syringe, avoiding unnecessary waste of raw materials.

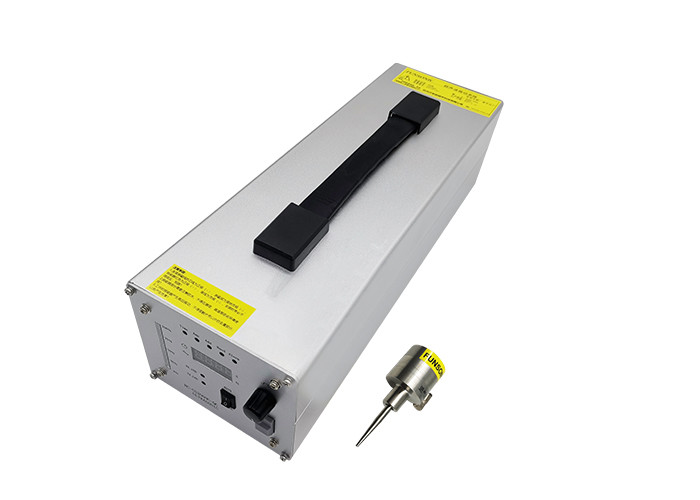

Vacuum Blood Collection Tube Coating 60khz Ultrasonic Nozzles
