Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Vacuum Blood Collection Tube Spraying, Syringe Silicone Oil Spraying |
| Highlight: | Ultrasonic Spray Coating Nozzle,40Khz Ultrasonic Spray Coating Nozzle,Precision Spraying Coating Nozzle |
||

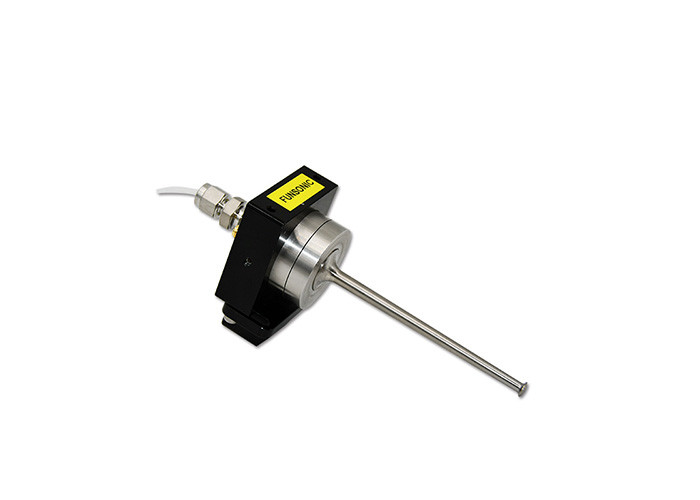

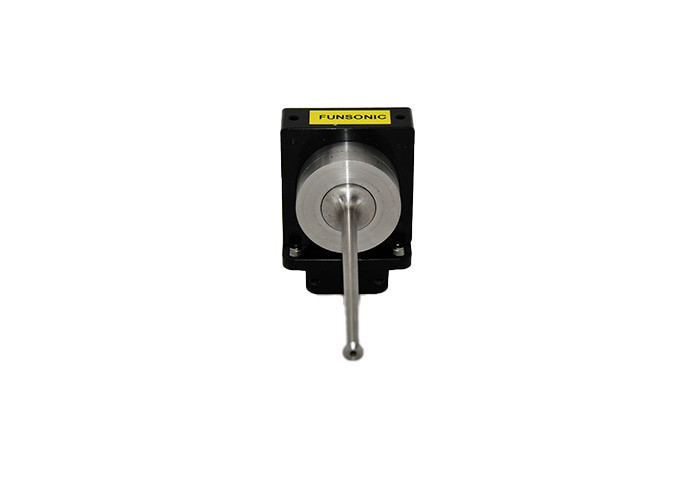

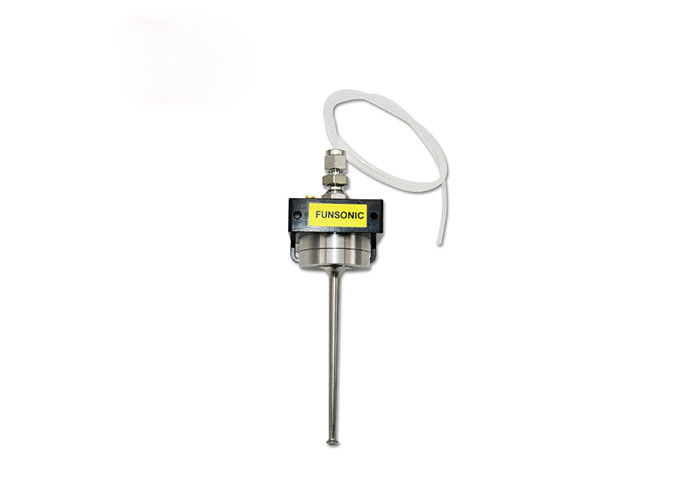

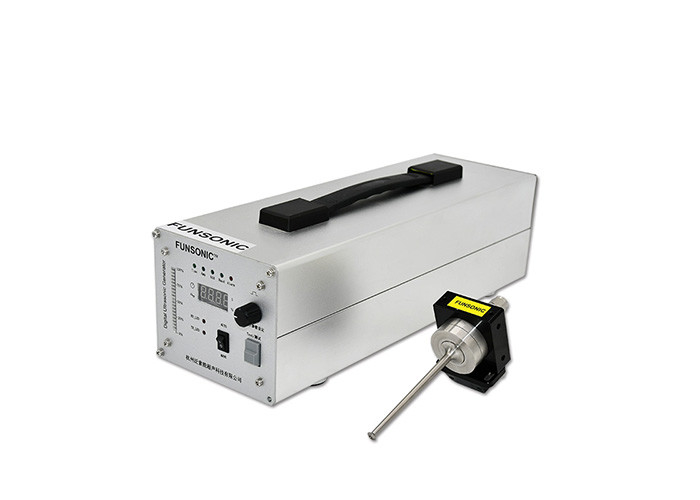

40Khz Probe Type Ultrasonic Spray Coating Nozzle for Ultrasonic Precision Spraying Coating Machine
Description:
The probing type (long mouthed) aims to produce reproducible thin lines, down to 0.5mm. In very small volume applications, low pressure air/gas is used to focus spray into very thin lines. The long mouthed design creates the thinnest and clearest lines among all nozzles. Can be applied for in vitro spraying.
The probe type ultrasonic nozzle is an extended type of ultrasonic atomization nozzle. It adopts ultrasonic atomization nozzle technology and extends the ultrasonic nozzle into a narrow space for spraying by extending the front end design of the nozzle. It is mainly used for probing the inner wall of pipelines for spraying applications.
Parameters:
| Model | FSW-4004-L |
| Name | 40Khz Probe Ultrasonic Nozzle Atomization |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying |
Ultrasonic spraying technology has the following advantages in terms of efficiency:
1. Rapid spraying speed: Ultrasonic spraying technology can achieve rapid coating applications. Due to the effect of ultrasound, the sprayed liquid can be better atomized and dispersed, resulting in a higher spraying speed. Compared to traditional spraying techniques, ultrasonic spraying can improve the coverage speed of coatings and accelerate production efficiency.
2. High coating quality: Ultrasonic spraying technology can provide high-quality coatings. It can achieve uniform distribution and adhesion of coatings, reducing coating waste and defects. This means that ultrasonic spraying technology can achieve higher quality coatings within the same time frame, reducing the need for subsequent repairs and repainting, thereby improving efficiency
3. Save spraying materials: Ultrasonic spraying technology can more effectively utilize spraying materials. Due to the effect of ultrasound, the spraying liquid can be better atomized and dispersed, and the utilization rate of spraying materials is higher. Compared to traditional spraying techniques, ultrasonic spraying can reduce the waste of spraying materials and lower production costs.
4. Automation and Integration: Ultrasonic spraying technology can be integrated with automation systems and production lines to achieve automated spraying processes. By combining with robots or automatic spraying equipment, ultrasonic spraying technology can achieve highly automated coating applications, improve production efficiency and consistency.
In summary, ultrasonic spraying technology has achieved efficient coating applications through fast spraying speed, high coating quality, material savings, and the advantages of automation and integration. This makes it an ideal choice for improving production efficiency and reducing costs in many industries.
40Khz Probe Type Ultrasonic Spray Coating Nozzle for Ultrasonic Precision Spraying Coating Machine
