Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-1003-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 100Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <10μm | Application: | Suitable For Brackets, Balloon Conduits, Wires, Flux For Selective Welding Applications, Etc. |
| Highlight: | Focusmist Nozzle Spraying Coating System nozzle,ultrasonic nozzle 100Khz |
||
Ultrasonically Membrane Electrode Atomization Spraying Coating System 100Khz Focusmist Nozzle
Description:
The gathering type ultrasonic nozzle is an ultrasonic atomizing nozzle with small spray width. Typical applications include fuel cell spraying, which is membrane electrode spraying in proton exchange membrane fuel cells. The dispersed catalyst (such as platinum carbon catalyst) is sonicated and sprayed onto the proton exchange membrane to form a uniform and dense membrane electrode. Due to the advantages of agglomeration and centralized spraying, agglomeration ultrasonic atomization nozzles can be used for precision spraying on small areas. Therefore, agglomeration ultrasonic atomization nozzles can also be used for spraying on the surface of medical devices such as drugs. Balloon coating and drug stent coating. Dissolve drugs such as rapamycin and paclitaxel in organic solvents to form a drug solution, use a concentrated ultrasonic nozzle for ultrasonic atomization, and then evenly spray on the balloon or stent to form a uniform and dense drug coating on the surface of the balloon catheter and stent. In addition, the agglomerated ultrasonic nozzle can also be applied to thin film solar cell coatings, perovskite solar cell coatings, PCB flux coatings, and other applications.
Parameters:
| Model | FSW-1003-L |
| Name | 100Khz Gathering Ultrasonic Nozzle Atomization |
| Frequency | 100Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 2-20 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-30 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for Brackets, balloon conduits, wires, flux for selective welding applications, etc. |
Ultrasonic spraying machine is suitable for various coating formulations, including but not limited to the following:
1. Waterborne coatings: Waterborne coatings are environmentally friendly coatings that use water as the main solvent. Ultrasonic spraying machine can effectively disperse water-based coatings into small particles and spray them onto the target surface.
2. Solvent based coatings: Solvent based coatings use organic solvents as the main solvent. Ultrasonic spraying machine can disperse solvent based coatings into small particles and spray them onto the target surface through airflow.
3. UV cured coating: UV cured coating is a special type of coating that requires rapid curing through UV irradiation. Ultrasonic spraying machine can evenly spray UV cured coating onto the target surface for UV curing.
4. Powder coating: Powder coating is a solid granular coating that typically requires electrostatic adsorption or electrostatic spraying. However, ultrasonic spraying machines can also be used to disperse powder coatings into small particles and spray them onto the target surface through airflow.

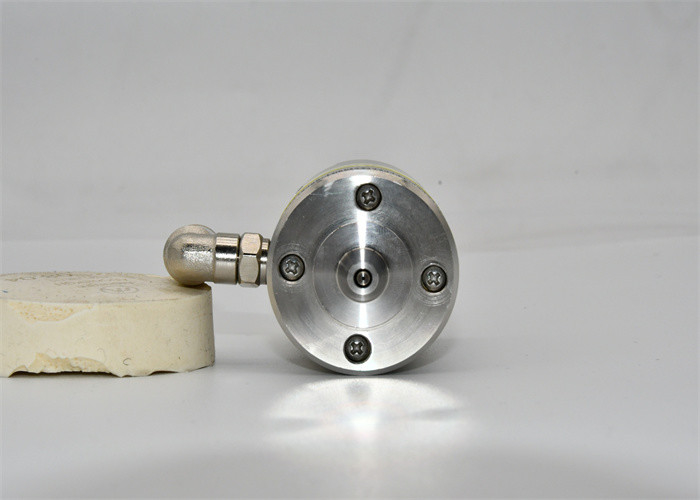

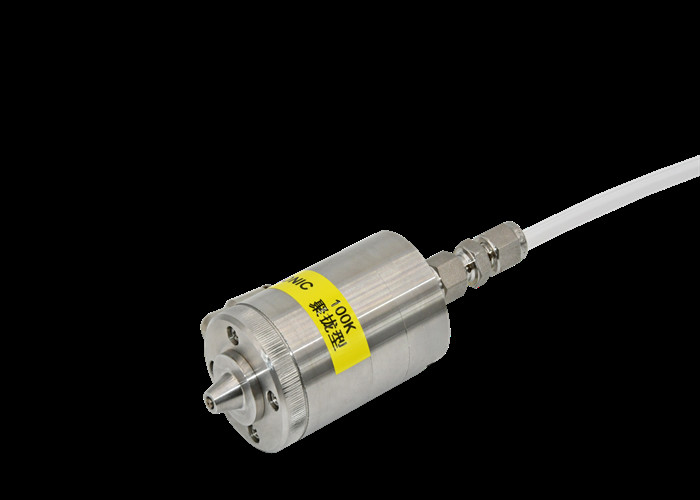

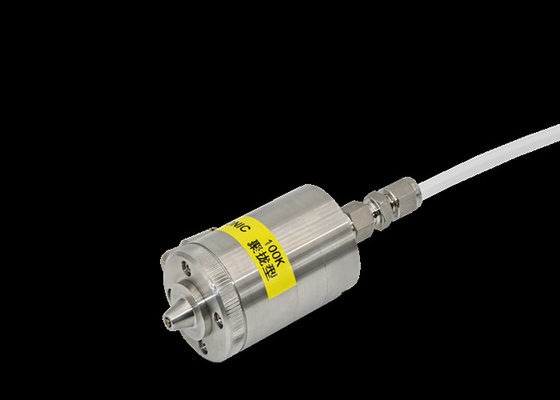

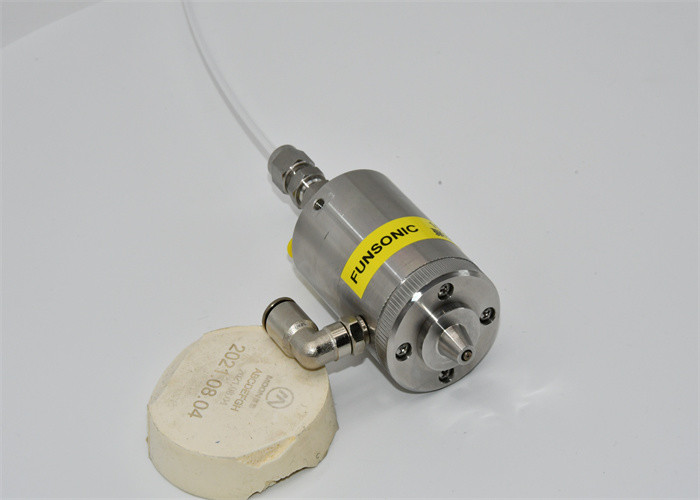

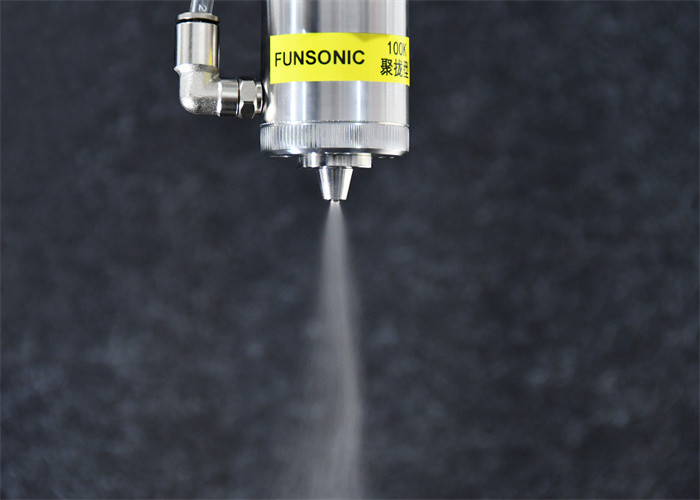

Ultrasonically Membrane Electrode Atomization Spraying Coating System 100Khz Focusmist Nozzle
