| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS800 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.5-10ml/min |
| Effective Spraying Width: | 1-m | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤15cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Medical Testing Tube Ultrasonic Coated System,Ultrasonic Coated System 60Khz,Penetrator Nozzle Nebulizer Ultrasonic Coated System |
||
Medical Testing Tube Ultrasonic Coated System 60Khz Penetrator Nozzle Nebulizer
Description:

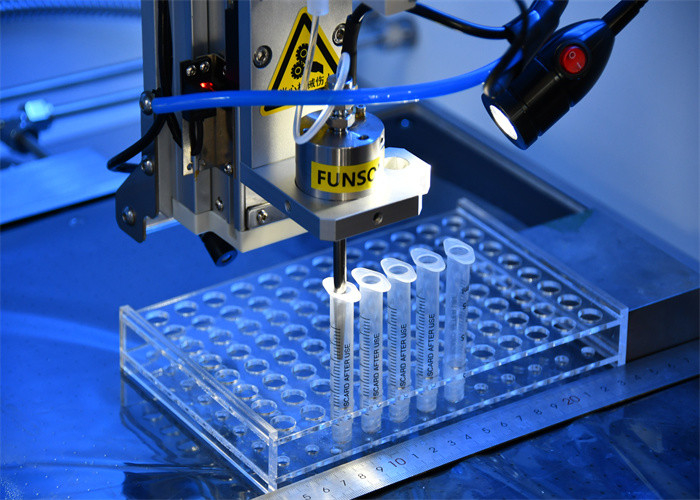

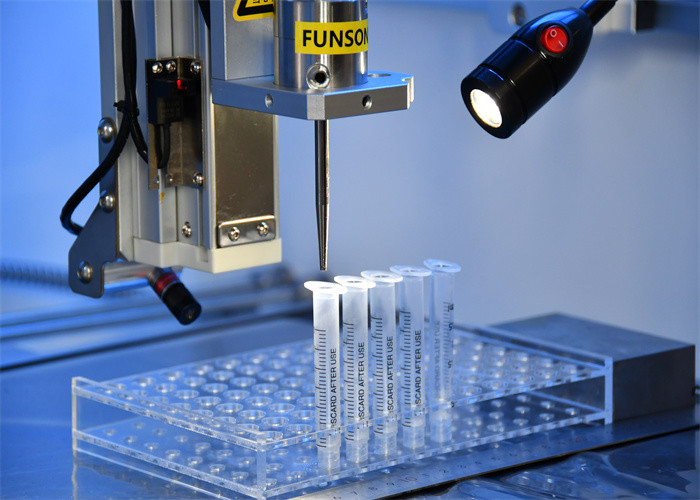

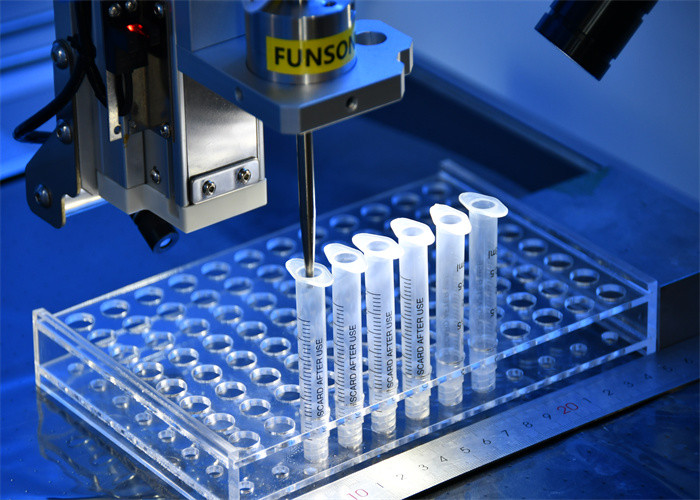

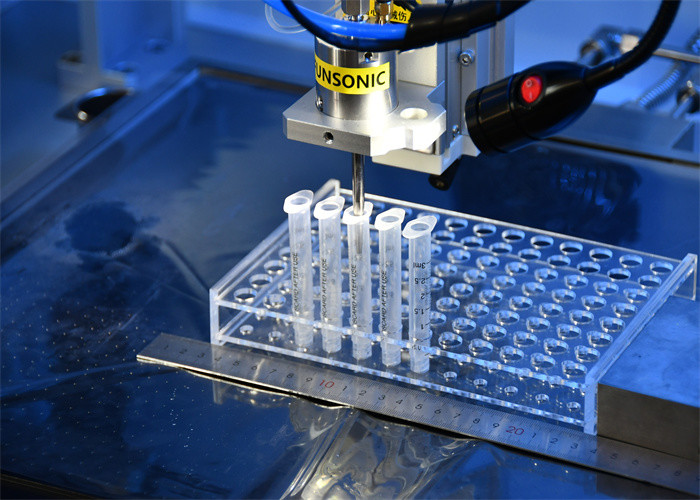

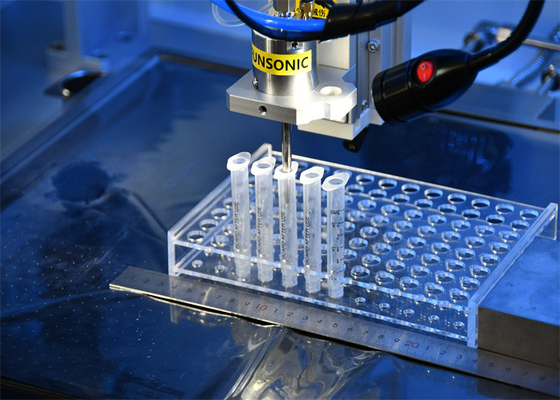

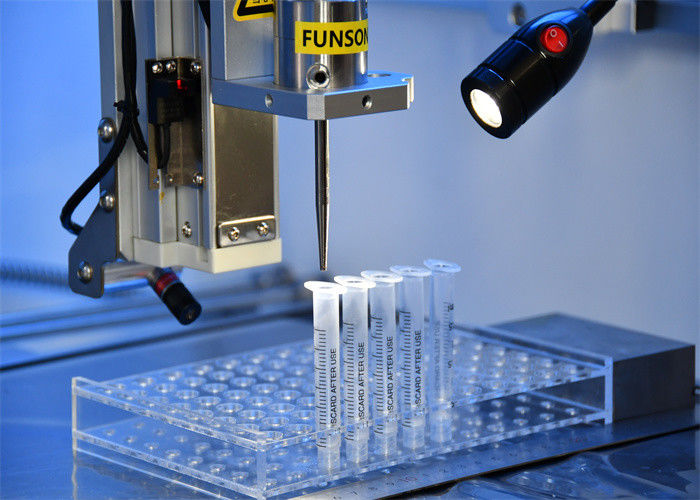

The vacuum blood collection and ultrasonic spraying technology uses a probe type ultrasonic nozzle to coat the inner wall of the blood collection or injection tube. It mainly has the following applications:
1. Surface coating of blood collection vessels: Ultrasonic probing spray can be used to form a thin film or coating on the surface of vacuum blood collection vessels. This coating can be used to improve the biocompatibility, anticoagulation, or prevent thrombosis of blood collection vessels.
2. Antibacterial coating: Through ultrasonic probing spraying, antibacterial agents or materials with antibacterial properties can be sprayed on the surface of vacuum blood collection vessels. This helps to reduce the risk of bacterial contamination during the blood collection process of blood collection vessels.
3. Vascular markers: Ultrasonic probing spray can be used to spray visible markers, such as fluorescent dyes or other visualization agents, on vacuum blood collection vessels. This helps to make it easier to observe and locate the blood collection vessel during the blood collection process.
Parameters:
| Product Type | Syringe Tube Ultrasonic Spray Coating FS800 |
| Spray Nozzle Operating Frequency | 60KHz (Optional 40Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-m |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Solution Viscosity | ≤15cps |
| Temperature Range | -10-60℃ |
| Diversion Pressure Max | ≤0.01MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | XYZ adopts imported servo motors for all three axes |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
The selection of nozzle shape and size for ultrasonic spraying machines requires consideration of multiple factors, including coating properties, spraying requirements, and equipment specifications. Here are some general guiding principles:
1. Coating viscosity: Coatings with lower viscosity typically require smaller nozzle apertures and smaller outlet diameters to ensure uniform and smooth spraying. Higher viscosity coatings may require larger nozzle apertures and outlet diameters for better spraying of the coating.
2. Spraying requirements: The goals and requirements of spraying can also affect the selection of nozzles. For example, if you need to achieve small spray patterns or fine spray control, you may need to choose a nozzle with a smaller nozzle outlet. For applications that require large-scale rapid spraying, it may be necessary to choose a nozzle with a larger nozzle outlet.
3. Particle size of coating: Ultrasonic spraying machines are usually used to disperse coatings into small particles for spraying, so the size of coating particles also affects the selection of nozzles. Smaller paint particles typically require a smaller nozzle aperture.
4. Equipment specifications: The specific specifications and design of the ultrasonic spraying machine may also limit the selection of nozzles. It is necessary to select a matching nozzle based on the technical specifications, operating frequency, amplitude and other parameters of the equipment.
When selecting a nozzle, it is usually necessary to conduct experiments and tests to determine the optimal nozzle shape and size. It can be evaluated and adjusted based on factors such as the fluidity of the coating, spraying effect, and coating thickness. In addition, you can consult the professional technical team of FUNSONIC. FUNSONIC has professional spray application engineers who can provide more specific advice and guidance.
