Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS1005 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 120Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-1ml/min |
| Effective Spraying Width: | 1-5mm | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤10cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | 120Khz Ultrasonic Coating Equipment,High Frequency Ultrasonic Coating Equipment,Simultaneous Multi-balloon Ultrasonic Coating Equipment |
||
Description:
Balloon ultrasonic spraying equipment is a medical device that combines balloon dilation and ultrasonic spraying technology, used for spraying operations in medical surgery. It usually includes the following main components:
1. Balloon catheter: A balloon catheter is a soft, expandable catheter with a balloon at its end. Balloons can be expanded by inflation or liquid injection to create a stable workspace in the target area.

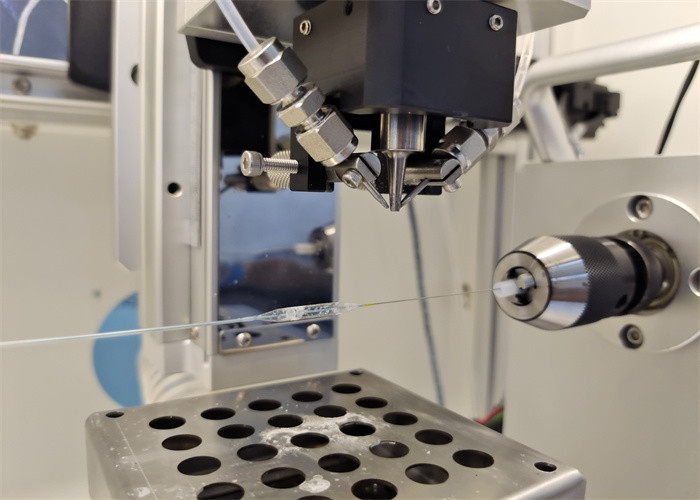

2. Ultrasonic Spray System: The balloon catheter is equipped with an ultrasonic spray system, including an ultrasonic nozzle, spray agent supply system, and paint transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles and spray them onto the target surface through airflow.
3. Control system: used to control the operation of the entire equipment and adjust spraying parameters. Control systems typically include touch screen interfaces or computer interfaces for users to set spraying parameters, monitor device status, and adjust operating modes.
The working principle of the balloon ultrasonic spraying equipment is to introduce the balloon catheter into the target area during surgery, and then inflate or inject liquid to expand the balloon and stabilize the position of the catheter. Next, the ultrasonic spraying system will atomize the spraying agent and spray it onto the target tissue or surface to achieve the spraying operation.
Parameters:
| Product Type | Balloon Catheter Ultrasonic Coating System FS1005 |
| Spray Nozzle Operating Frequency | 120KHz (Optional 100150Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-5mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤10cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-25μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |

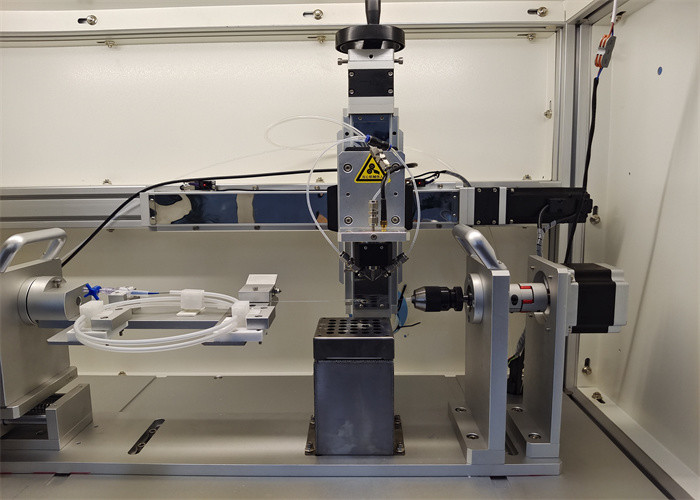

| Control Mode | X-axis servo motor+rotating R-axis, action can be independently programmed |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
| Operation | Clamp at both ends, supporting the lifting and clamping of excess conduit coils |
The balloon ultrasonic spraying equipment combines balloon expansion and ultrasonic spraying technology, and has some characteristics and advantages, as follows:
1. Accurate spray positioning: The balloon catheter can expand in the target area through inflation or liquid injection, providing a stable workspace. This allows the spraying operation to more accurately locate the target tissue or surface, reducing errors and damage.
2. Uniform spraying coverage: The ultrasonic spraying system uses ultrasonic vibration to atomize the spraying agent into small particles, and evenly sprays them into the target area through air flow. This spraying method can achieve more uniform coating coverage, ensuring that the spray agent is evenly distributed in the target area.
3. Controllable spraying parameters: Balloon ultrasonic spraying equipment is usually equipped with a control system, which allows users to set spraying parameters, such as the flow rate of the spraying agent, spraying speed, and spraying mode. This allows medical professionals to make adjustments based on specific circumstances to meet different surgical needs and treatment goals.
4. Multi functional application: Balloon ultrasound spraying equipment can be used in multiple medical fields and application scenarios. It can be used for drug delivery, directly spraying drugs onto target tissues to achieve local treatment. It can also be used for tissue engineering, spraying biomaterials to promote tissue repair and regeneration. In addition, it can also be used for coating applications, such as the coating of vascular stents, to improve their biocompatibility and drug release effects.
5. Reduce surgical trauma: Balloon ultrasound spraying equipment can be introduced through smaller incisions or endoscopes to reduce surgical trauma and recovery time. This is a relatively mild treatment option for patients.

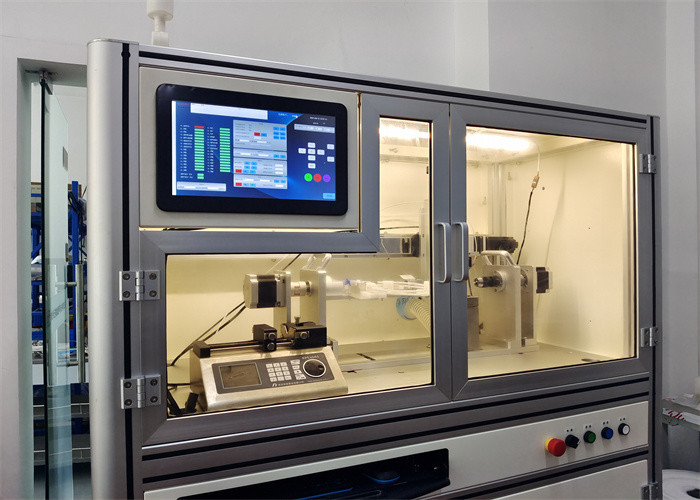

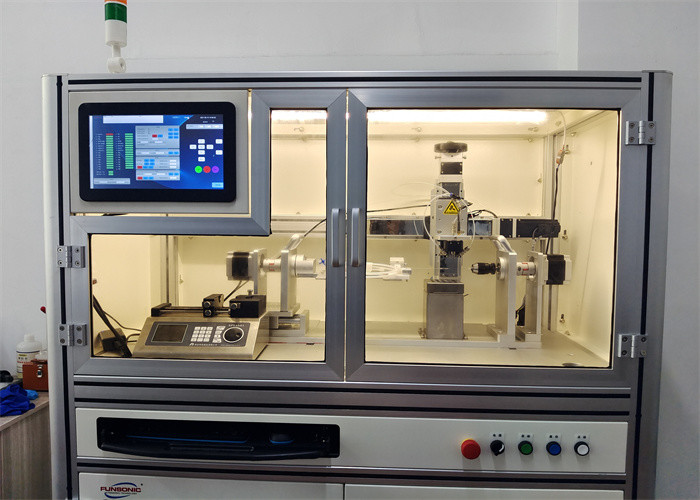

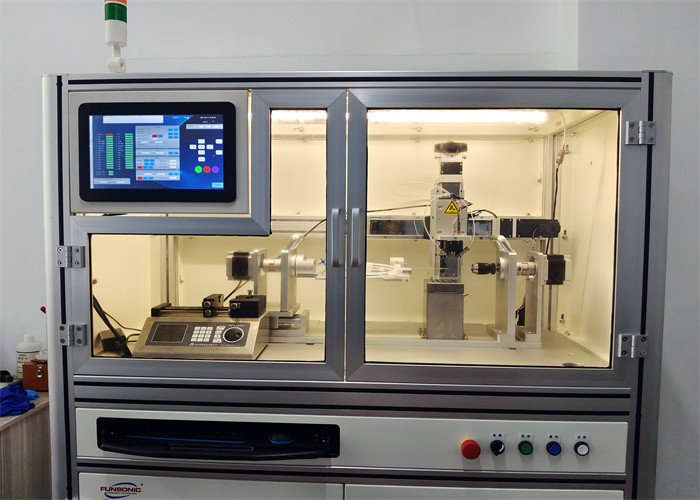

Simultaneous Multi-balloon Ultrasonic Coating Equipment High Frequency 120Khz
