Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS1005 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 120Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-1ml/min |
| Effective Spraying Width: | 1-5mm | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤10cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Ultrasonic Drug Balloon Catheter Coating System,120Khz ultrasonic balloon catheter spraying,ultrasonic balloon catheter spraying 120Khz |
||
Description:
Ultrasonic balloon catheter spraying is a method of spraying on the surface of the balloon catheter using ultrasonic technology.
Balloon catheter is a medical device with dilation and contraction functions, commonly used in vascular intervention surgery. In order to improve the performance and function of balloon catheters, their surfaces can be sprayed, such as coating drugs or biomaterials.
Ultrasonic balloon catheter spraying utilizes the energy of ultrasonic vibration to atomize the spraying agent into small particles and evenly spray them onto the surface of the balloon catheter. The vibration effect of ultrasound can increase the adhesion and uniformity of the spray agent on the surface of the conduit, thereby achieving better coating effects.
FUNSONIC can customize the solution to meet the customer’s throughput requirements. The drug balloon catheter coating machine can be equipped with multiple nozzles and balloon fixture systems to allow for simultaneous multi-balloon coating.
Parameters:
| Product Type | Balloon Catheter Ultrasonic Coating System FS1005 |
| Spray Nozzle Operating Frequency | 120KHz (Optional 100150Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-5mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤10cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-25μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | X-axis servo motor+rotating R-axis, action can be independently programmed |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |

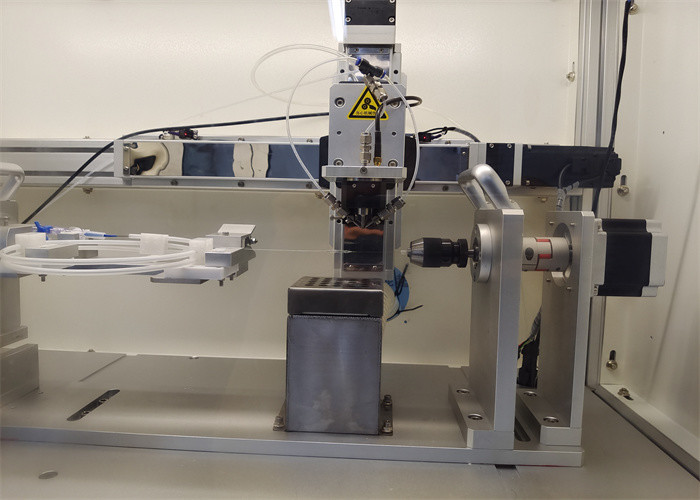

| Operation | Clamp at both ends, supporting the lifting and clamping of excess conduit coils |
The ultrasonic balloon catheter spraying technology has various specific application scenarios in the medical field, including but not limited to the following aspects:
1. Vascular intervention therapy: Ultrasonic balloon catheter spraying technology can be used in vascular intervention therapy, such as coronary stent implantation. By spraying drugs on the surface of the balloon catheter, such as antiplatelet drugs or anti proliferative drugs, the risk of intravascular restenosis can be reduced and surgical treatment effectiveness can be improved.
2. Aneurysm treatment: Ultrasonic balloon catheter spraying technology can be used for the treatment of aneurysms. By spraying polymers or drugs on the surface of the balloon catheter, the filling and solidification of the aneurysm can be achieved, blocking blood flow and achieving therapeutic effects.
3. Bronchial treatment: Ultrasonic balloon catheter spraying technology can be used for the treatment of bronchial diseases, such as airway stenosis or bronchial cancer. By spraying drugs or biomaterials on the surface of the balloon catheter, it is possible to reduce inflammation or inhibit tumor growth in the narrowed area, and improve the patient's respiratory function.
4. Biliary tract treatment: Ultrasonic balloon catheter spraying technology can be used for the treatment of biliary tract diseases, such as bile duct stones or bile duct strictures. By spraying drugs that dissolve stones or materials that dilate the bile duct on the surface of the balloon catheter, patients can be helped to eliminate stones or restore normal patency of the bile duct.
In general, ultrasonic balloon catheter spraying technology is widely used in the medical field in vascular intervention treatment, aneurysm treatment, bronchial treatment, biliary treatment, and other aspects, providing patients with more effective treatment methods and better therapeutic effects.

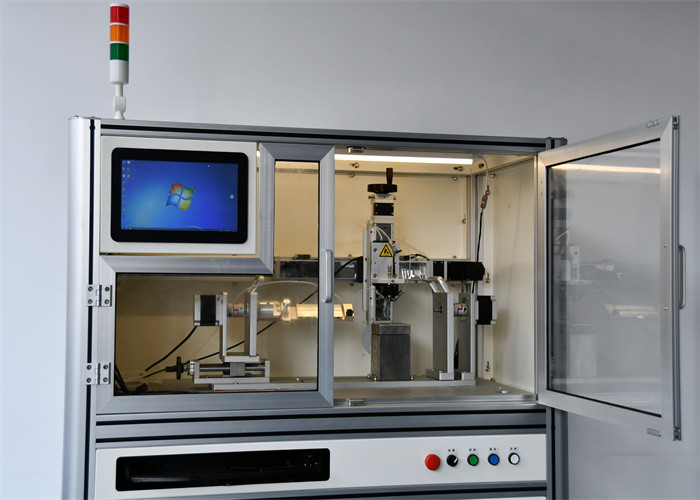

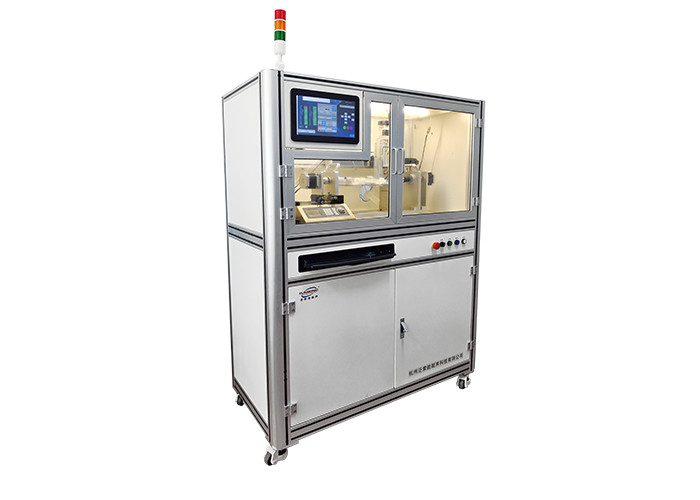

120Khz Ultrasonic Drug Balloon Catheter Coating System
