Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4002-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | 40Khz Scattering Ultrasonic Nozzle Atomization | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-20ml | Liquid Viscosity: | <30cps |
| Particle Size: | <12μm | Application: | Suitable For Full Surface Spraying Of Flux |
| Highlight: | Wide Scattering Ultrasonic Coating Nozzles,Nebulization Device Ultrasonic Coating Nozzles,40Khz Ultrasonic Coating Nozzles |
||

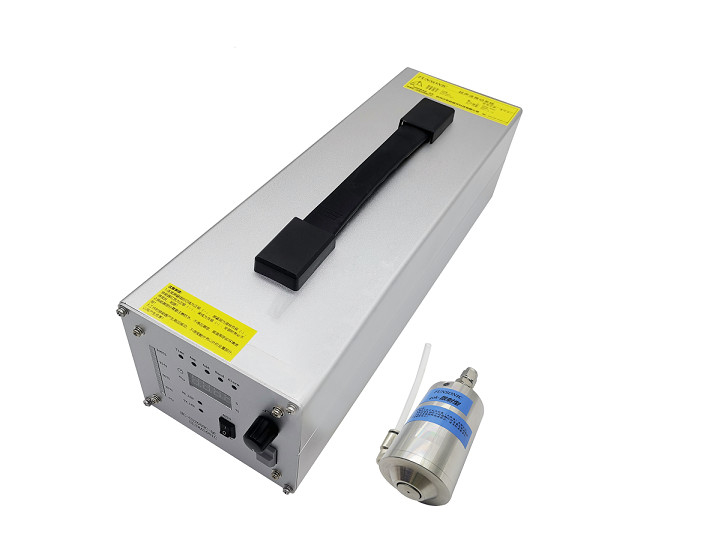

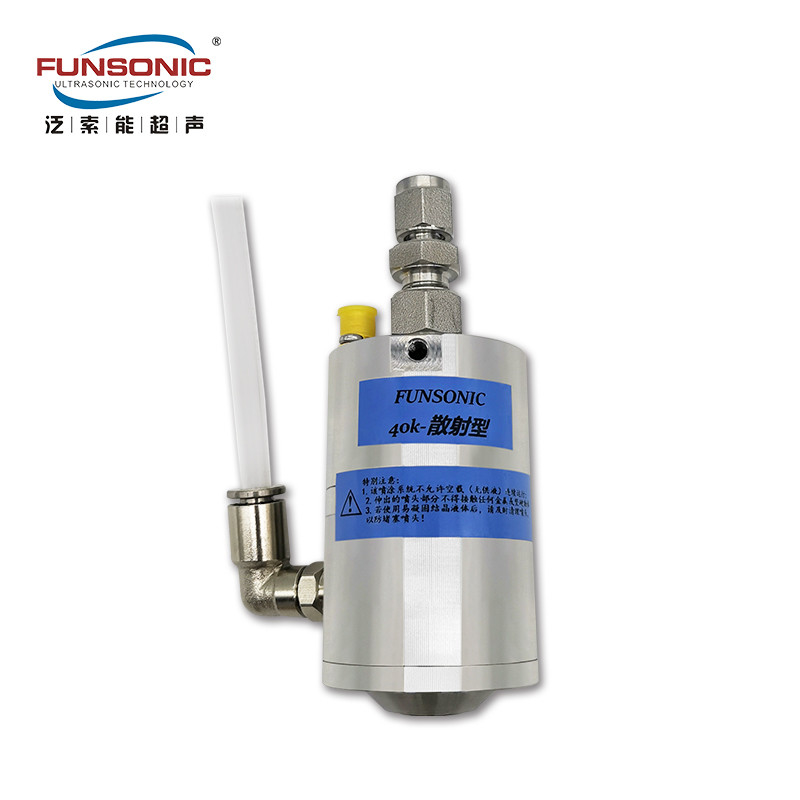

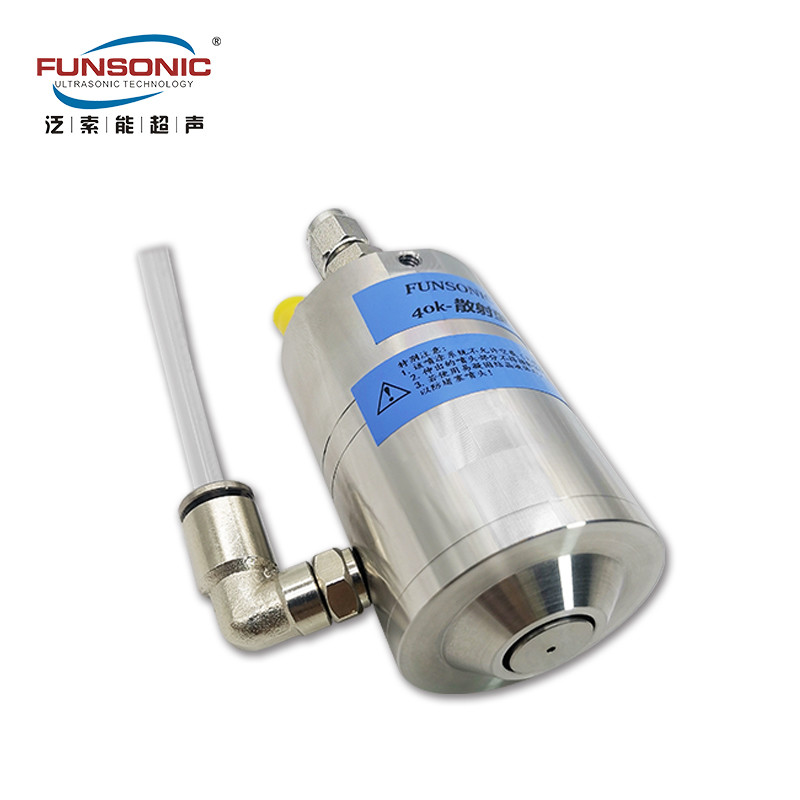

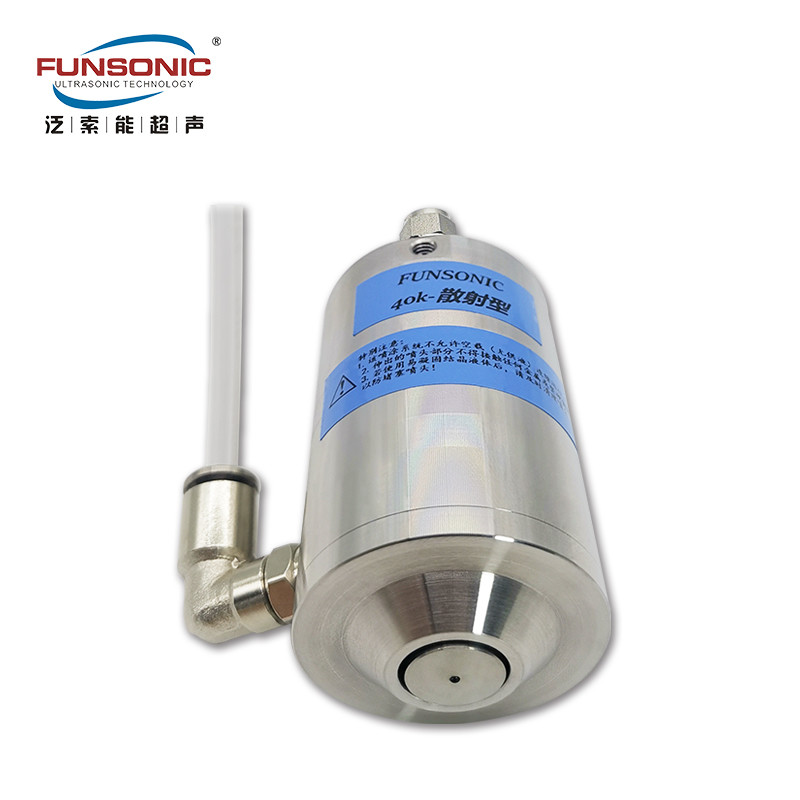

40Khz Ultrasonic Wide Scattering Thin Film Ultrasonic Coating Nozzles Nebulization Device
Description:
The typical application of scattering type ultrasonic nozzles is the photoresist coating on semiconductor chips, where the photoresist is sprayed onto the semiconductor chips. Due to the rotational scattering of mist emitted by the scattering type ultrasonic nozzle, a uniform photoresist film can be formed not only on the wafer plane, but also on the sidewalls and corners of the wafer microstructure. In addition, scattering ultrasonic nozzles can also be used for thin film solar cell coatings, calcium titanate solar cell coatings, AR transmission and reflection film coatings, insulation film coatings, superhydrophobic coating coatings, PCB flux coatings, and other applications.
Parameters:
| Model | FSW-4002-L |
| Name | 40Khz Scattering Ultrasonic Nozzle Atomization |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 40-80 |
| Spray flow(ml/min) | 0.5-20 |
| Spray height(mm) | 30-80 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <15 |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for Photoresist coatings on semiconductor chips |
Ultrasonic spraying is a spraying technology that uses ultrasonic vibration to produce spray. The working principle can be summarized as follows:
Ultrasonic vibration generation: The ultrasonic spraying machine contains an ultrasonic generator inside, which generates high-frequency electrical signals. These electrical signals are converted into mechanical vibrations through transducers (also known as vibrators or transducers).
Working principle of transducers: Transducers are usually made of piezoelectric ceramic materials, such as piezoelectric crystals. When an electrical signal is applied to a piezoelectric material, it causes the material to shrink and expand, resulting in mechanical vibration.
1. Liquid spray formation: the transducer is connected to the liquid spray system, usually a nozzle or liquid reservoir. When the transducer vibrates, it transfers vibration energy to the liquid in the spraying system. This mechanical vibration acts on the liquid, generating intense liquid motion and shear forces.
2. Liquid shear and atomization: The violent movement and shear force of the liquid cause the formation of small droplets. These droplets are atomized in the spraying system and form spray.
3. Spraying process: the generated spray can be directionally sprayed onto the target surface through appropriate nozzles and spraying parameters. The size and distribution of spray particles can be controlled by adjusting the frequency, amplitude of ultrasonic vibration and spraying parameters.
In general, ultrasonic spraying uses ultrasonic vibration to generate a strong liquid shear force, which converts the liquid into tiny spray particles to achieve a fine and uniform spraying effect. This spraying technology has a wide range of applications in many fields, such as coatings, coatings, inkjet printing, and so on.
40Khz Ultrasonic Wide Scattering Thin Film Ultrasonic Coating Nozzles Nebulization Device
