| Production Name: | Ultrasonic Dispersion Manual Liquid Supply Pump | Applicable Syringe Types: | 0.5μm-150ml (ultrasonic Dispersion Of 25, 50, 100ml) |
|---|---|---|---|
| Syringe Selection: | Built In Syringe Model And Custom Syringe Inner Diameter | Linear Speed Range: | 1μm/min-132mm/min |
| Linear Thrust Range: | 8-20 Kgf, Adjustable Online | Travel Resolution: | 0.078μm/μstep |
| Travel Control Accuracy: | Error ≤ ± 0.3% | Display Method: | 4.3 Inch Industrial Grade - LCD Screen |
| Highlight: | Ultrasonic Dispersion Manual Liquid Supply Pump,Intelligent Ultrasound Spraying System Pump,40Khz Ultrasonic Dispersion Pump |
||

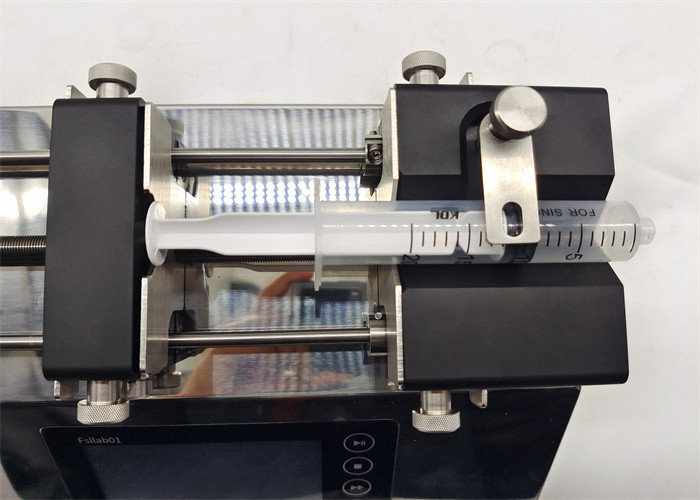

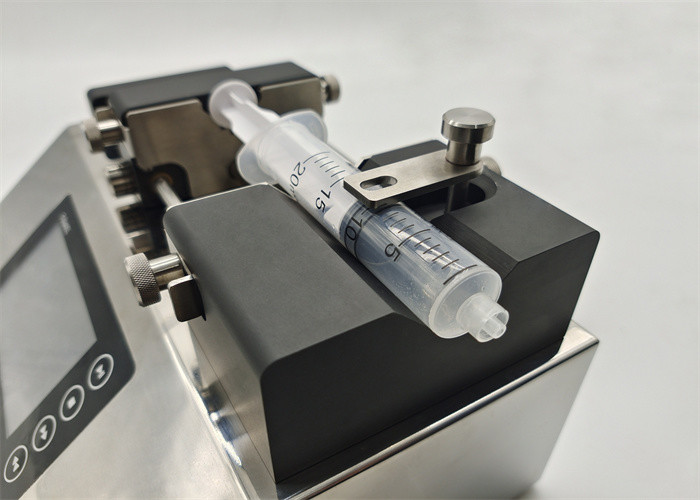

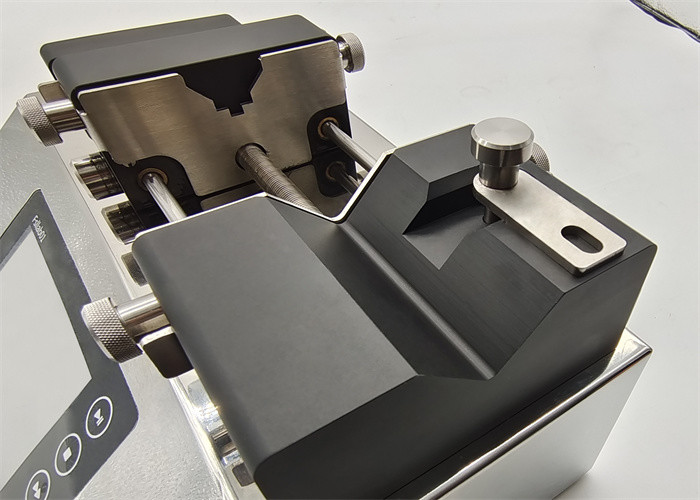

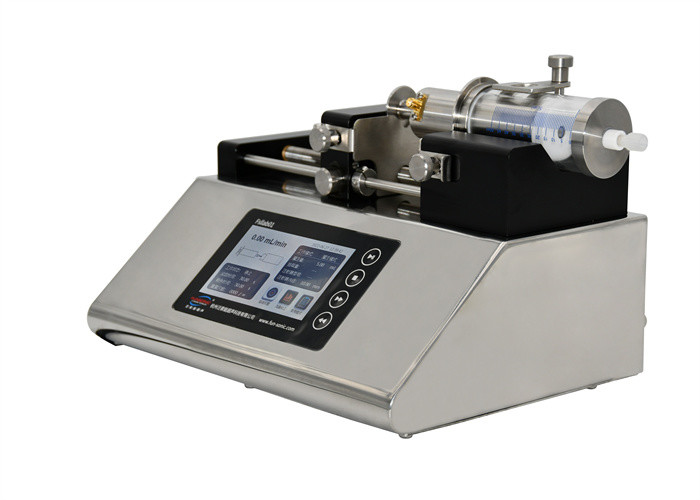

Intelligent Ultrasonic Dispersion Manual Liquid Supply Pump 40Khz for Ultrasound Spraying System
Description:
Ultrasonic dispersion is achieved by embedding high-frequency ultrasonic transducers into micro containers (such as sample injectors/syringes), which can effectively disperse and transport various nano suspensions, thereby uniformly dispersing nanoscale and submicron particles and transporting liquids. Sedimentation and clumping can be avoided during the transportation and spraying of suspensions. Nanoparticle dispersion systems can be installed in various injection pumps and are often used as auxiliary accessories in precision spraying systems. High performance non-contact acoustic cavitation treatment can be achieved, and samples such as blood, saliva, and suspended particles can be effectively mixed, dispersed, and crushed through an ultrasonic dispersion system.
Parameters:
| Item No | Ultrasonic Dispersion Manual Liquid Supply Pump |
| Working mode | Perfusion, extraction, infusion followed by extraction, extraction followed by infusion, continuous mode |
| Number of channels | Optional |
| Applicable syringe types | 0.5μm-150ml (ultrasonic dispersion of 25, 50, 100ml) |
| Syringe selection | Built in syringe model and custom syringe inner diameter |
| Linear speed range | 1μm/min-132mm/min |
| Linear speed adjustment resolution | 1μm/min |
| Linear thrust range | 8-20 kgf, adjustable online |
| Maximum stroke | 140mm |
| Travel resolution | 0.078μm/μstep |
| Travel control accuracy | Error ≤ ± 0.3% |
| Fallback distance | 0.01-10mm |
| Common modes | Can save 60 sets of common modes |
| Display method | 4.3 inch industrial grade - LCD screen |
| Operation method | Touch screen+buttons |
| State output | OC gate signal output, used to indicate operating status and direction |
| communication interface | RS232/RS485 (Modbus protocol, RTU mode) |
| Universal power supply | AC100-240V/65W |
| Protection level | IP31 |
| Product size (mm) | 280*210*140 |
| Product weight (kg) | 5.3 |
Advantages:
1. Compared to some traditional dispersion methods, ultrasonic dispersion is an effective dispersion method that is less costly and easy to operate and maintain.
2. Ultrasonic dispersion syringe, which enables the solution to be ultrasonically dispersed before atomized spraying, avoids the precipitation of solids during the spraying process.
Ultrasonic dispersion systems transform liquids into a dispersion state, i.e. fine or ultra-fine ultrasonic grinding of solids or fluids due to the ultrasonic vibration effect. Grinding solid particles suspended in liquids or simply destroying solid and viscous substances of the metal or stone type immersed in liquids requires a modality, since the destruction of strong substances requires shock waves due to the rupture of cavitation bubbles. And due to the specificity of the ultrasonic field generated in liquid media, ultrasonic dispersion provides highly dispersed, homogeneous, chemically pure suspensions (particle size less than 1 μm).
