Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS2000 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 110khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.5-12ml/min |
| Effective Spraying Width: | 50-100mm | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | 110Khz Ultrasonic Precision Coating,Perovskite Batteries Ultrasonic Precision Coating,Conemist Spraying Ultrasonic Precision Coating |
||
110Khz Special Ultrasonic Precision Coating for Perovskite Batteries with Conemist Spraying
Description:

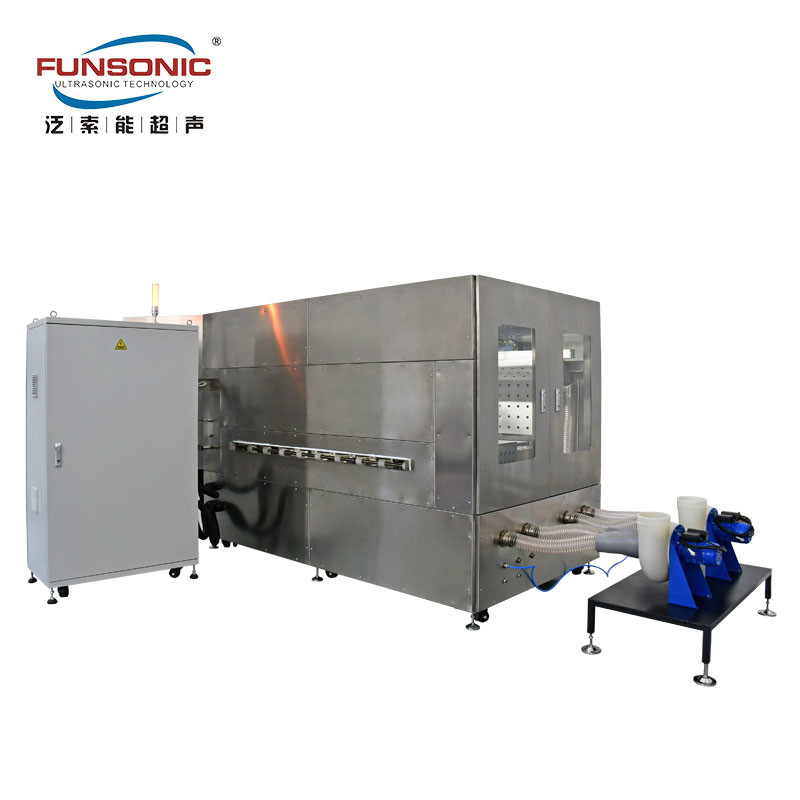

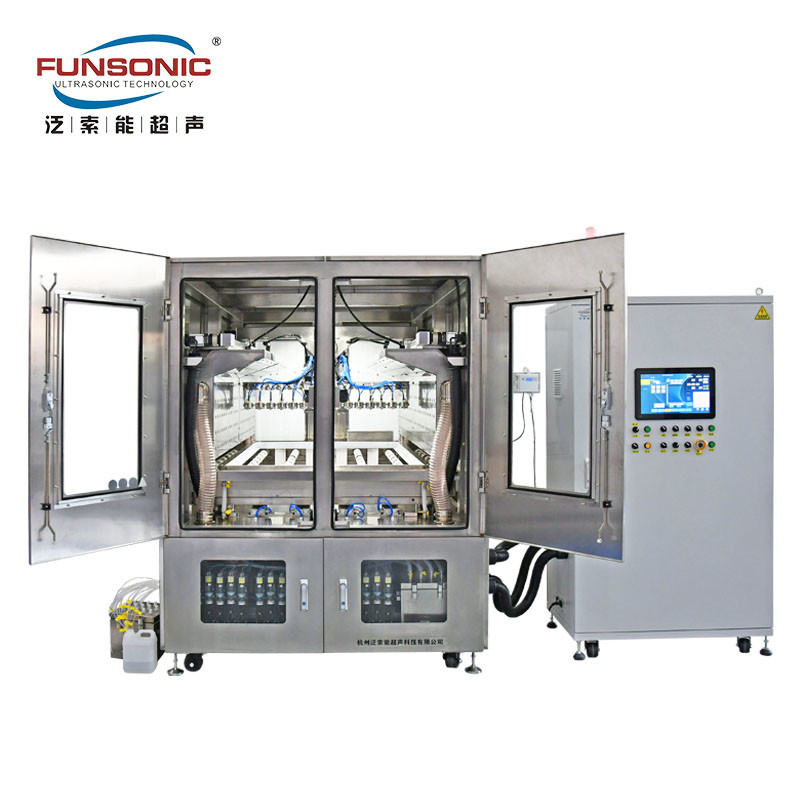

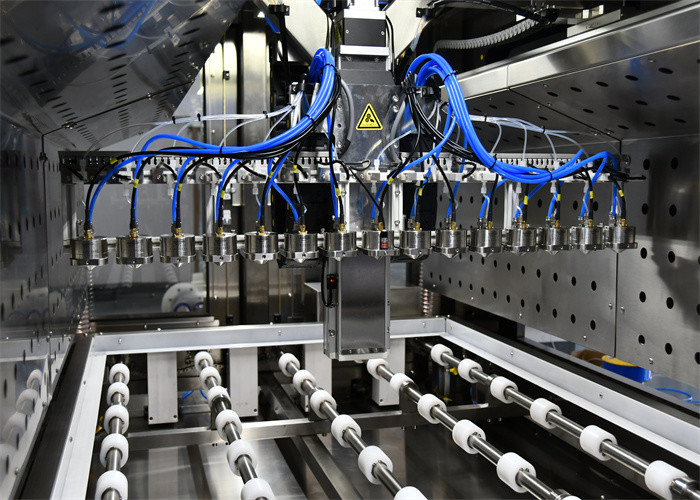

The vertical ultrasonic precision spraying machine FS2000 includes XYZ three-axis servo motion system, R-axis nozzle rotation mechanism and 360℃ rotating base support, equipped with Funsonic ultrasonic atomization nozzle (can be equipped with single or multiple nozzle linkage work according to demand), ultrasonic generator, precision type constant flow syringe pump, ultrasonic dispersion feeder (optional), vacuum adsorption heating platform (optional), carrier gas system to achieve all-round product spraying.
It can be used for nano-film coating, solar cell coating, fuel cell coating, glass coating, AR transmission and reflection film coating, hydrophilic coating , hydrophobic coating, heat insulation film coating, proton exchange film coating, fuel cell membrane electrode coating, transparent conductive film coating, biosensor coating, photoresist coating, circuit board flux coating, transparent conductive film coating, superhydrophobic coating, antimicrobial coating , et
Parameters:
| Product Type |
Perovskite Batteries Ultrasonic Spray Coating FS2000 |
| Spray Nozzle Operating Frequency | 110KHz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | Determine based on the type and quantity of nozzles configured |
| Effective Spraying Width | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Solution Viscosity | ≤130cps |
| Temperature Range | -10-60℃ |
| Diversion Pressure Max | ≤0.15MPA |
| Material of the contact solution part | SUS304, Titanium, PTFE |
| Exercise Mode | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Bottom glass conveyor belt |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision self pumping and constant flow injection pump |
Application of ultrasonic spraying technology in the preparation of perovskite batteries:

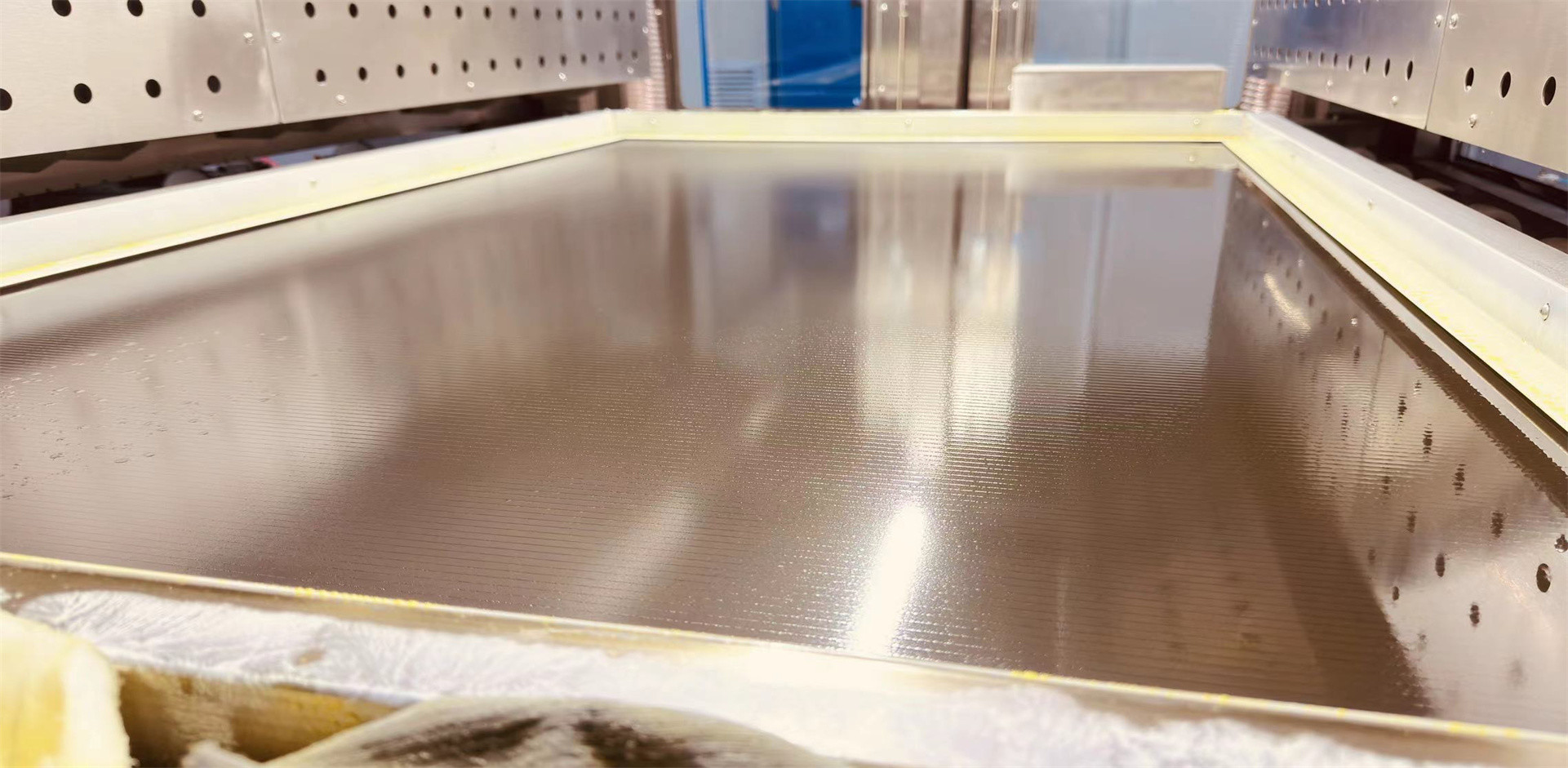

1. Active layer spraying: Ultrasonic spraying can be used to spray perovskite materials, related electron and hole transport materials onto the battery substrate, forming an active layer for photoelectric conversion. Ultrasonic spraying technology can achieve high-quality spraying at lower temperatures, which helps to improve the performance of perovskite solar cells.
2. Interface modification: Ultrasonic spraying can also be used to form an interface modification layer between perovskite materials and battery substrates. These modification layers can improve the interface contact and charge transfer efficiency between materials, thereby enhancing the efficiency and stability of perovskite solar cells.
3. Sealing layer spraying: Ultrasonic spraying technology can also be used to spray protective sealing layers on perovskite solar cells. These sealing layers can prevent damage to perovskite materials from moisture, oxygen, and other external environmental factors, improving the long-term stability and durability of batteries.
The application of ultrasonic spraying technology in the preparation of perovskite solar cells can improve the efficiency and controllability of the preparation process, as well as improve the performance and stability of the cells.
