Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS800 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.5-10ml/min |
| Effective Spraying Width: | 1-m | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤15cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Penetrator Nozzles Ultrasonic Spray Coating Machine,60Khz Ultrasonic Spray Coating Machine,Ultrasonic Spray Coating Machine 60Khz |
||

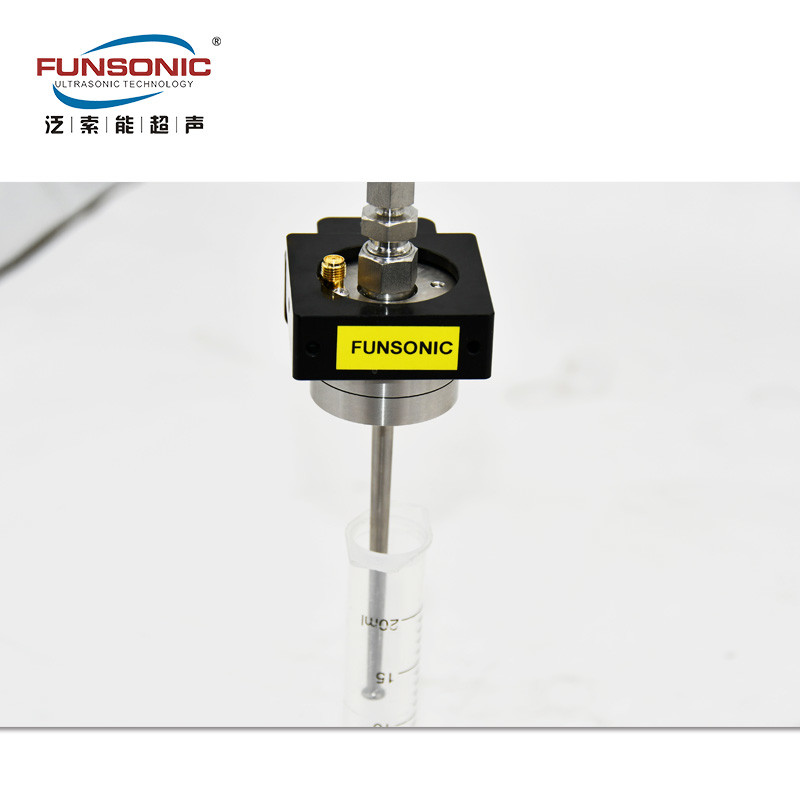

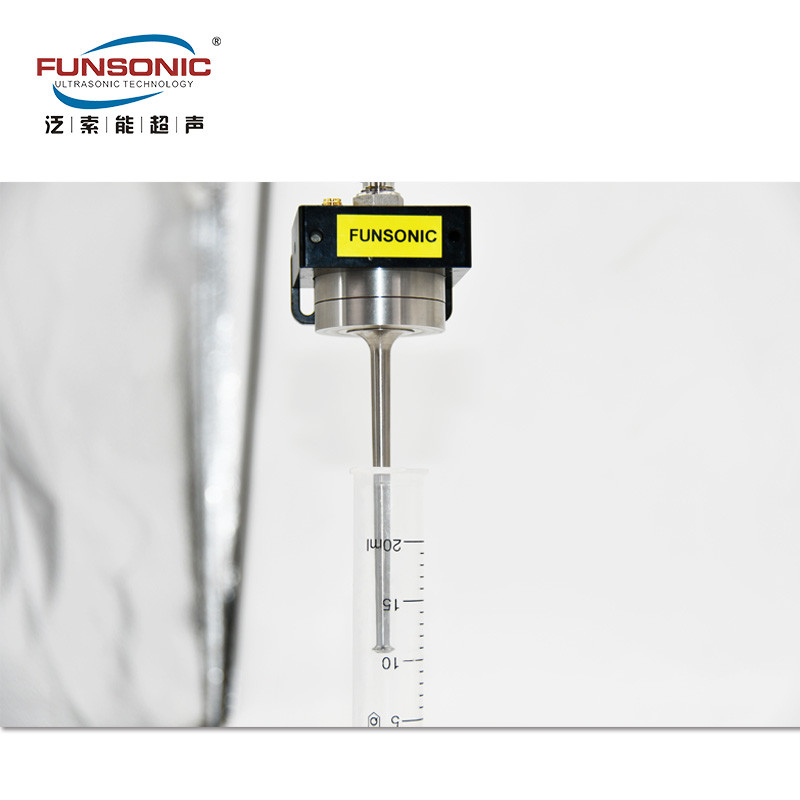

Blood Collection Vessel Ultrasonic Spray Coating Machine 60Khz Penetrator Nozzles
Description:

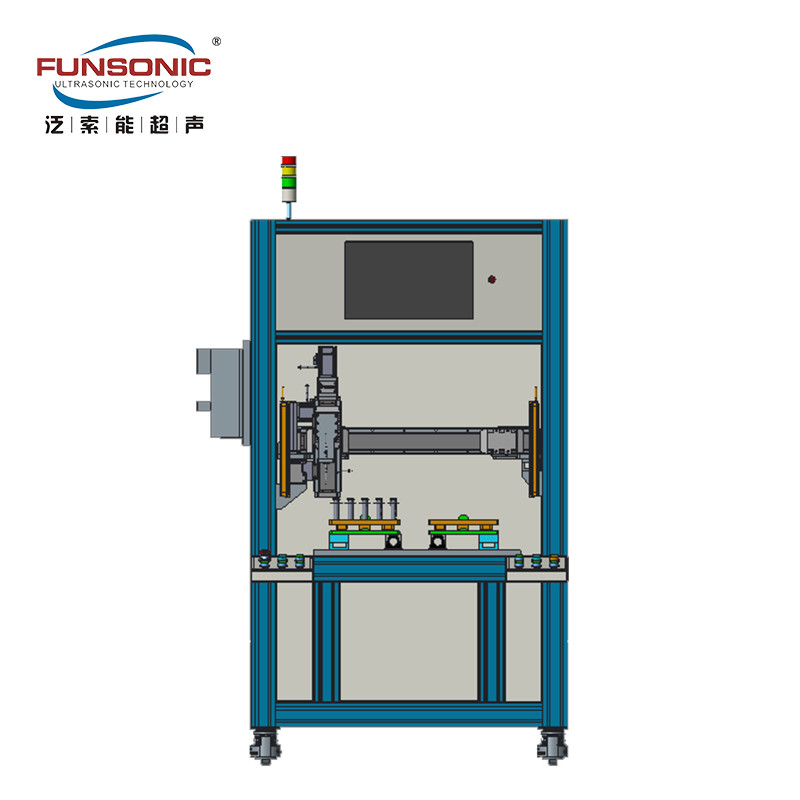

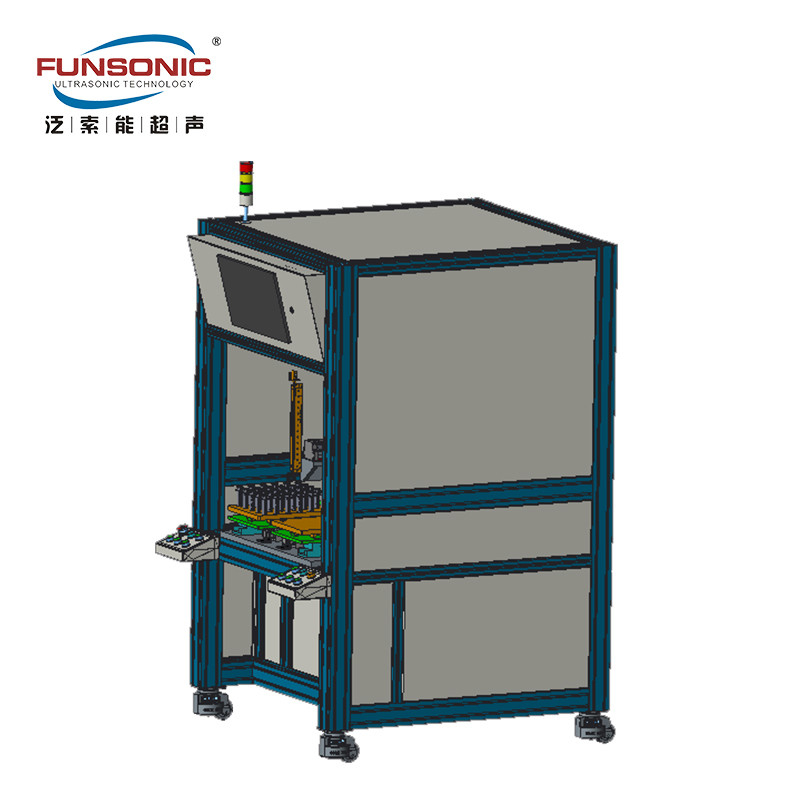

Ultrasonic syringe barrels and blood collection spray machines are mainly developed by enterprises, universities, and research institutes that are in contact with ultrasonic spray equipment for the first time. The entire equipment has a simple and elegant structure, with complete functions, mainly including XY dual axis precision motion module, combined with a comprehensive trajectory editing system, to achieve the spraying function of any two-dimensional plane graphics, such as rectangles, circles, triangles, or curves. It can be equipped with any ultrasonic nozzle from FUNSONIC, as well as a precision constant flow injection pump, digital carrier gas system, and optional functions such as ultrasonic dispersion liquid supply system and vacuum adsorption heating substrate. The entire equipment can also be placed in a fume hood for use.
Parameters:
| Product Type | Syringe Tube Ultrasonic Spray Coating FS800 |
| Spray Nozzle Operating Frequency | 60KHz (Optional 40Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-m |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Solution Viscosity | ≤15cps |
| Temperature Range | -10-60℃ |
| Diversion Pressure Max | ≤0.01MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | XYZ adopts imported servo motors for all three axes |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
Advantages:
1. High frequency ultrasonic atomization technology ensures uniform atomization of liquid particles
2. Ultrasonic high-frequency vibration uniformly disperses solid particles in suspension
3. Highly uniform inner wall coating
4. Equipped with ultrasonic cleaning nozzles, greatly reducing maintenance costs
5. Selective position and area of the inner wall of the spray pipe
Blood Collection Vessel Ultrasonic Spray Coating Machine 60Khz Penetrator Nozzles
