| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS650Y |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Ultrasonic Precision Spray Coating Device,Automatic Flipping Ultrasonic Spray Coating Device,40Khz Ultrasonic Spray Coating Device |
||

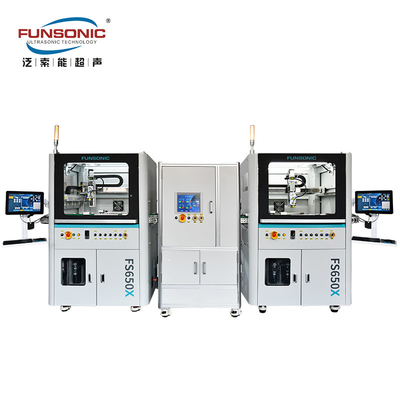

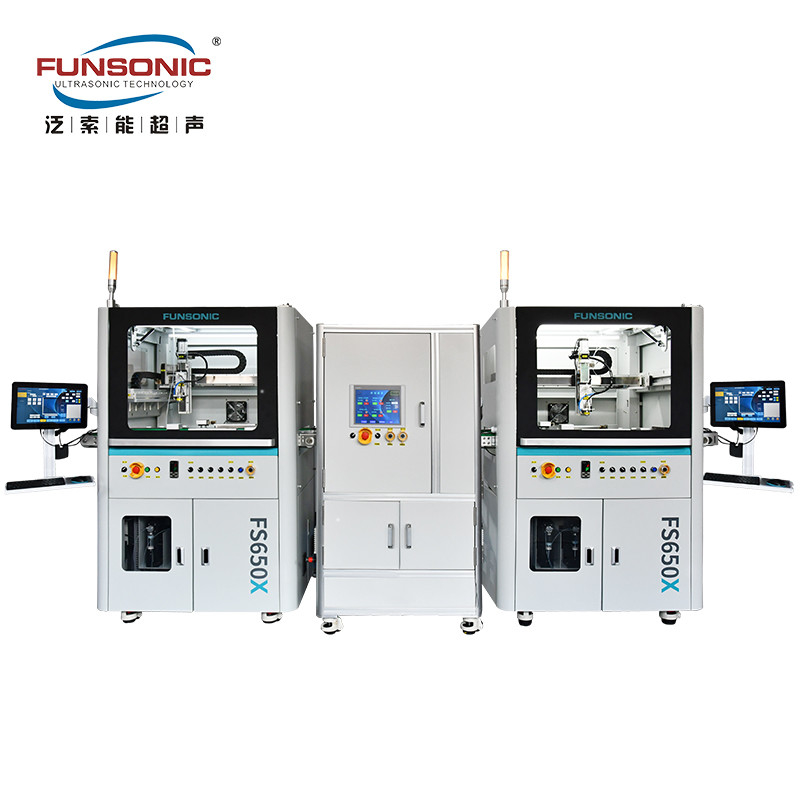

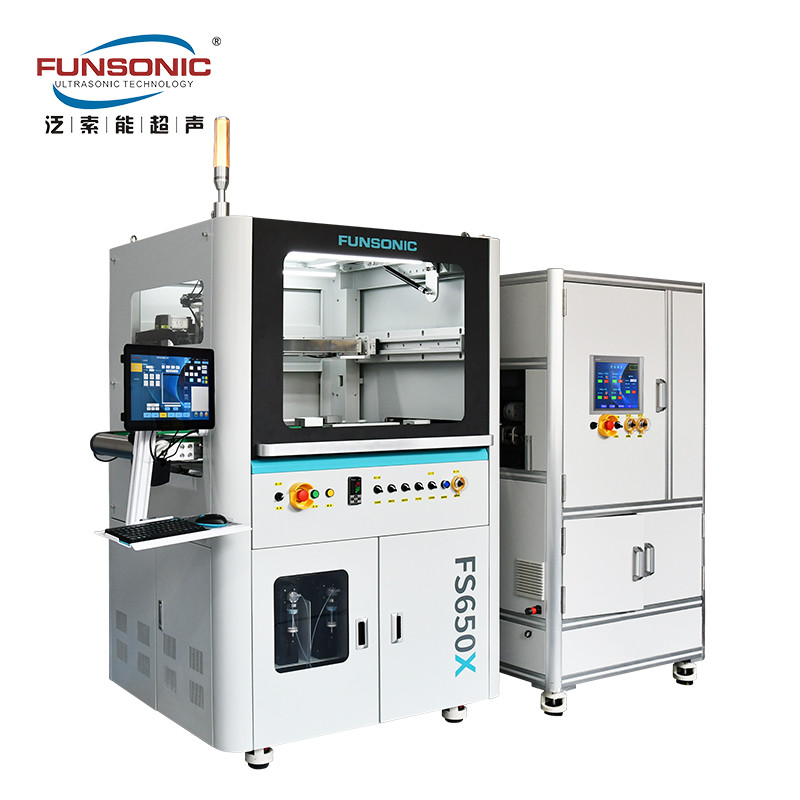

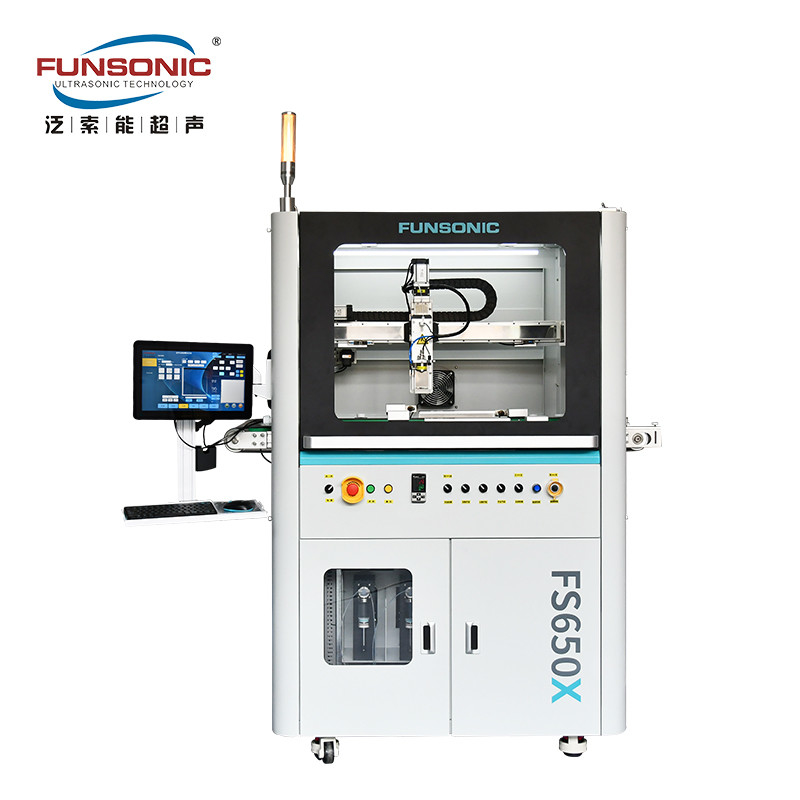

Automatic Flipping Ultrasonic Precision Spray Coating Device with 40Khz Ultrasonic Dispersition System
Description:
The fully automatic flipping ultrasonic spraying machine FS650Y is a device that uses ultrasonic technology for spraying and has an automatic flipping function.
This device typically consists of the following components:

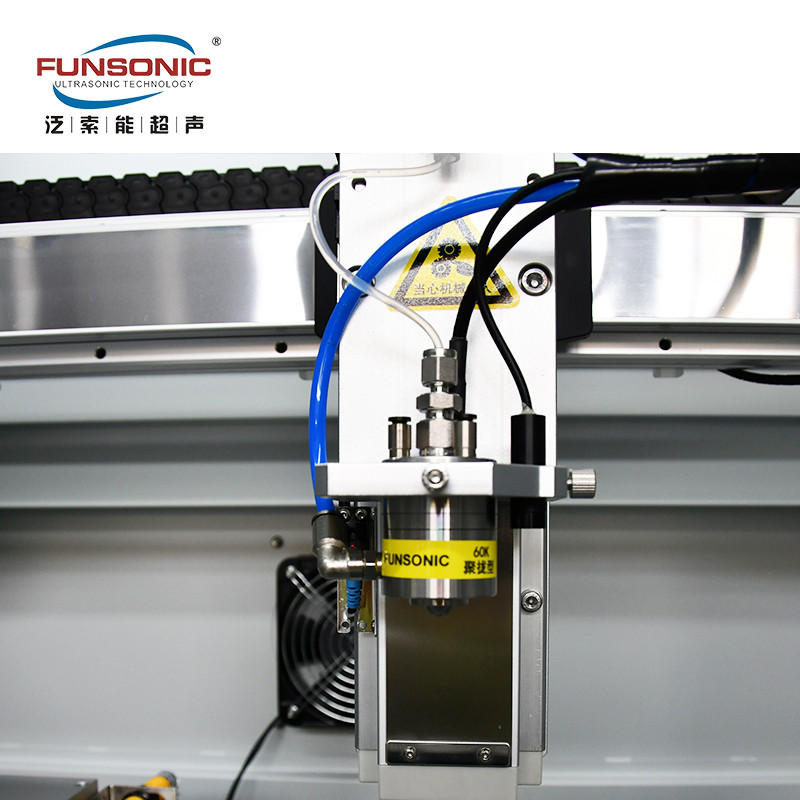

1. Spray system: including ultrasonic nozzle, spray agent supply system, and paint transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles and spray them onto the target surface through airflow.
2. Flipping system: used to automatically flip the object to be sprayed. The flipping system usually consists of an electric motor, a transmission device, and a control system, which can flip objects from one surface to another for comprehensive spraying.
3. Control system: used to control the operation of the entire equipment. The control system usually includes a touch screen interface or a computer interface, which is used to set spraying parameters, monitor equipment status, and adjust operating modes.
The fully automatic flipping ultrasonic spraying machine can achieve efficient and accurate spraying operations. Through the automatic flipping function, different surfaces of objects can be continuously sprayed during the spraying process, improving spraying efficiency and uniformity. This equipment is widely used in fields such as automotive manufacturing, furniture manufacturing, and metal processing, and can meet the requirements of mass production and high-quality spraying.
Parameters:
| Product Type |
Automatic Flipping Ultrasonic Spray Coating Machine FS650Y |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Material of the contact solution part | SUS304, Titanium, PTFE |
| Exercise Mode | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Horizontal automatic conveying mechanism+Automatic flipping machine |
| Control Mode | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Conveying Speed | 1-100mm/s |
Ultrasonic spraying machine is suitable for various coating formulations, including but not limited to the following:
1. Waterborne coatings: Waterborne coatings are environmentally friendly coatings that use water as the main solvent. Ultrasonic spraying machine can effectively disperse water-based coatings into small particles and spray them onto the target surface.
2. Solvent based coatings: Solvent based coatings use organic solvents as the main solvent. Ultrasonic spraying machine can disperse solvent based coatings into small particles and spray them onto the target surface through airflow.
3. UV cured coating: UV cured coating is a special type of coating that requires rapid curing through UV irradiation. Ultrasonic spraying machine can evenly spray UV cured coating onto the target surface for UV curing.
4. Powder coating: Powder coating is a solid granular coating that typically requires electrostatic adsorption or electrostatic spraying. However, ultrasonic spraying machines can also be used to disperse powder coatings into small particles and spray them onto the target surface through airflow.
It should be noted that different paint formulations have different physical and chemical properties and particle size requirements. When using ultrasonic spraying machines, adjustments and optimizations should be made according to the specific requirements of the coating formula to ensure the expected spraying effect and coating quality.
