| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS310 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 100Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-20μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Qualitative Experiments |
| Highlight: | High Frequency Ultrasonic Coating Device,100khz Ultrasonic Coating Device,Oxide Fuel Cell Ultrasonic Coating Device |
||

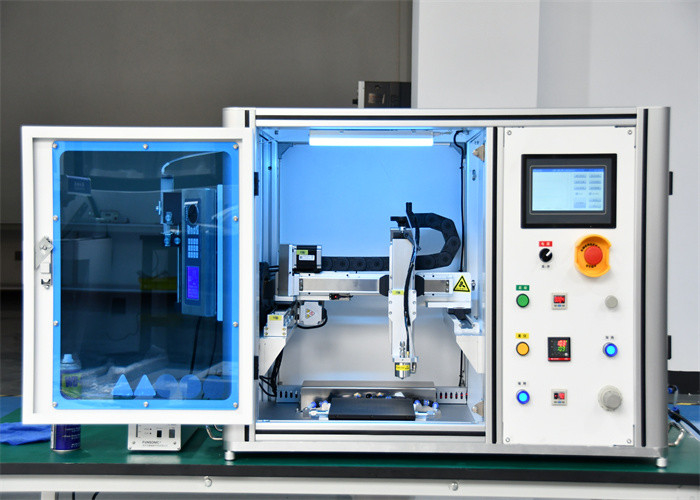

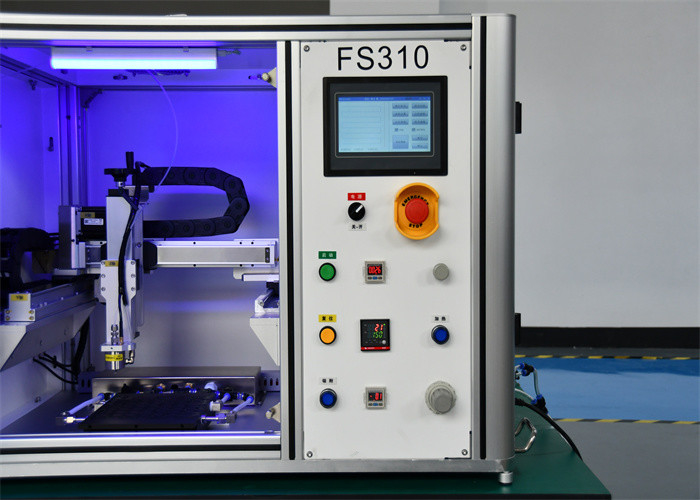

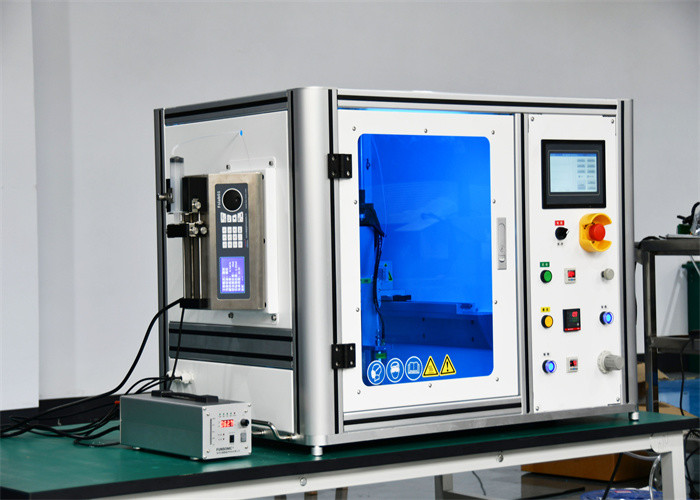

High Frequency 100khz Ultrasonic Coating Device for Solid Oxide Fuel Cell Coated
Description:
FS310 Ultrasonic spray coating equipment is mainly used in industries such as fuel cells, thin-film photovoltaic cells, thin-film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coatings, and electronic circuits. The nozzle can be used for various solutions, and can even atomize sewage, chemical liquids, and oil viscous liquids.
Ultrasonic spray coating technology is to combine the ultrasonic atomizing nozzle with low-pressure air (gas) to produce soft, highly focused small spray droplets. Guided air (gas) is usually introduced into the diffusion chamber of the air cover surrounding the nozzle below 0.10Mpa, and a uniformly distributed air and gas flow is generated around the nozzle rod. The spray generated by the ultrasonic wave at the tip of the atomizing head is immediately entrained in the low-pressure airflow.
The adjustable focusing mechanism on the air hood allows full control of the spray width. The envelope of spray is very narrow, in the shape of an hourglass. The width of the shape is controlled by adjusting the distance between the nozzle and the bottom plate.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
| Spray Nozzle Operating Frequency | 20-200KHz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment |
| Control Mode | Micro computer card, 7-inch touch screen+buttons |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 200W,10A |
Advantage:
1. The spray pattern is easy to shape and suitable for precise coating applications
2. It can spray any shape of object with a uniform micrometer thick coating
3. Ultrasonic atomization spraying can reduce downtime in critical production processes
4. Ultrasonic atomization spraying with ultra-low flow rate, capable of intermittent or continuous operation
5. Highly controllable spray volume, more reliable spray quality
6. Low energy consumption, high atomization efficiency, and relatively small restrictions on atomized liquids
7. It can reduce waste and air pollution caused by reverse spraying, and save costs
8. No pressure, no noise, no wear or blockage of moving parts
9. The atomizing nozzle is made of titanium alloy material, which has strong height and strong corrosion resistance
High Frequency 100khz Ultrasonic Coating Device for Solid Oxide Fuel Cell Coated
