| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS650X |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Production Ultrasonic Spraying System | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 50w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Conveyor Ultrasonic Spray Coating,ultrasonic spray coating machine With Conveyor,Thin Film ultrasonic spray coating machine |
||

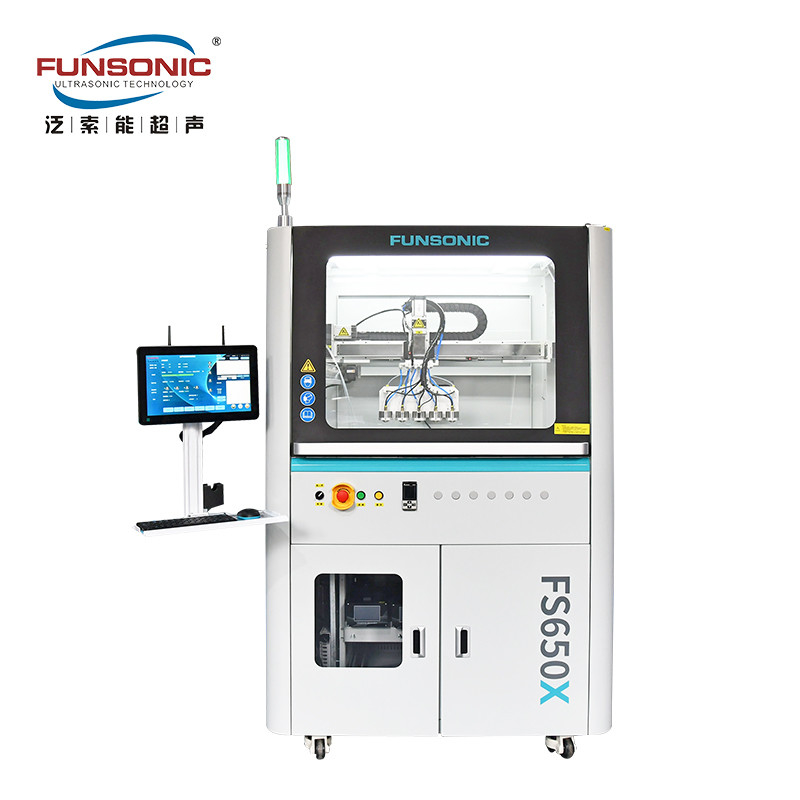

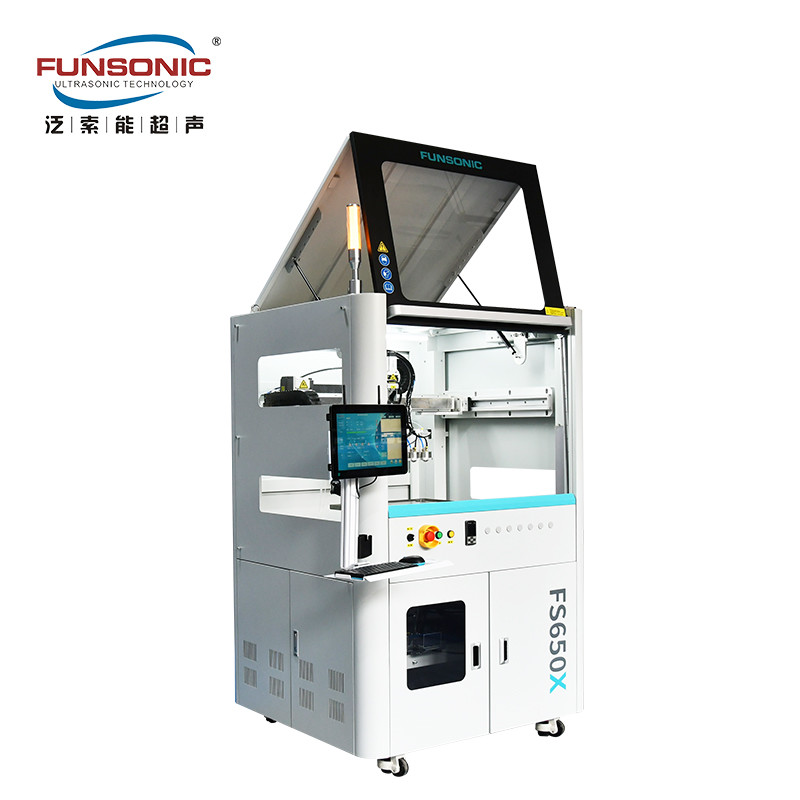

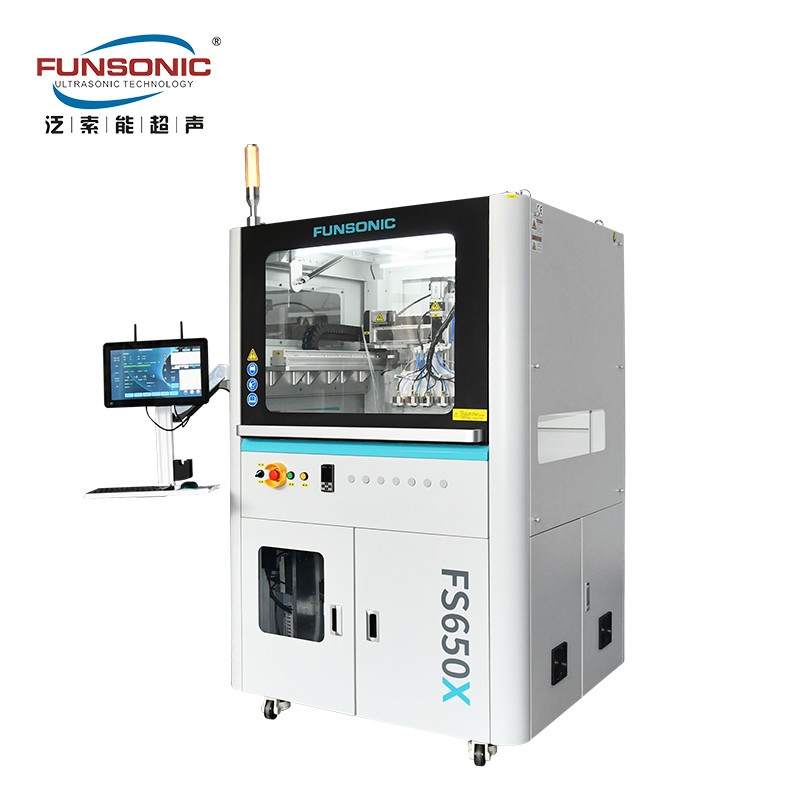

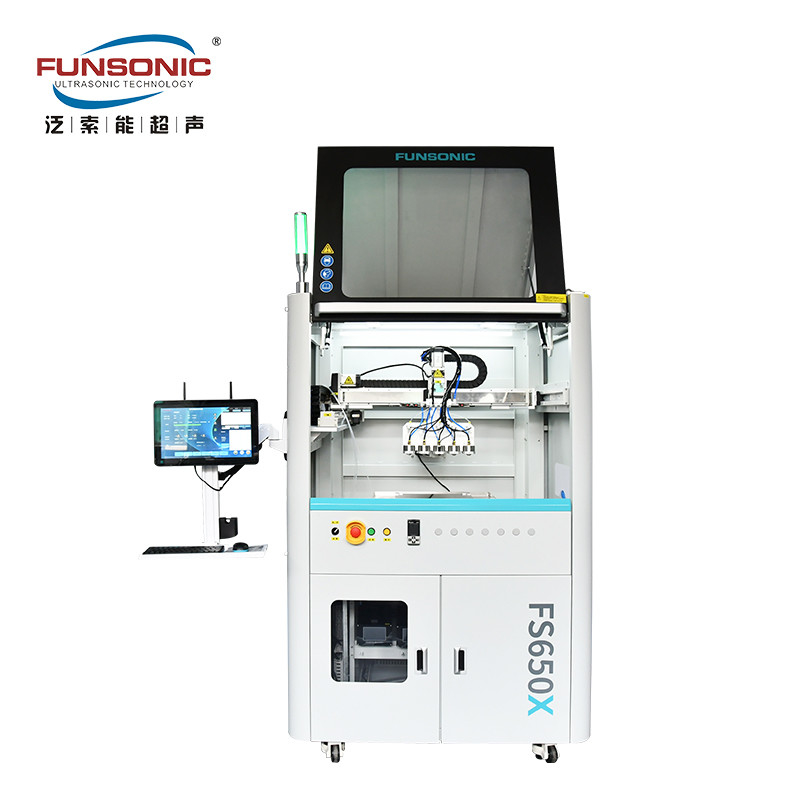

Ultrasonic Spray Coating with Conveyor for Thin Film Photovoltaic Cells Solution Coated
Description:
Ultrasonic precision spraying machine conveyor belt type is a device that uses ultrasonic technology to achieve precision spraying, in which a conveyor belt is used to transport the object to be sprayed.
Ultrasonic precision spraying machine is a high-precision spraying equipment that uses ultrasonic vibration to atomize liquid spraying agent into small particles, and then evenly sprays them onto the target surface through air flow. This spraying method has the advantages of high precision, high efficiency, and saving spray agents, and is widely used in various spraying processes.
The conveyor belt is a component of the ultrasonic precision spraying machine, used to transport objects to be sprayed. The conveyor belt is usually a strip structure made of wear-resistant materials, which can transport objects from the starting point to the endpoint during the spraying process. By controlling the speed and movement trajectory of the conveyor belt, precise positioning and spraying of objects can be achieved.
The use of conveyor belt ultrasonic precision spraying machine can carry out spraying operations on continuous production lines, improving work efficiency and production quality. In an automated production environment, the conveyor belt ultrasonic precision spraying machine can cooperate with other equipment to achieve automated production processes, reduce manual operations, and improve production efficiency.
In summary, the ultrasonic precision spraying machine conveyor belt type is a device that uses ultrasonic technology for precision spraying. Through the conveyor belt, the object to be sprayed is transported from the starting point to the endpoint, achieving efficient and high-precision spraying operations.
Parameters:
| Product Type |
Benchtop Ultrasonic Spray Coating Machine with Conveyor FS650X |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Material of the contact solution part | SUS304, Titanium, PTFE |
| Exercise Mode | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Horizontal automatic conveying mechanism |
| Control Mode | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
General configuration:
1. Viscosity and solid content: Typically, viscosity ≤ 30cps, and suspension requires a solid content not exceeding 20-30%
2. Liquid supply equipment: precision injection pump+biological grade sampler, with a liquid supply accuracy of 0.1uL/min
3. Dry film thickness: 20nm-100um (related to the substrate of the solution)
4. Input voltage: 220V ± 10%, 50-60Hz
5. Solution conversion rate: ≥ 95%, utilization rate several times that of traditional two fluid pneumatic nozzles
6. Atomized particle size: average 15-45 μ m. It mainly depends on the frequency of the nozzle, and the higher the frequency, the smaller the particle size
7. Spray nozzle frequency: can be equipped with various spray nozzle systems ranging from 30-200KHz
Optional configuration:
1. Ultrasonic dispersion liquid supply system: It can continuously disperse and stir nanoparticles during the spraying process, effectively reducing the precipitation phenomenon of the spraying liquid and greatly improving the uniformity of the film layer
2. Heating and drying platform: using aviation aluminum porous platform or precision micro porous ceramic platform, with precise temperature control of 200 ℃
3. Vacuum adsorption platform: equipped with a multi-channel vacuum generator that can be controlled by zones, accurately adsorbing the thin film substrate without deformation.
4. Spray nozzle alignment device: Laser alignment is used.
5. We can also customize other configurations that you need!
