Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS310 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-20μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Suitable For Qualitative Experiments |
| Highlight: | Atomization System Ultrasonic Spray Coating Machine,Precision Ultrasonic Spray Coating Machine,60Khz Ultrasonic Spray Coater |
||

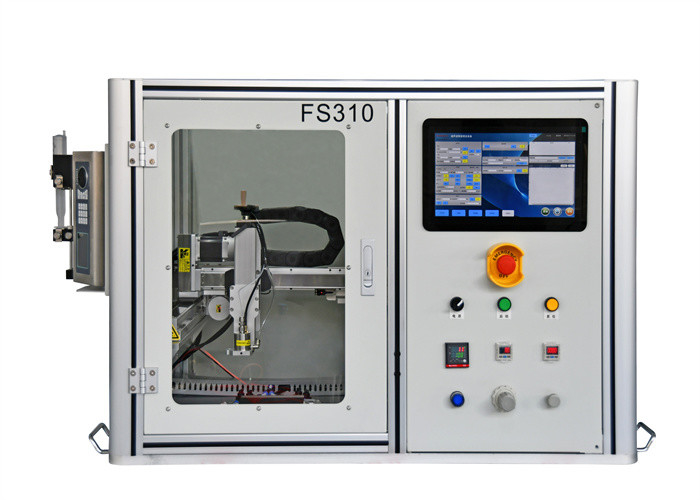

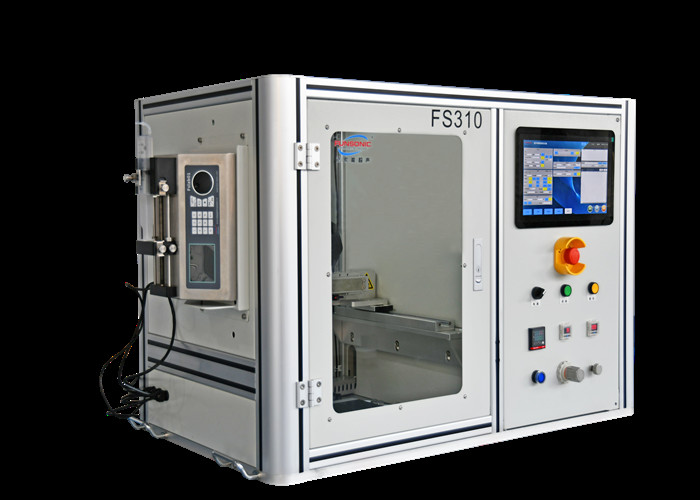

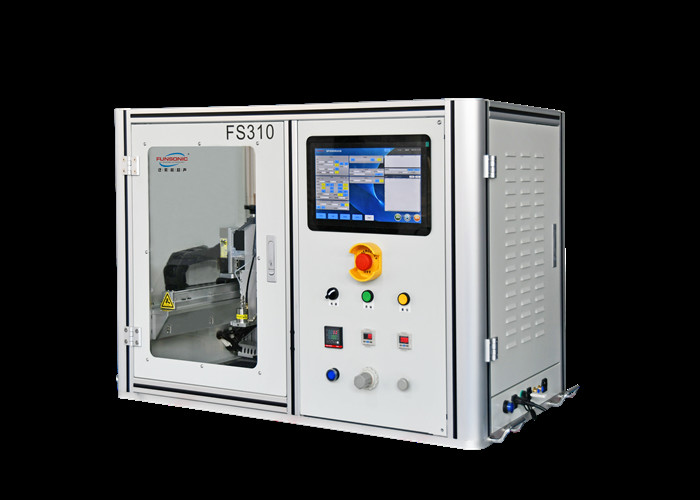

Standard Configuration of Ultrasonic Precision Spraying Machine with 60K Converging Ultrasonic Atomization System
Description:
The ultrasonic basic precision spraying machine is mainly developed by enterprises, universities, and research institutes that are in contact with ultrasonic spraying equipment for the first time. The entire equipment has a simple and elegant structure, with complete functions, mainly including XY dual axis precision motion module, combined with a comprehensive trajectory editing system, to achieve the spraying function of any two-dimensional plane graphics, such as rectangles, circles, triangles, or curves. It can be equipped with any ultrasonic nozzle from FUNSONIC, as well as a precision constant flow injection pump, digital carrier gas system, and optional functions such as ultrasonic dispersion liquid supply system and vacuum adsorption heating substrate. The entire equipment can also be placed in a fume hood for use.
Parameters:
| Model | FS310 |
| Name | 6oKhz Converging Ultrasonic Atomization System |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-20 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.1 |
| Application | Suitable for Qualitative Experiments, Small batch production and small area film production |
Advantage:
1. 4-fold advantage: Ultrasonic atomization spraying can achieve up to 4 times the utilization rate of traditional spraying, effectively reducing material costs
2. Nanoscale film thickness: The thinnest film thickness that can be prepared by ultrasonic atomization spraying can reach tens of nanometers, with highly consistent uniformity
3. No pressure atomization: atomization is generated through high-frequency ultrasonic vibration, without the involvement of air pressure, effectively avoiding the impact of high air pressure on the substrate

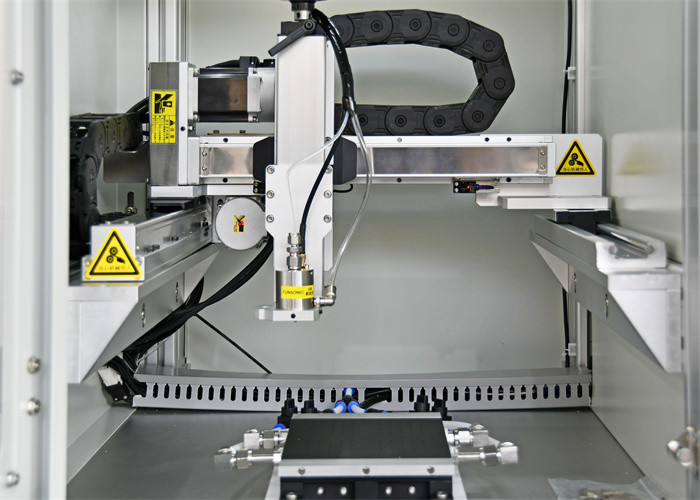

4. Precision motion module: The XYZ three-axis adopts imported servo motors, and the module adopts a fully enclosed linear screw module, significantly improving its service life. The repeated positioning accuracy can reach 0.01mm
5. Ultrasonic nozzle system: FUNSONIC has developed and produced dozens of ultrasonic nozzles, which can be suitable for various working conditions and film thickness requirements
Standard Configuration of Ultrasonic Precision Spraying Machine with 60K Converging Ultrasonic Atomization System
