Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W15 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Welding Parts | Frequency: | 15Khz |
|---|---|---|---|
| Power: | 2600W | Generator: | Digital Power Supply |
| Width Of Welding Wheel: | Customized According To Samples | Materials: | Special Steel |
| Generator Size: | 345*150*300mm | Application: | Mask Making Machine |
| Highlight: | 2600w Ultrasonic Welding System,15Khz Ultrasonic Welding System,Mask Bonding Ultrasonic Welding System |
||

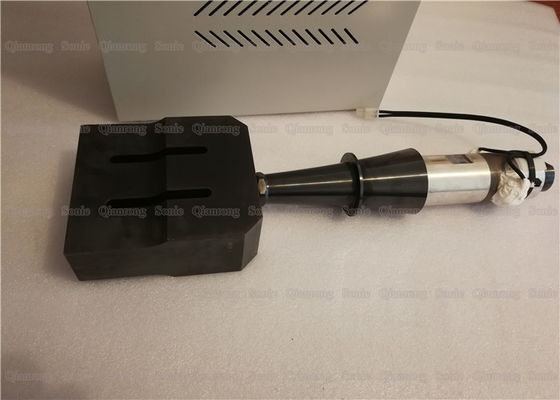

15Khz 2600w Ultrasonic Welding System for Surgical Mask Bonding with Special Steel Horn
Description:
15K ultrasonic welding kit produced by QRsonic company is mainly used for the production of full-automatic folding mask body. Using 15K ultrasonic welding technology, 3-5 layers of PP non-woven fabric, activated carbon and filter material are bonded and cut out. Folding mask body, can process 9001, 9002 mask body. Ultrasonic mask welding is to transmit high frequency vibration to the mask non-woven fabric to achieve the connection. When the mask non-woven fabric material passes between the ultrasonic welding heads, vibration will be generated on the non-woven fabric and heat will be quickly generated. This heat causes the synthetic fibers of the nonwoven fabric to melt and solidify, creating a seam that will not be worn or torn apart, completely replacing the traditional hand stitching.
Specifications:
| Classification | QR-15K | QR-20K |
| Frequency | 15Khz | 20Khz |
| Power | 2600w | 1500w |
| Voltage | 220V | 220V |
| Generator | Digital generator | Digital generator |
| Material of Horn | Steel | Steel |
| Dimension of horn | 120*25mm | 110*20mm |
| Net weight of horn | 11kgs | 5.5kgs |
| Dimension of generator | 250*150*300mm | 250*150*300mm |
| Net weight of generator | 6kgs | 6kgs |
| Package | Wooden case | Wooden case |
| Application | Non woven mask welding | Non woven mask welding |
Features:
1. High product flexibility and long life
2. Its power and frequency are in the form of analog pulse high-frequency oscillation, which can observe the changes of power and frequency at any time, providing an accurate basis for controlling and detecting ultrasonic waves.
3. Wide frequency tracking technology: When the output frequency of the ultrasonic generator does not match the frequency of the transducer, it will not only affect the experimental results, but even damage the equipment when the deviation is large. Therefore, we use frequency tracking technology to make the output frequency of the ultrasonic generator consistent with the frequency of the transducer, thereby ensuring the quality of the suture, and greatly extending the life of the ultrasonic generator and the transducer device.
4. Is an efficient suture device. It is mainly used for sewing, edging, fusing, embossing, etc. of synthetic fiber fabrics. The processed products have good water tightness, high production efficiency, no needle and thread accessories, smooth and no burrs on the fusing surface, and good feel.
15Khz 2600w Ultrasonic Welding System for Surgical Mask Bonding with Special Steel Horn
