Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-60S/Q |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 2500W | Generator: | Analog Generator |
| Welding Speed: | 0-20m/min | Roller Size: | 0-60mm |
| Dimension: | 1200*600*1200mm | Application: | Fabric Materials |
| Highlight: | 2500W Ultrasonic Lace Sewing Machine,Needleless Ultrasonic Sewing Machine,Ultrasonic Sewing Machine 20Khz |
||

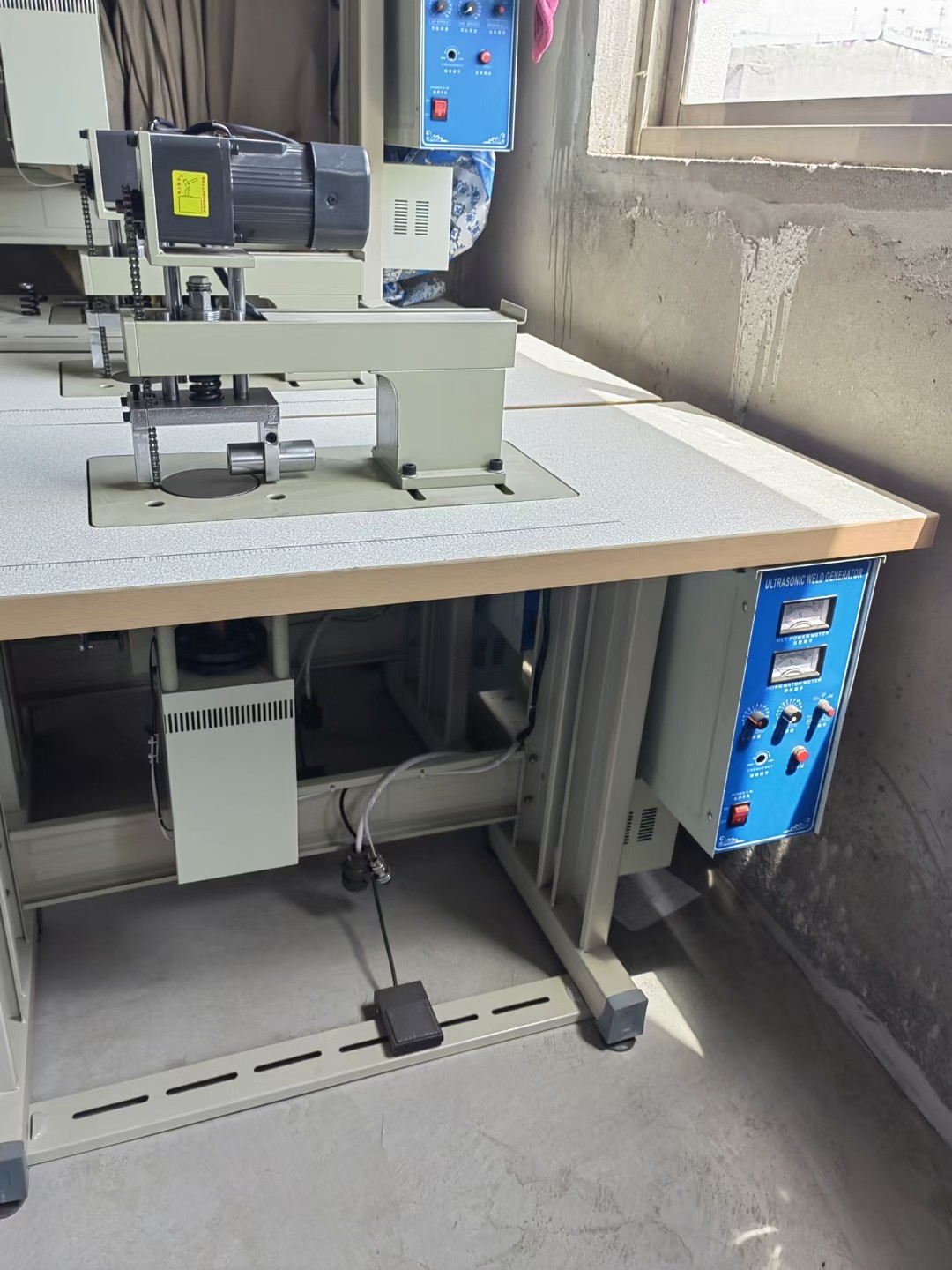

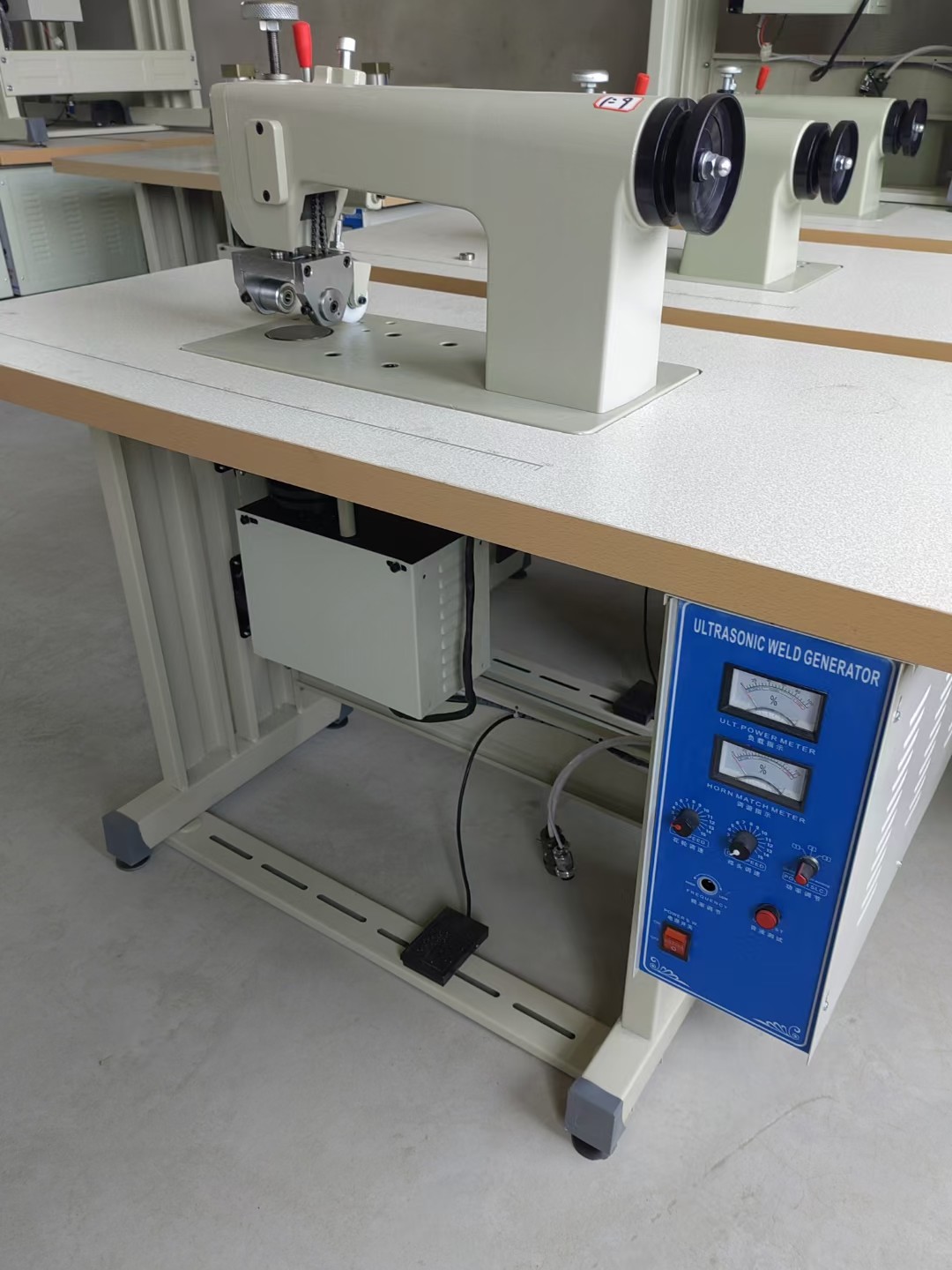

Various Clothes Bedding Curtains Fabrics Lace 20Khz Ultrasonic Needleless Welding
Description:

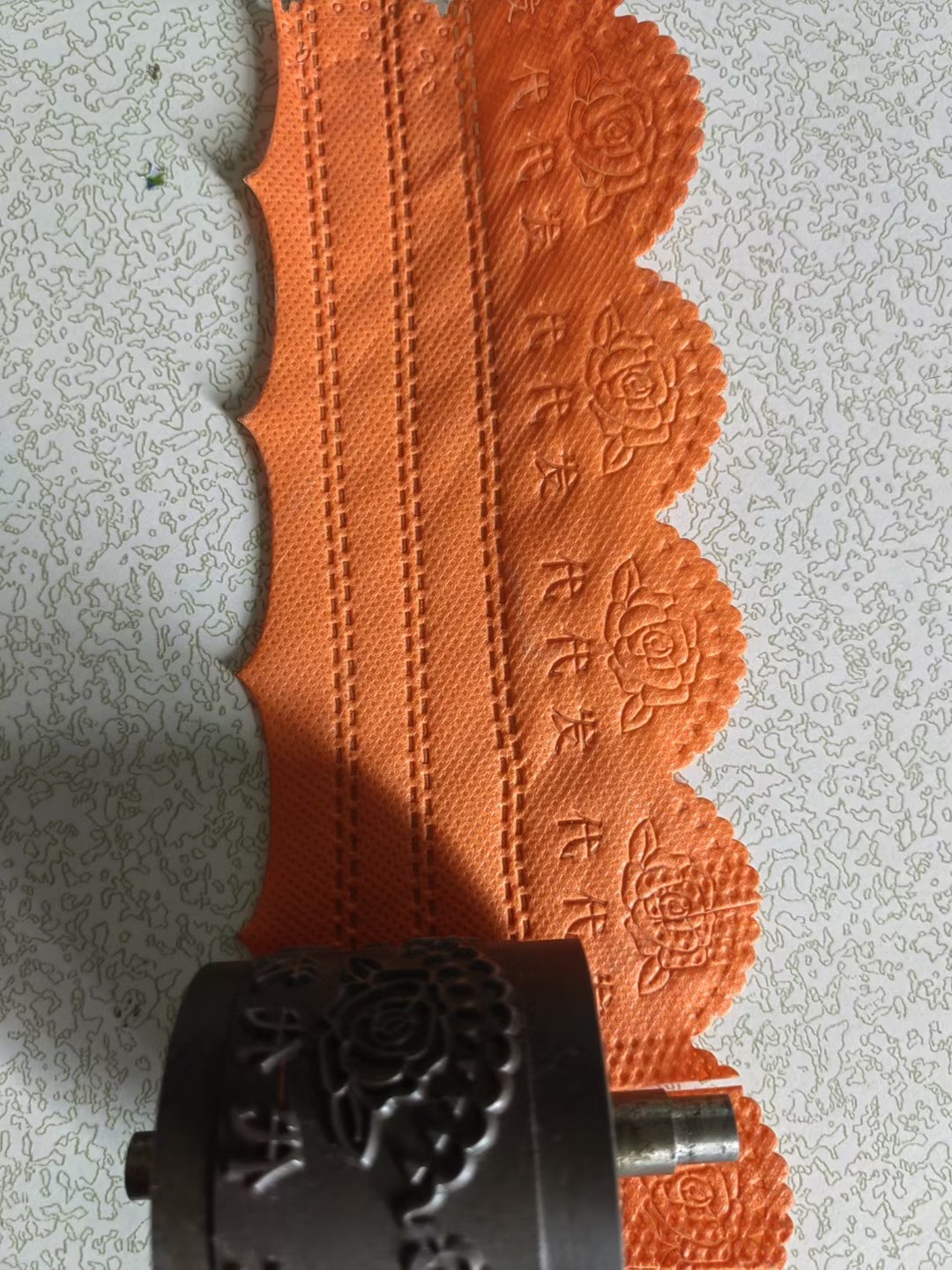

Ultrasonic lace machine is a device used for making lace, which uses ultrasonic technology to weld fabrics or other materials without needle or thread. It usually consists of an ultrasonic generator and a pressure roller.

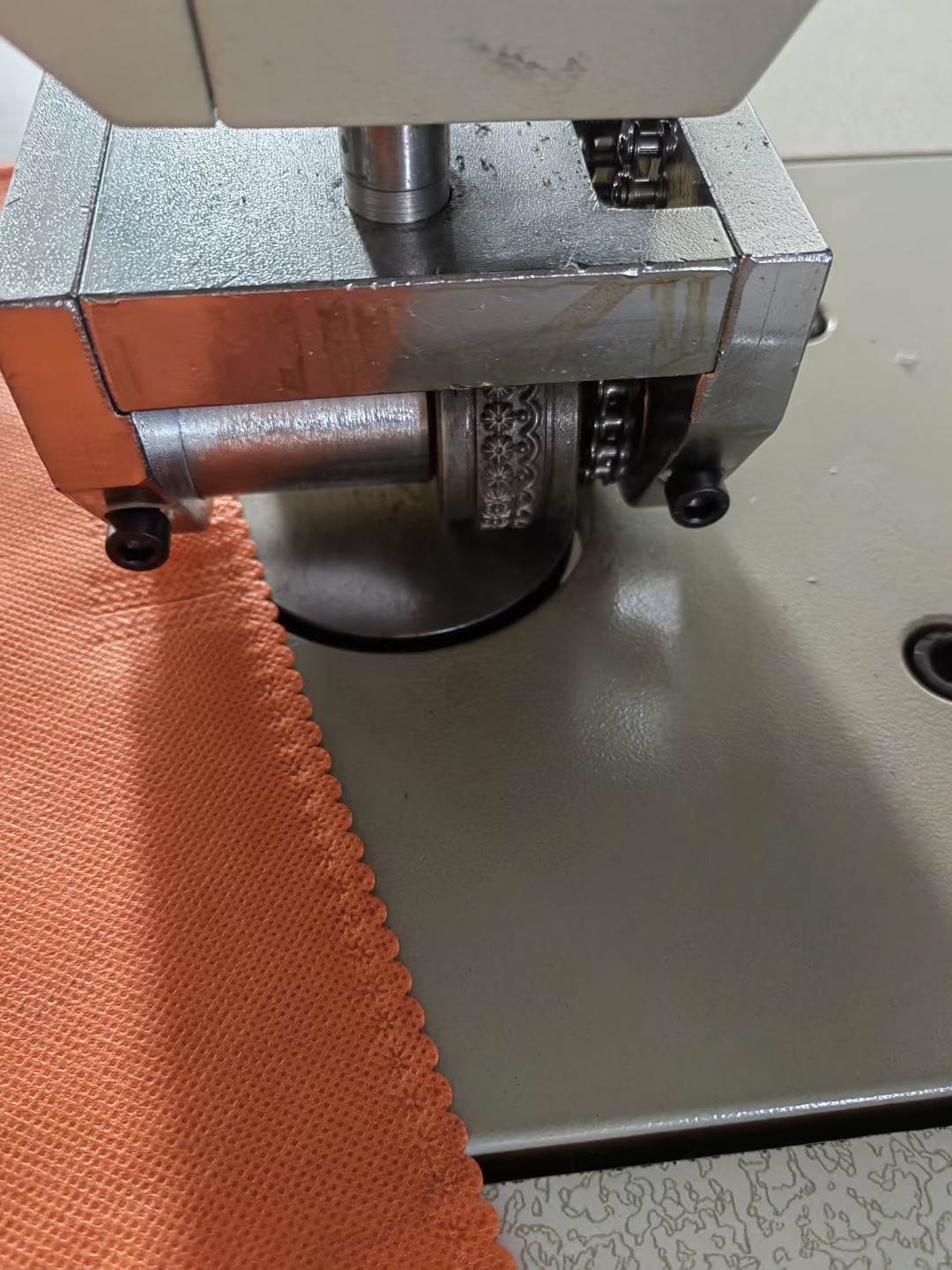

When using an ultrasonic lace machine, first place the fabric or material to be processed under the pressure roller, and then generate high-frequency vibration through an ultrasonic generator. These vibrations are transmitted to the fabric or material through pressure rollers, causing it to generate high temperatures in the welding area. Due to high temperature, the surface of fabric fibers or materials partially melt and merge with adjacent fibers or materials to form lace.
Specifications:
| Model | QR-60S/Q |
| Manufacturer | Hangzhou Qianrong Automation Equipment Co.,Ltd. |
| Max. Power (W) | 2500w |
| Frequency (KHZ) | 20khz |
| Speed (m/min) | 0-15 |
| Melting Width(mm) | <70 |
| Motor | 40w*1 |
| Type | Manual/pneumatic |
| Power Supply | AC 220±5V 50HZ / 120V 60HZ / 110V 60HZ |
Advantages:
1. Efficient and fast: The welding speed of ultrasonic lace machines is usually very fast, which can improve production efficiency.
2. No need for needle and thread: Compared with traditional sewing methods, ultrasonic lace machines do not require needle and thread, saving time and labor costs.
3. High strength: Ultrasonic welding can form a strong connection in the welding area, providing high strength and durability.
4. Wide application range: Ultrasonic lace machine can be used for various fabrics and materials, including textiles, plastics, films, etc.
Application areas: Ultrasonic lace machines are widely used in many industries, including clothing manufacturing, home textiles, automotive interiors, medical supplies, etc. It can be used to make collars, cuffs, edge decorations, printed patterns, etc
Common faults and fault elimination methods:
| Phenomena | Faults | Fault elimination methods |
|
No ultrasonic wave |
① Ultrasonic power switch is damaged; ② Ultrasonic power switch is not closed; ③ Transducer wire is disconnected; ④ Ultrasonic generator is damaged. |
① Replace the switch; ② Close the ultrasonic power switch; ③ Reconnect the transducer wire or tighten it; ④ Repair the ultrasonic generator. |
|
Upper press wheel has no action |
① Air supply is not connected; ② Solenoid valve is damaged; ③ Mechanical part is blocked; ④ Pressure regulating valve fails to regulate the pressure or is damaged. ⑤ Cylinder is damaged. |
① Connect air supply; ② Replace the solenoid valve; ③ Check mechanical part; ④ Regulate the pressure or replace the pressure regulating valve; ⑤ Replace the cylinder. |
|
Wheels do not rotate |
① Chain jackscrew is loose; ② Synchronous belt is broken or loose; ③ Main board has no output; ④ Driver is damaged. |
① Tighten the chain jackscrew; ② Replace or tighten the synchronous belt; ③ Replace main board; ④ Replace the driver. |
