Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W15 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Kit | Frequency: | 15Khz |
|---|---|---|---|
| Power: | 2600W | Voltage: | 220V |
| Width Of Welding Wheel: | 120*25mm | Net Weight Of Horn: | 11kgs |
| Materials Of Welding Horn: | Steel | Packgae: | Wooden Case |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||

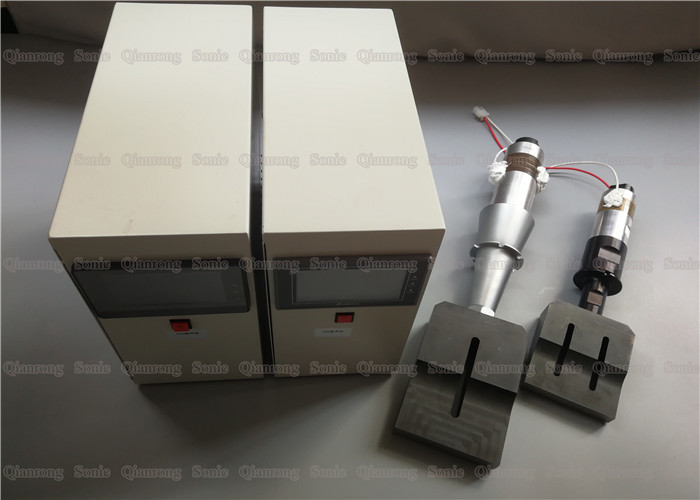

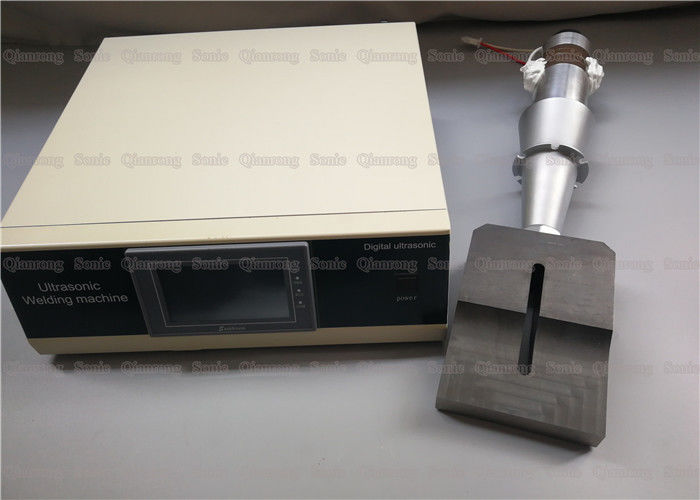

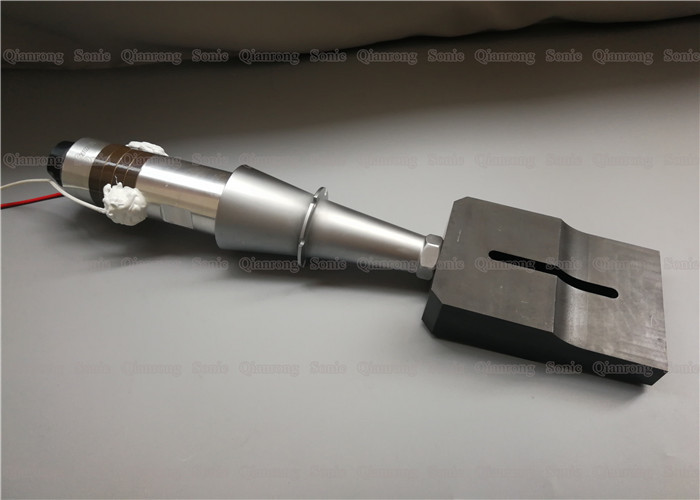

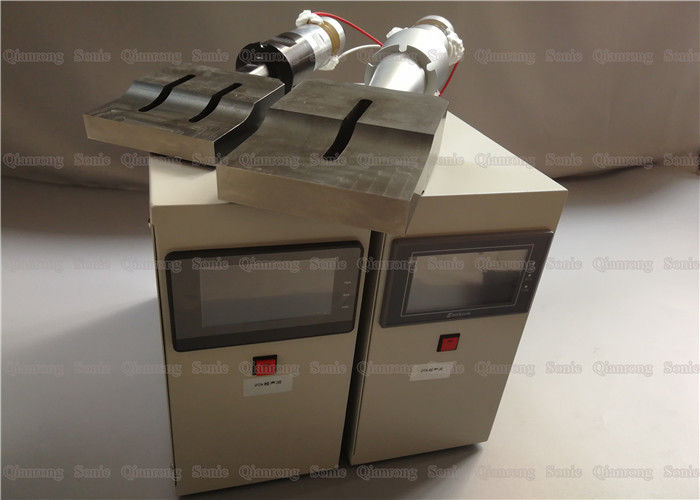

Ultrasonic Kit 15Khz 2600w Welding Parts for Plain Dental Mask Making Machine
Description:
Our company specializes in providing ultrasonic suture accessories, also known as seamless welding mask machine accessories. Mainly through the principle of ultrasound, the ultrasonic technology is successfully applied to mask products. The mask body is hot-pressed once through a special flower wheel, and the edges can be cut and melted. No break, no damage, no burrs, and then used in conjunction with the earband welding machine and other equipment to provide core ultrasonic technology for the production of mask machines.
Specifications:
| Frequency | 15Khz |
| Power | 2600w |
| Voltage | 220V |
| Generator | Digital generator |
| Material of Horn | Steel |
| Dimension of horn | 120*25mm |
| Net weight of horn | 11kgs |
| Dimension of generator | 250*150*300mm |
| Net weight of generator | 6kgs |
| Package | Wooden case |
| Application | Non woven mask welding |
Features:
1. High product flexibility and long life
2. Its power and frequency are in the form of analog pulse high-frequency oscillation, which can observe the changes of power and frequency at any time, providing an accurate basis for controlling and detecting ultrasonic waves.
3. Wide frequency tracking technology: When the output frequency of the ultrasonic generator does not match the frequency of the transducer, it will not only affect the experimental results, but even damage the equipment when the deviation is large. Therefore, we use frequency tracking technology to make the output frequency of the ultrasonic generator consistent with the frequency of the transducer, thereby ensuring the quality of the suture, and greatly extending the life of the ultrasonic generator and the transducer device.
4. Is an efficient suture device. It is mainly used for sewing, edging, fusing, embossing, etc. of synthetic fiber fabrics. The processed products have good water tightness, high production efficiency, no needle and thread accessories, smooth and no burrs on the fusing surface, and good feel.
Application:
Suitable for applications such as automobile clothing, invisible clothing, polyurethane film, motorcycle clothing, PP film, machinery equipment protective cover, medical equipment cover, PET film, disposable mask, protective clothing, surgical gown, isolation clothing , Lab coat, nurse cap, surgical cap, doctor cap, surgical bag, maternity bag, first aid kit, diaper, pillowcase, bed sheet, quilt cover, shoe cover, etc.
Ultrasonic Kit 15Khz 2600w Welding Parts for Plain Dental Mask Making Machine
