Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S20DL |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 2500W | Generator: | Digital Generator |
| Width Of Welding Wheel: | 22mm | Matched Transducer: | 5020-4D PZT4 |
| Generator Size: | 400*195*98mm | Application: | Fabric Materials |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||
Strong Reliable Welding Effect by Ultrasonic Rotary Wheel Sealing with 22mm Width Welding Line
Description:
Ultrasonic rotary vibration is used for sewing and cutting of fabrics. Qianrong Equipment is the first in China to develop a 20khz 2500w ultrasonic seamless sewing machine core. This is the core part of ultrasonic seamless sewing machine (also called ultrasonic radial sewing machine), our original product. It completely solves the inherent problem of the original ultrasonic longitudinal vibration technology, that is, the moving direction of the ultrasonic welding head is inconsistent with the moving direction of the cloth and is not synchronized. The accuracy of ultrasonic cloth stitching has been greatly improved, thus making it possible for the ultrasonic technology to be widely used in the field of garment stitching. Ultrasonic seamless sewing has the characteristics of fast welding speed, high strength, beautiful welding seam, good sealing performance, low energy consumption, and simple operation. It is the development direction of sewing machines.
Specifications:
| Item No | QR-S20DL |
| Power | 2500W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 22mm |
| Matched Transducer | 5020-4D PZT4 |
| Generator size | 400*195*98mm |
Advantages:
1. High stability: The welding wheel and pressure wheel rotate completely synchronously during ultrasonic seamless stitching, there is no difference in speed and angle, and it will not cause stretching, distortion or deformation of the fabric, which is extremely accurate. Thanks to the hot-melt effect, there is no need to use needle thread, the product is more waterproof, lighter and easier to fold.
2. Welding and cutting synchronization: Ultrasonic seamless stitching equipment is not only suitable for continuous stitching, but also can cut textiles while welding, and realize automatic edge banding.
3. No thermal radiation: The energy penetrates the material layer for welding during ultrasonic stitching, and there is no thermal radiation. During continuous stitching, heat will not be transferred to the product, which is particularly beneficial for the packaging of heat-sensitive products.
4. Controllable welding seam: The cloth is pulled by the welding wheel and pressure roller, passing through it, and the cloth is welded by ultrasonic waves. By changing the pressure roller, the welding seam size and embossing can be changed.
5. Wide range of applications: All thermoplastic (softened after heating) fabrics, special tapes, and films can be welded using ultrasonic seamless stitching equipment, and the rollers are made of hardened steel to extend the service life.

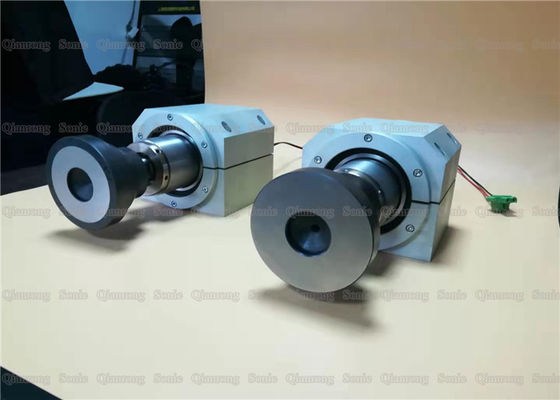

Strong Reliable Welding Effect by Ultrasonic Rotary Wheel Sealing with 22mm Width Welding Line
