| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S35D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 35KHZ |
|---|---|---|---|
| Power: | 1000W | Generator: | Digital Generator |
| Width Of Welding Wheel: | 11.5mm | Matched Transducer: | 3535-4D PZT4 |
| Generator Size: | 250*200*430mm | Application: | Fabric Materials |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||

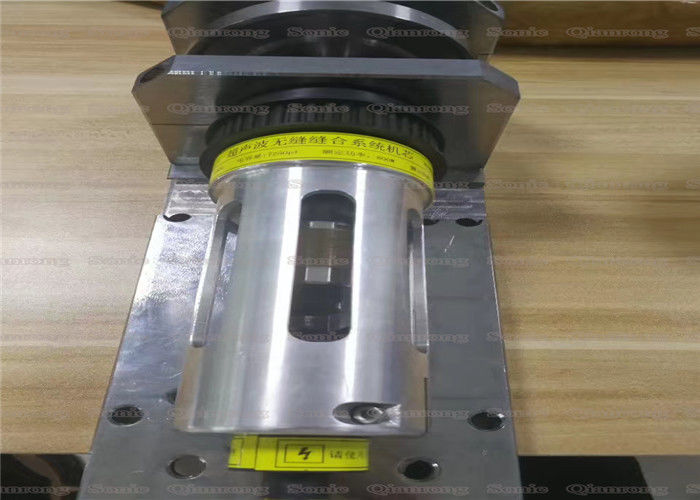

Customized 35Khz Rotary Ultrasonic unit for Sealing and Cutting Bust Fabric Product
Description:
Ultrasonic rotary vibration is used for fabric stitching and cutting, and is a newly developed technological achievement in the world. Hangzhou Qianrong Automation Equipment closely tracks the new research results of foreign countries and develops ultrasonic seamless sewing movements. This is the core component of an ultrasonic seamless sewing machine (also called an ultrasonic radial sewing machine). It completely solves the inherent problem of the original ultrasonic longitudinal vibration technology, that is, the moving direction of the ultrasonic welding head is inconsistent with the moving direction of the cloth, and is not synchronized. The precision of ultrasonic cloth stitching has been greatly improved, making it possible to apply ultrasonic technology widely in the field of garment stitching. Ultrasonic seamless sewing has the characteristics of fast welding speed, high strength, beautiful weld seam, good sealing performance, low energy consumption and simple operation. It is the development direction of sewing machine.
The diameter of rotary wheel can be customized according to customer's requirements.
Specifications:
| Item No | QR-S35D |
| Power | 1000W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 11.5mm |
| Matched Transducer | 3535-4D PZT4 |
| Generator size | 250*200*430mm |
Advantages:
1. High stability: When the ultrasonic is seamlessly stitched, the rotation of the welding wheel and the pressure roller is completely synchronized, and there is no difference in speed and angle, which will not cause stretching, twisting or deformation of the cloth, and the precision is extremely high. Thanks to the hot melt effect, no needle thread is required, the product is more waterproof, lighter in weight and easier to fold.
2. Welding and cutting synchronization: Ultrasonic seamless sewing equipment is not only suitable for continuous sewing, but also for cutting textiles while welding, and achieving automatic edge sealing.
3. No heat radiation: When the ultrasonic is sutured, the energy penetrates through the material layer for welding without heat radiation. In the continuous stitching process, heat is not transmitted to the product, which is particularly advantageous for the packaging of the heat sensitive product.
4. Weldable seam control: The cloth is passed between the welding wheel and the pressure roller, and the fabric is welded by ultrasonic wave. The pressure roller can be changed to change the weld size and embossing, which is more flexible and convenient.
5. Wide range of applications: All thermoplastic (softened and softened) fabrics, special tapes and films can be welded using ultrasonic seamless stitching equipment. The rollers are made of hardened steel to extend the service life.
