Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S35D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 35KHZ |
|---|---|---|---|
| Power: | 1000W | Generator: | Digital Generator |
| Width Of Welding Wheel: | 11.5mm | Matched Transducer: | 3535-4D PZT4 |
| Generator Size: | 250*200*430mm | Application: | Fabric Materials |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||
35K Ultrasonic Seamless Suturing System with Disc-shaped Welding Head and Dedicated CNC Power Supply
Description:

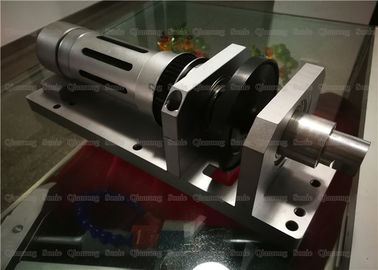

The ultrasonic seamless suturing system is composed of a 35K ultrasonic transducer, a horn (fixed action), a disc-shaped welding head and a dedicated CNC power supply. The ultrasonic numerical control power source converts the commercial power into 35K high-frequency high-voltage alternating current and supplies it to the ultrasonic transducer. The ultrasonic transducer converts electrical energy into mechanical energy (ultrasonic waves), and the transducer generates amplitude when it is telescopically moved in the longitudinal direction, and then transmits it to the disc-shaped welding head through the horn. Thus, the disc-type welding head is welded, equipped with a frame, a pressure roller and an auxiliary structure and control part, which is a complete ultrasonic cutting sewing machine.
Ultrasonic seamless suturing system can suture most thermoplastic fabrics. Compared with ordinary needle stitching, ultrasonic stitching has the characteristics of no needle thread, high stitching strength, good sealing and fast sewing speed. And the ultrasonic seamless suturing system also completely solves the problem that the moving direction of the ultrasonic welding head is inconsistent with the moving direction of the cloth, and the problem of non-synchronization will replace the ordinary sewing machine to a large extent.
Specifications:
| Item No | QR-S35D |
| Power | 1000W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 11.5mm |
| Matched Transducer | 3535-4D PZT4 |
| Generator size | 250*200*430mm |
Advantages:
1. High stability: When the ultrasonic is seamlessly stitched, the rotation of the welding wheel and the pressure roller is completely synchronized, and there is no difference in speed and angle, which will not cause stretching, twisting or deformation of the cloth, and the precision is extremely high. Thanks to the hot melt effect, no needle thread is required, the product is more waterproof, lighter in weight and easier to fold.
2. Welding and cutting synchronization: Ultrasonic seamless sewing equipment is not only suitable for continuous sewing, but also for cutting textiles while welding, and achieving automatic edge sealing.
3. No heat radiation: When the ultrasonic is sutured, the energy penetrates through the material layer for welding without heat radiation. In the continuous stitching process, heat is not transmitted to the product, which is particularly advantageous for the packaging of the heat sensitive product.
4. Weldable seam control: The cloth is passed between the welding wheel and the pressure roller, and the fabric is welded by ultrasonic wave. The pressure roller can be changed to change the weld size and embossing, which is more flexible and convenient.
5. Wide range of applications: All thermoplastic (softened and softened) fabrics, special tapes and films can be welded using ultrasonic seamless stitching equipment. The rollers are made of hardened steel to extend the service life.
35K Ultrasonic Seamless Suturing System with Disc-shaped Welding Head and Dedicated CNC Power Supply
