focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSD-2010-GL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Experimental Liquid Ultrasonic Processing | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 1000w | Input Voltage: | 220V±10%，50/60Hz |
| Emitter Materials: | Titanium Alloy | Emitter Type: | Focus Type |
| Durable Temperature: | 0-60℃ | Application: | Ultrasonic Sonochemistry |
| Highlight: | Laboratory Ultrasonic Sonochemistry,Customized Ultrasonic Sonochemistry,Water Cooled Ultrasonic Sonochemistry |
||
Ultrasonic Customized Water-Cooled Control Laboratory Sonochemistry
Description:

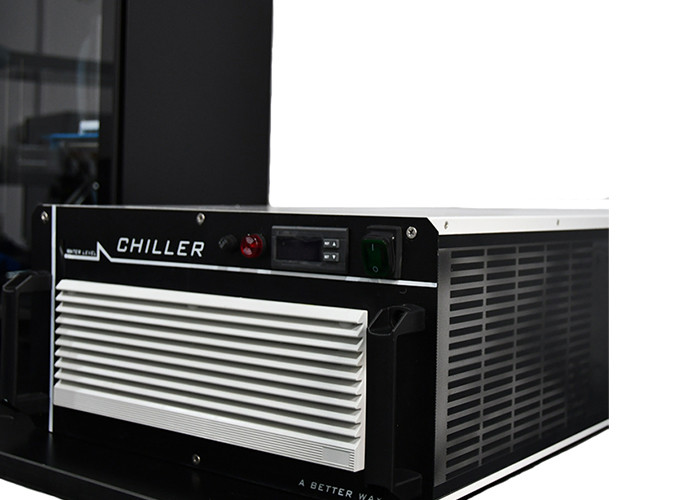

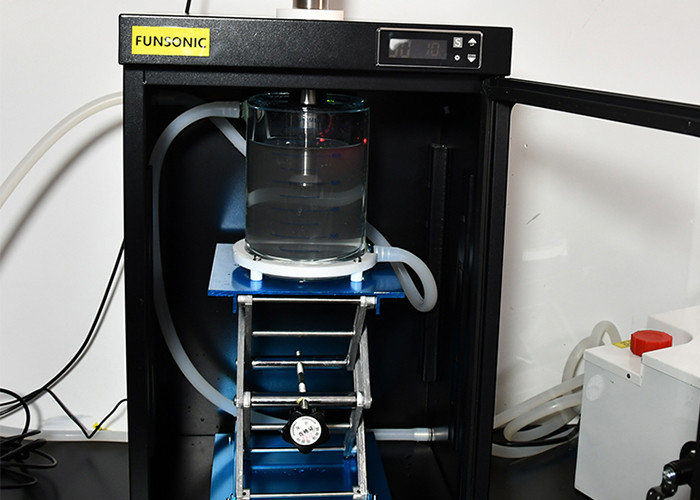

Ultrasonic customized water-cooled control laboratory sonochemistry is a research and application of chemical reactions using ultrasonic technology customized according to customer requirements. By exciting chemical reactions with ultrasound, the reaction rate is promoted, and an efficient water cooling system developed by FUNSONIC is equipped to control the temperature of the solution and improve and optimize the ultrasound effect.
Parameters:
| Model | FSD-2010-GL |
| Name | 20Khz Experimental Liquid Ultrasonic Processing |
| Frequency | 20Khz |
| Power | 1000w |
| Input Voltage | 220V±10%,50/60Hz |
| Emitter Materials | Titanium Alloy |
| Emitter Type | Focus Type |
| Durable Temperature | 0-80℃ |

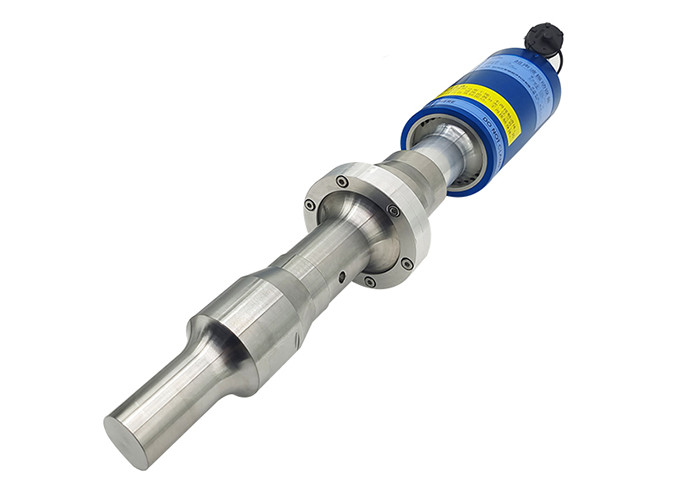

| Component Accessories | Ultrasonic Generator, Ultrasonic Vibration System, Ultrasonic Horn |
Application:
1. Cavitation effect
Cavitation phenomenon: When ultrasonic waves pass through a liquid, rapid pressure changes occur, leading to the formation of tiny bubbles in the liquid. These bubbles rapidly compress under high pressure, then rapidly expand under low pressure, and eventually burst.
High temperature and high pressure environment: The rupture of bubbles releases a large amount of energy, creating localized high temperature and high pressure environments. This extreme condition can trigger chemical reactions in the reactants.
2. Increase reaction rate
Enhanced molecular collision: The vibration of ultrasound can increase the frequency of motion between molecules, increase their collision probability, and thus accelerate the reaction rate.
Reduce reaction energy barrier: The energy of sound waves can lower the activation energy of certain reactions, making them easier to carry out.
3. Promote material mixing
Uniform dispersion: Ultrasonic waves can promote the uniform dispersion of different components in the reaction mixture, avoiding precipitation and stratification, and improving reaction efficiency.
4. Generate free radicals
Free radical generation: Under the action of ultrasound, certain molecules may break and form free radicals, which can further participate in the reaction and promote chemical transformation.
5. Application Fields
Catalytic reaction: Sonochemistry can be applied in catalytic reactions to increase the activity of catalysts.
Synthesis of new materials: using sonochemical methods to synthesize nanomaterials or functional materials.
Environmental protection: Ultrasonic waves can be used for water treatment and waste degradation, promoting the decomposition of pollutants.

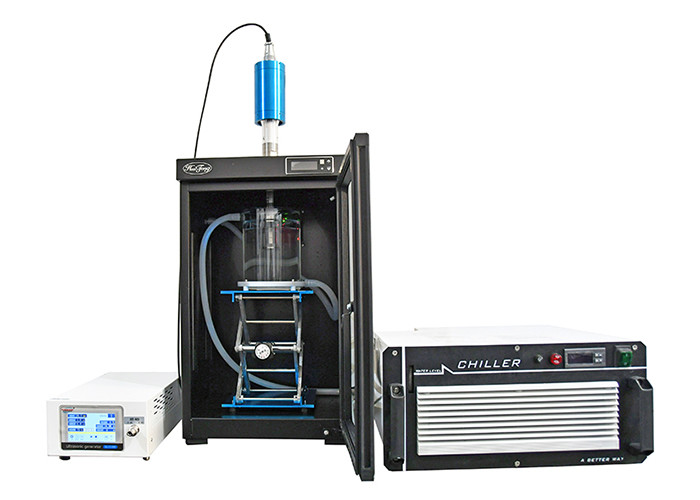

Ultrasonic Customized Water-Cooled Control Laboratory Sonochemistry
