Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSD-2005-GL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Experimental Liquid Ultrasonic Processing | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 500w | Input Voltage: | 220V±10%，50/60Hz |
| Emitter Materials: | Titanium Alloy | Emitter Type: | Focus Type |
| Durable Temperature: | 0-60℃ | Application: | Fields Such As Biochemistry And Molecular Biology |
| Highlight: | ultrasonic liquid degassing and crushing device,500w ultrasonic sonochemistry equipment,20khz ultrasonic sonochemistry equipment |
||

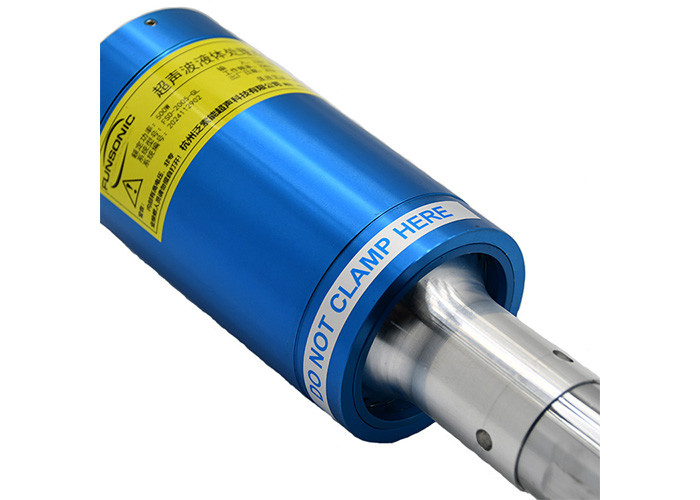

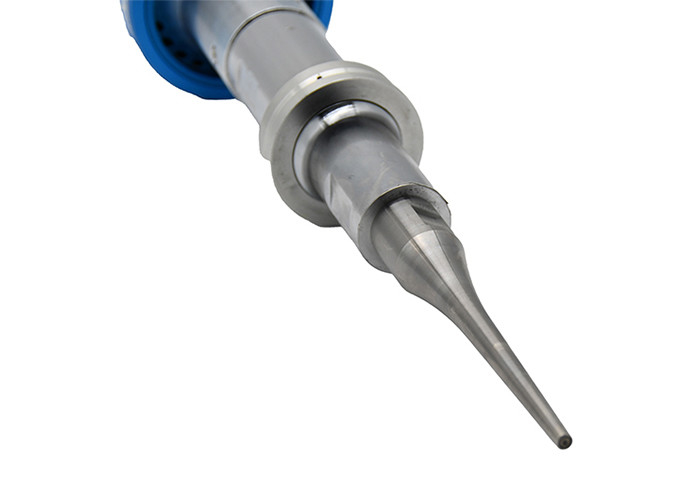

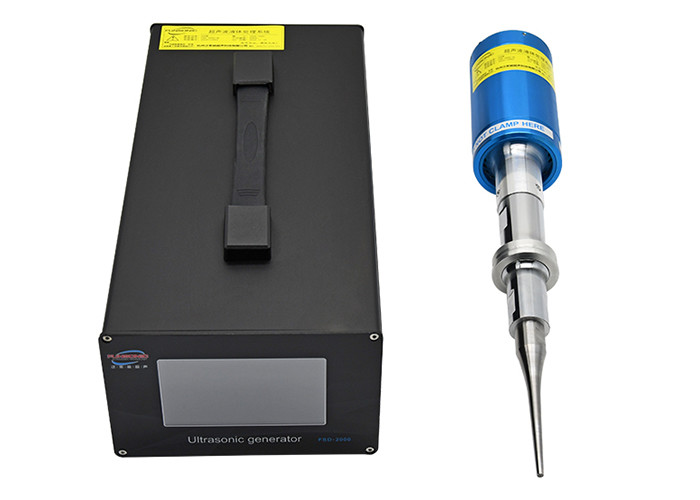

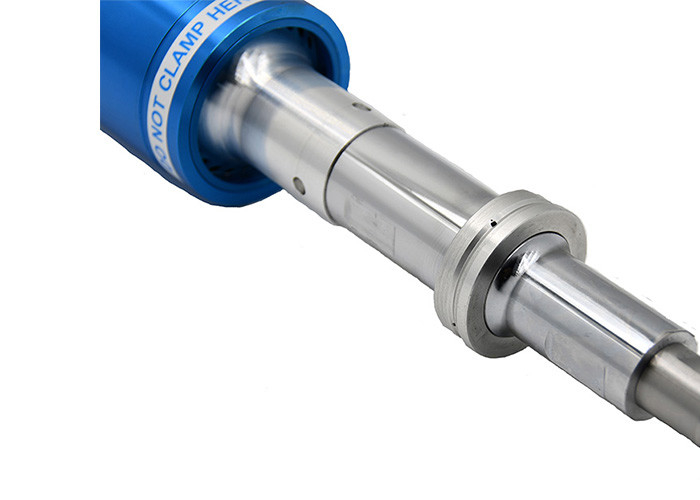

Ultrasonic Liquid Degassing And Crushing Device
Description:
Ultrasonic liquid degassing and crushing device is a device that uses ultrasonic technology to degas and crush liquid samples, and is widely used in chemical, physical, and biological experiments. The ultrasonic liquid degassing and crushing device uses high-power ultrasonic oscillation to provide sufficient energy, quickly remove bubbles and dissolved gases from the liquid, improve experimental accuracy, and homogenize the sample.
Parameters:
| Model | FSD-2005-GL |
| Name | 20Khz Ultrasonic Experimental Liquid Ultrasonic Processing |
| Frequency | 20Khz |
| Power | 500w |
| Input Voltage | 220V±10%,50/60Hz |
| Emitter Materials | Titanium Alloy |
| Emitter Type | Focus Type |
| Durable Temperature | 0-80℃ |
| Component Accessories | Ultrasonic Generator, Ultrasonic Vibration System, Ultrasonic Horn |
Q&A :
Q: What is ultrasonic amplitude?
A: The distance of one up and down movement is called amplitude. Adjustable amplitude. Each tool head has a maximum amplitude value. For example, in a 1/2 "diameter tool head set to 100%, the tool head will reach an amplitude of approximately 115 μ m. When set to 50%, the amplitude is approximately 57 μ m. Please note that this value is an approximate value and not completely linear.
Q: What is the relationship between ultrasonic amplitude and intensity?
A: There is a direct relationship between amplitude and intensity. If you operate under low amplitude settings, you will be provided with low-intensity ultrasound treatment. If you operate under high amplitude settings, you will receive high-intensity ultrasound treatment. In order to reproduce the results, the amplitude setting, temperature, viscosity, and volume of the sample need to be consistent parameters. When attempting to reproduce the results of ultrasonic treatment, amplitude rather than power is the most critical factor.
Q: What is the relationship between ultrasonic power and amplitude/intensity?
A: Power has a variable relationship with amplitude/intensity. For example, compared to viscous samples such as honey, ultrasonic treatment of water at a 50% setting requires less power. For these two samples, the amplitude/intensity is the same, but the power/wattage will be different because viscous samples require more watts to drive the tool head. Adhesive samples will impose heavier loads on the tool pair, so their system must work harder to vibrate up and down with the same intensity. The small fluctuations in wattage displayed during ultrasonic treatment are normal.

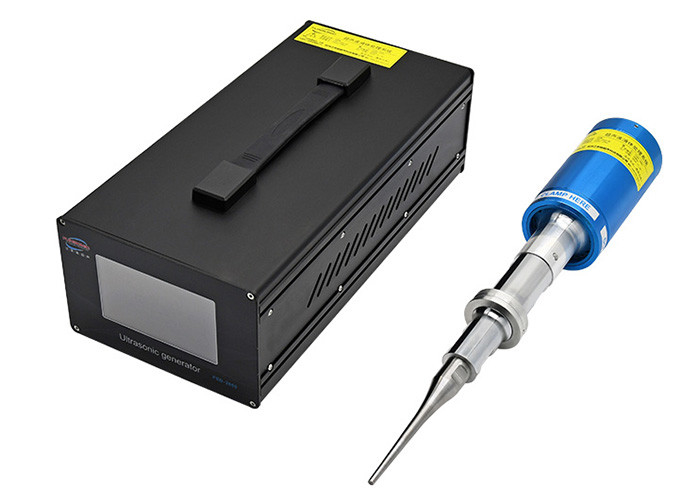

Ultrasonic Liquid Degassing And Crushing Device
