| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | FSSW-3508-Ti |
| Minimum Order Quantity: | 1 Unit |
| Price: | Negotation |
| Packaging Details: | Packed by Carton |
| Delivery Time: | 5 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit/month |
| Model: | FSSW-3508-Ti | Name: | 35Khz Ultrasonic Rotary Welding Machine |
|---|---|---|---|
| Frequency: | 35Khz | Power: | 800w |
| Input Voltage: | 220V±10%，50/60Hz | Working Amplitude: | 18-28μm |
| Materials Of Horn: | Titanium Alloy Or Special Steel | Application: | Fabric Cutting, Lace Cutting, Clothing Stitching, Gluing, Bead Inlay |
| Highlight: | Ultrasonic Thermoplastic Fabric Seamless Sewing System,Ultrasonic Thermoplastic Seamless Sewing System,Ultrasonic Fabric Seamless Sewing System |
||
Ultrasonic Thermoplastic Fabric Seamless Sewing System
Description:
Ultrasonic seamless sewing system can stitch most thermoplastic fabrics. Compared with ordinary needle sutures, the ultrasonic suture has the characteristics of no needle suture, high suture strength, good sealing performance, and fast suture speed. And the ultrasonic seamless stitching system also completely solves the problem of inconsistency between the direction of motion of the ultrasonic welding head and the direction of movement of the cloth. It will replace the ordinary sewing machine to a large extent.

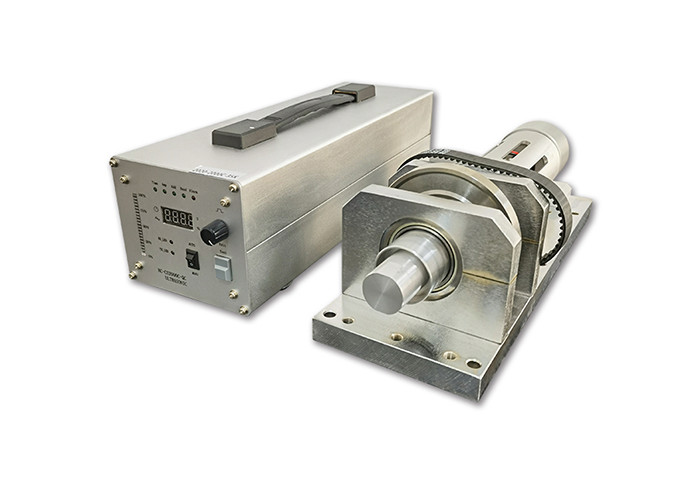

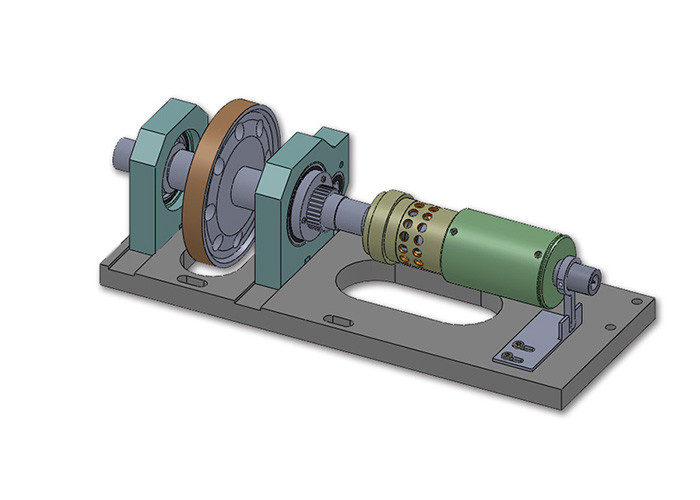

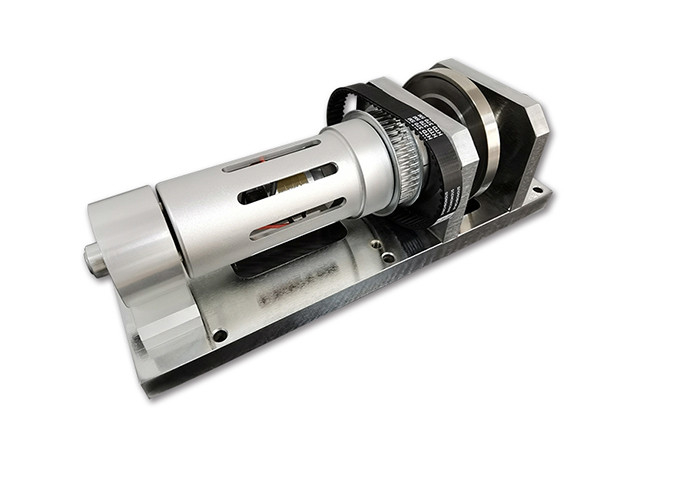

Ultrasonic seamless sewing system is composed of 35k ultrasonic transducer, horn (fixed function), disc type welding head, and supporting particular numerical control power supply combination. The ultrasonic numerical control power supply converts the mains electricity into 35k high frequency, and high voltage alternating current and supplies it to the ultrasonic transducer. The ultrasonic transducer converts electrical energy into mechanical energy (ultrasound). The transducer generates amplitude when it stretches in the longitudinal direction, transmitted to the disc-shaped welding head through the horn. The disc-shaped welding head is welded, equipped with the frame, the pressing wheel, and the auxiliary structure and control parts; it is a complete ultrasonic cutting sewing machine.
Parameters:
| Model | FSSW-3508-Ti |
| Name |
35Khz Ultrasonic Rotary Welding Machine
|
| Frequency | 35Khz |
| Power | 800w |
| Input Voltage | 220V±10%,50/60Hz |
| Welding Amplitude | 18-28μm |
| Materials of horn | Titanium Alloy or Special Steel |
| Application | Fabric cutting, lace cutting, clothing stitching, gluing, bead inlay |
Advantage:
1. Get clean process and seam without any consumables or additives in the seam.
2. Achieve molecular bonds at the seam no holes from sewing, or weak strands.
3. Eliminate the cost of adhesive and the glue delivery system and get upto 5X faster cycle rate.
4. Reduce maintenance downtime by eliminating glue applicator and spray nozzles from the process.
5. With a wide array of ultrasonic bonding technologies every part of a face mask can be attached using ultrasonic joining.
