Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2015-X |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Ultrasonic Superconductors Indium Coating | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 1500w | Input Voltage: | 220V±10%，50/60Hz |
| Temperature Range: | 200-400℃ | Application: | Tin, Indium, Silver, Copper, Nickel, Aluminum Wires. |
| Highlight: | Ultrasonic Superconducting Wire,Indium Coated Superconducting Wire,ultrasonic iindium coated superconducting wire technology |
||

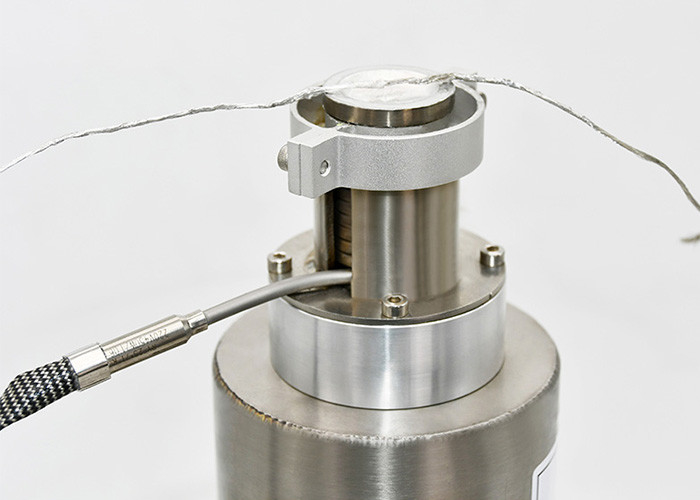

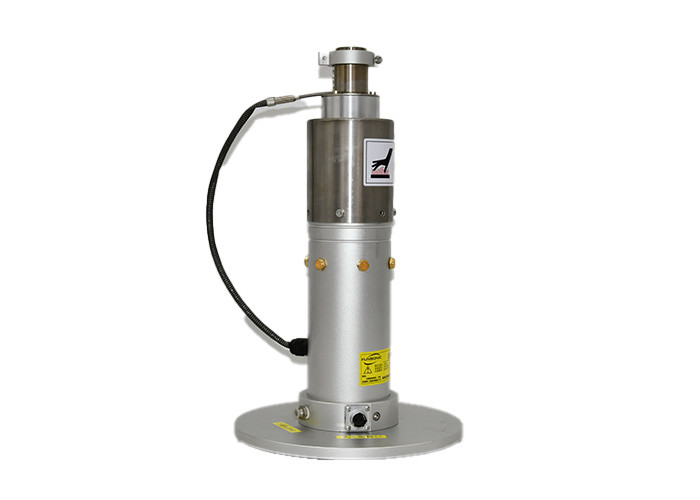

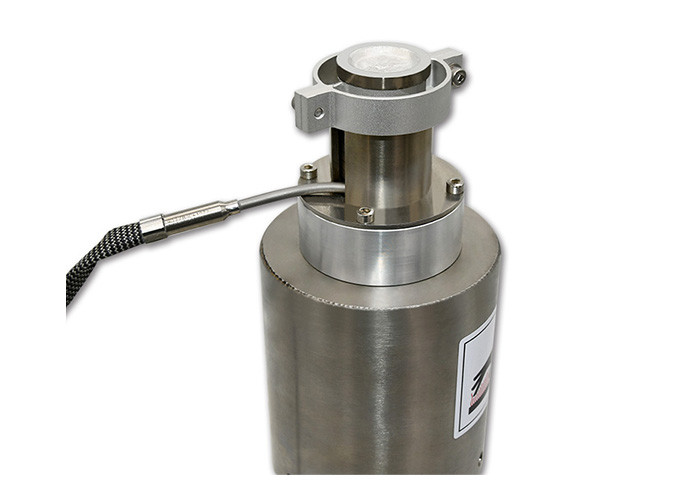

Ultrasonic Iindium Coated Superconducting Wire Technology
Description:
The ultrasonic wire indium coating machine generates high-frequency ultrasonic vibration. Then it is transferred to the coating liquid through the coating device. The indium material in the coating solution will be uniformly distributed and attached to the surface of the superconductor through the coating device under the action of ultrasonic vibration, forming a uniform coating.
Parameters:
| Model | FSY-2015-X |
| Name | 20Khz Ultrasonic Superconductors Indium Coating |
| Frequency | 20Khz |
| Power | 1500w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-20μm |
| Input Voltage | 220V±10%,50/60Hz, 8A |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
Components:
1. Clamping system: This is the part used to clamp superconductors. It usually has adjustable clamping force and the ability to adapt to different diameters to ensure that the superconductor is firmly fixed in the coating position.
2. Coating fluid supply system: This system is used to provide coating fluid containing indium materials. The indium material in the coating solution can be indium powder or indium compound, and its viscosity and concentration can be adjusted as needed. The coating liquid supply system usually includes coating liquid storage containers, pumps, and coating liquid delivery pipelines.
3. Ultrasonic vibration system: This is the core part of the ultrasonic wire indium coating machine. It promotes the dispersion and coating process of indium material in the coating solution through ultrasonic vibration. The ultrasonic vibration system usually consists of an ultrasonic generator and a sensor, which generates high-frequency ultrasonic vibration, and the sensor transmits the vibration to the coating liquid and the surface of the superconductor.
4. Coating control system: This system is used to control various parameters during the coating process. It can adjust the frequency, amplitude, and coating speed of ultrasonic vibration to achieve coating effects under different requirements. The coating control system usually has a user interface and operation panel for operators to set and monitor parameters.

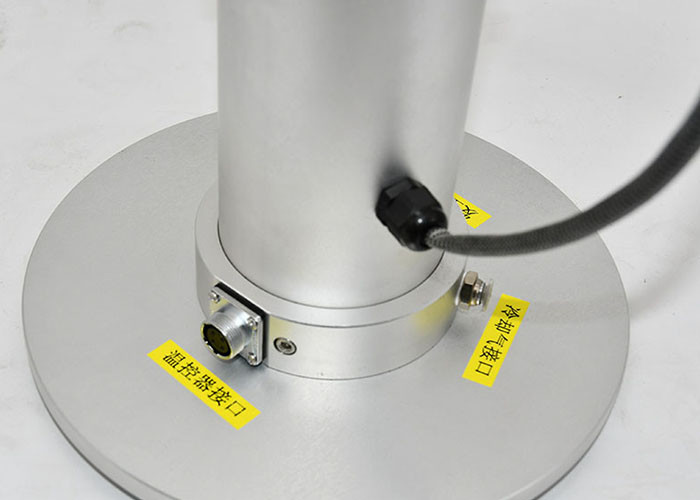

5. Cooling system (optional): For certain applications, the ultrasonic superconducting wire indium coating machine may need to be equipped with a cooling system to keep the superconducting wire in the appropriate temperature range. The cooling system can reduce the temperature of superconductors by circulating cooling media to ensure the superconducting performance during the coating process.
Manufacturing Superconducting Magnets by Ultrasonic Indium Coating 20Khz 1500w
