Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSC-CF20-255 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Ultrasonic Food Cutter | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 2000w | Width Of Blade: | 255mm Or Customized |
| Cutter Materials: | Alloy Steel Or Titanium Alloy | Application: | Rubber, Plastic Cutter |
| Highlight: | 20Khz ultrasonic cake bread cutting machine,Titanium Blade ultrasonic cutting machine,255mm ultrasonic cake bread cutting machine |
||

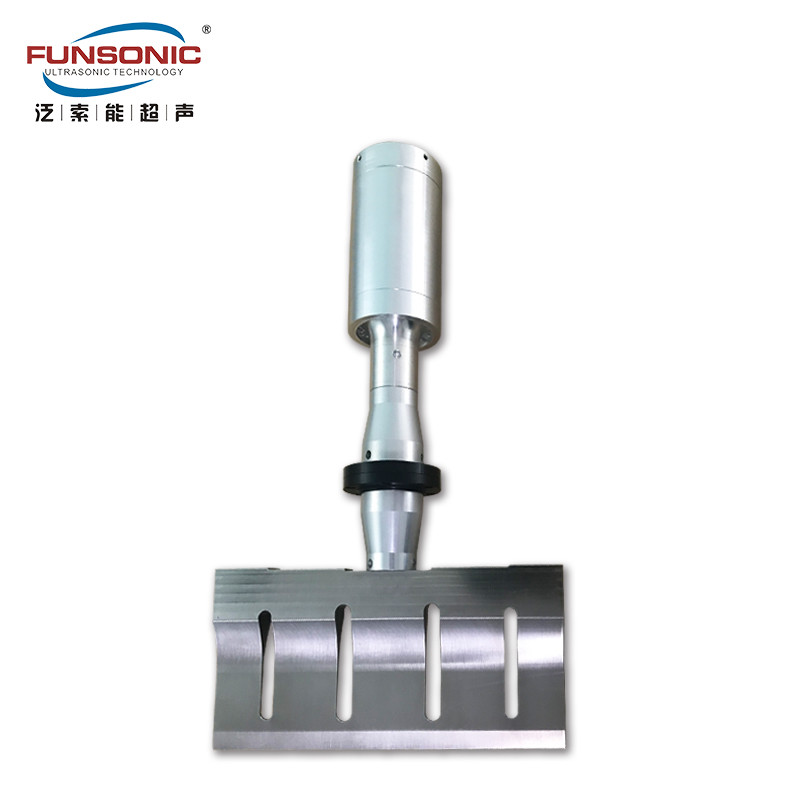

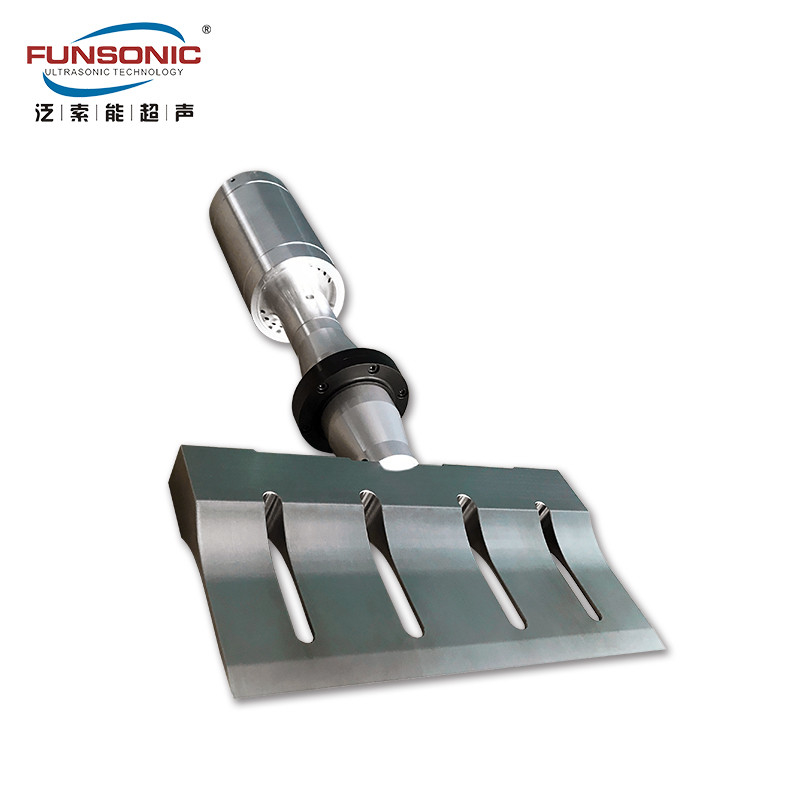

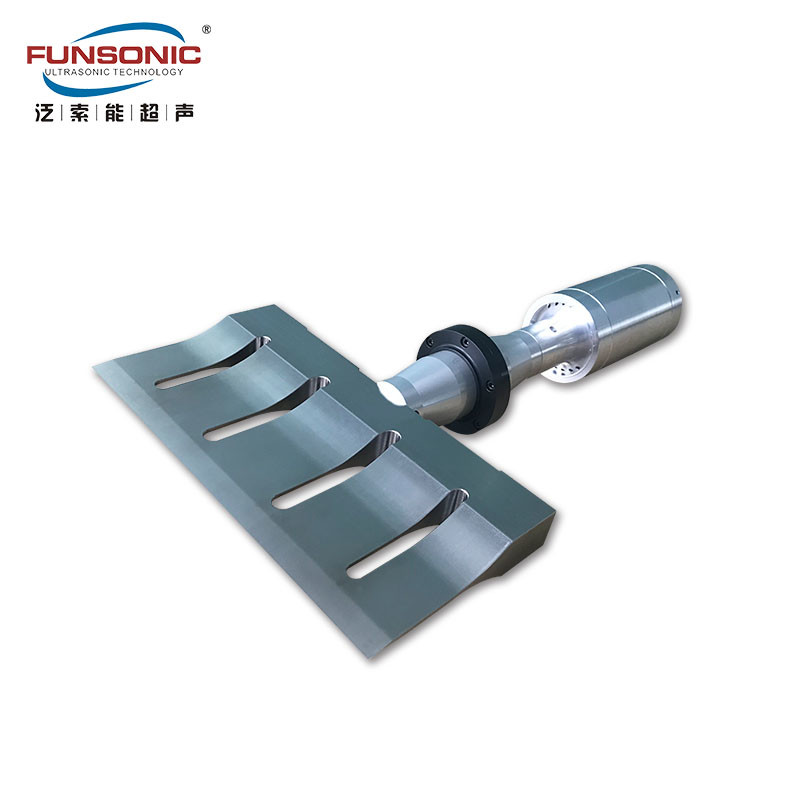

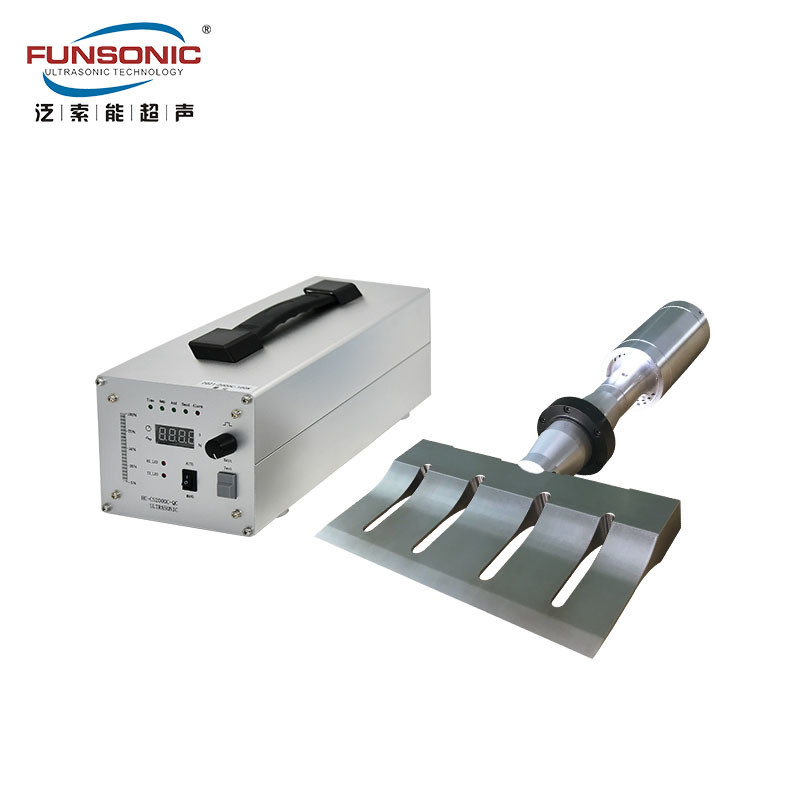

20Khz Ultrasonic Cake Bread Cutting Machine with 255mm Titanium Blade Customized Knife
Description:
The principle of ultrasonic food cutting knife is to convert 50/60Hz current into 20, 30, or 40kHz electrical energy through an ultrasonic generator (ultrasonic power supply). The converted high-frequency electrical energy is converted back into mechanical vibration of the same frequency through a transducer, and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulation devices that can change the amplitude. Ultrasonic food cutting knife with a length direction of 10-70 μ The amplitude of m is repeated 40000 times per second (40 kHz) to vibrate (the vibration of the blade is microscopic and difficult to see with the naked eye).
Parameters:
| Model | FSC-CF20-255 |
| Name |
20Khz Ultrasonic Food Cutter
|
| Frequency | 20Khz |
| Power | 1000w |
| Input Voltage | 220V±10%,50/60Hz |
| Cutter Materials | Alloy Steel |
| Width of Blade | 255mm(can be customized) |
| Application | Food Cutter |
Advantages:
1. Food non stick knife: The ultrasonic cutting equipment has an automatic cleaning function, which can shorten the cleaning time by 70% to 90% compared to traditional cutting systems.
(With 20000 high-speed micro vibrations per second, the blades will not be contaminated with food, which can minimize the downtime of washing the blades when using other existing automatic cutting equipment.)
2. By vibrating ultrasonic waves 20000 times per second, the friction between the food and the blade is reduced to a minimum, thereby improving the production efficiency of cutting operations.
3. Ensure that the incision is neat, smooth, and not deformed, enhancing the appearance and value of the product. (Provide a good cutting surface).
4. Reduce the amount of food debris generated during cutting and reduce downtime for cleaning.
5. The blade body is made of titanium alloy material, which is durable and long-lasting.
During the cutting process, food does not need to be stopped, and continuous cutting is maintained to further improve production efficiency.
7. It can easily cut pastry materials or products that are difficult to cut using ordinary cutting methods, and the cutting surface is neat and smooth, making it more widely used.
8. Non polluting: When cutting, the temperature of the blade is below 50 ℃, which will not produce smoke and odor, eliminating the risk of injury and fire during cutting.
9. Easy operation: Connect the cutting knife to the ultrasonic generator, connect the generator to 220V mains power, turn on the switch to start cutting, support handheld cutting, and equipped with an air-cooled interface.
10. Small size, does not require a large installation area, and installation does not require special equipment.
20Khz Ultrasonic Cake Bread Cutting Machine with 255mm Titanium Blade Customized Knife
