Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSH-2020-50TI |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Ultrasonic Aluminum Melt Equipment | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 2000w | Input Voltage: | 220V±10%，50/60Hz |
| Temperature Range: | 200-800℃ | System Protection: | High Temperature Protection |
| Highlight: | De-Impurities Strengthening Ultrasonic Melt Treatment,20Khz Aluminum Melt Equipment,Ultrasonic Vibration Melt Equipment |
||

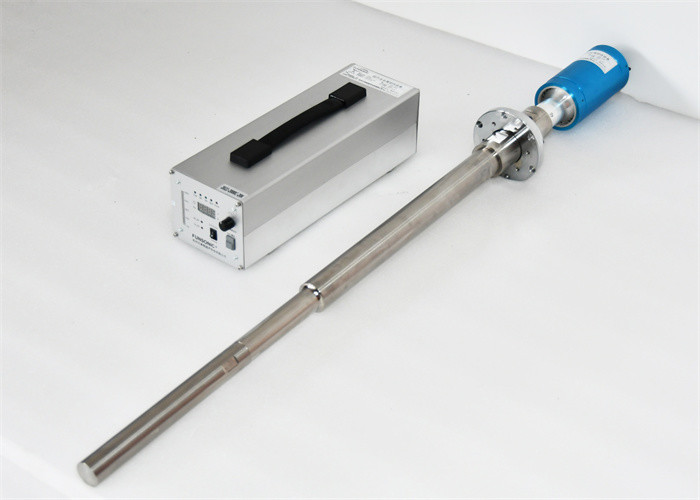

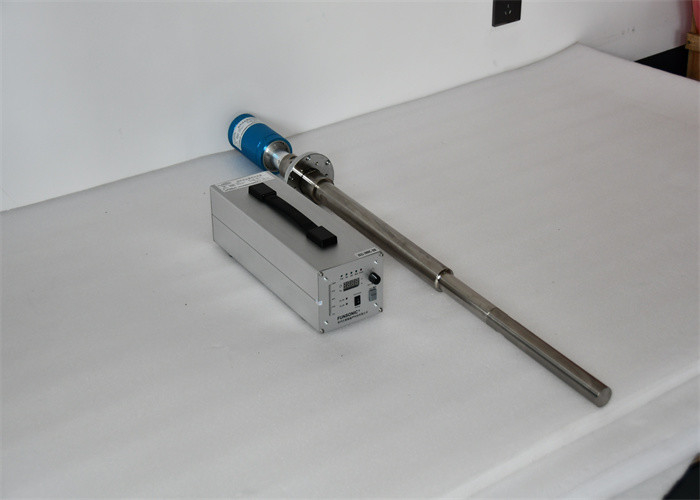

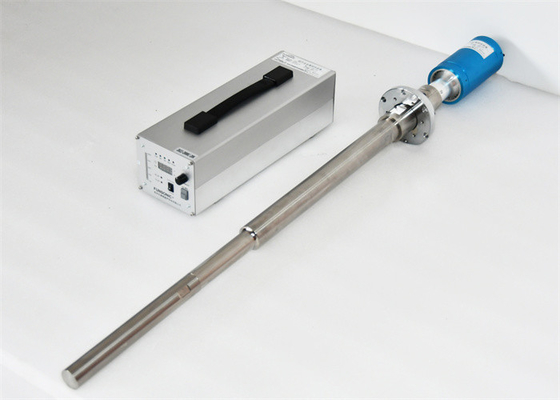

Ultrasonic Vibration De-impurities Strengthening Metal Solution 20Khz Aluminum Melt Equipment
Description:
Ultrasonic metal aluminum melt processing equipment, also known as ultrasonic metal crystallization equipment, is a high-power ultrasonic equipment specifically used in the metal casting industry. The ultrasonic melt treatment equipment is mainly used for the crystallization process of molten metal, which can significantly refine metal grains, uniform alloy composition, accelerate bubble movement, and significantly improve the strength and hardness of metal materials.
The ultrasonic metal melt treatment equipment does not change the existing production equipment and process flow, and is easy to install and operate. Ultrasonic metal superaluminum melt is mainly used in ultrasonic melt defoaming, ultrasonic crystallization, ultrasonic cavitation, ultrasonic casting, ultrasonic solidification structure, ultrasonic metal continuous casting, and other aspects.
Parameters:
| Model | FSH-2020-50TI |
| Name |
20Khz Ultrasonic Aluminum Melt Equipment
|
| Frequency | 20Khz |
| Power | 2000w |
| Input Voltage | 220V±10%,50/60Hz |
| Tool Head Materials | Titanium Alloy |
| Temperature Range | 200-800℃ |
| System Protection | High Temperature Protection |
Functions:
1. Refining metal grains, unifying alloy composition, significantly improving the strength and fatigue resistance of casting materials, and enhancing the comprehensive performance of materials;
2. The application of ultrasound in steel metallurgy;
3. Ultrasonic removal of inclusions;
4. It is very difficult for inclusions in metal solutions to float up, and only when they aggregate can it be easier to float up. Adding ultrasound to the treatment of inclusions in the solution can successfully layer and aggregate the powder;
5. Ultrasonic degassing, when ultrasonic waves are introduced into the molten metal, cavitation occurs. This is due to the rupture of the continuity of the liquid phase, which leads to the formation of voids. The gas dissolved in the liquid metal then concentrates in other areas. Due to the high-frequency vibration of ultrasonic waves, the core of the bubble continues to grow until it can reach the size required for smooth discharge from the molten metal.
Ultrasonic Vibration De-impurities Strengthening Metal Solution 20Khz Aluminum Melt Equipment
